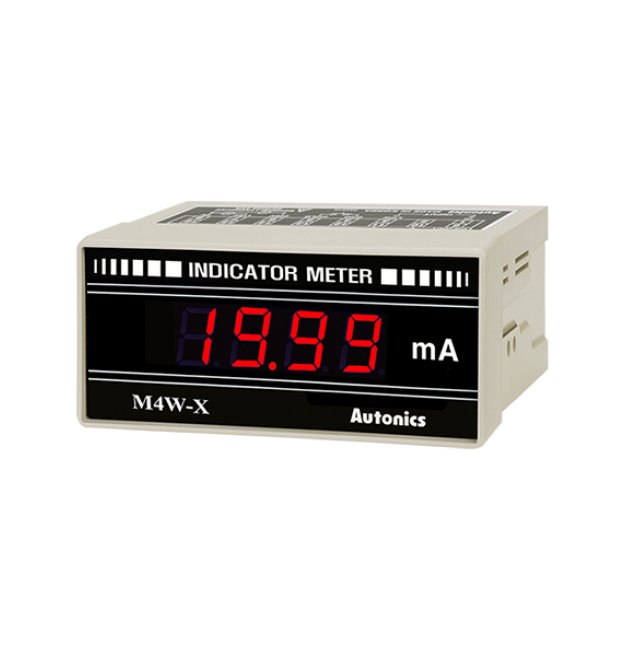

Autonics USA 3-1/2-Digit LED Digital Panel Meter
Autonics USA 3-1/2-Digit LED Digital Panel Meter
SKU:PRO-743e10
Accurate Autonics USA 3-1/2-Digit LED Digital Panel Meter for precise industrial measurements.
Regular price
$92.95
Regular price
Sale price
$92.95
Unit price
per
Initiate Order
Autonics USA 3-1/2-Digit LED Digital Panel Meter
$92.95
Quantity: 1
Claim Your Seller Account
Autonics USA 3-1/2-Digit LED Digital Panel Meter
$92.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA Digital Panel Meter is a high-precision instrument designed for accurate digital scaling measurements in industrial settings. Featuring a 3-1/2-digit 7-segment LED display with a 14mm character height, this panel meter supports input ranges of 4 to 20mA DC and 1 to 5V DC, ensuring reliable performance. With a maximum display range of 0 to 1999, it offers full-scale accuracy of ±0.3% rdg ±1-digit. This meter is ideal for monitoring and control applications, providing quick 300ms sampling cycles and a durable construction suitable for harsh environments.
Product Specifications
Specifications Alternating Current Ac Voltage Range
100 to 240 V
Specifications Approximate Weight
168 g
Specifications Character Height
14 mm
Specifications Display Accuracy Direct Current Dc Power
Full Scale ±0.3% rdg ±1-digit
Specifications Display Method
3-1/2-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Relative Humidity Rh Storage
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Ambient Temperature Storage
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Input Direct Current Dc
4 to 20 mA
Specifications Input Direct Current Dc Voltage
1 to 5 V
Specifications List Price
92.95 USD
Specifications Main Output Comparative Value
Indicator
Specifications Maximum Allowable Input
150 Percent (%) for Each Input Specification (at 400 Alternating Current (AC) Voltage : 120 Percent (%))
Specifications Maximum Display Range
0 to 1999
Specifications Measurement
Digital Scaling
Specifications Sampling Cycle
300 ms
Specifications Weight
0.2 lb
