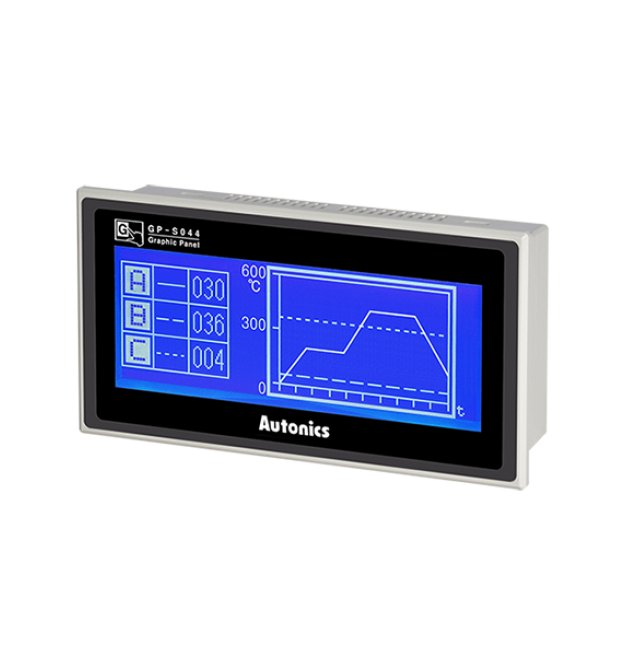

Autonics USA 4.4 Inch HMI Display - 12-24 V DC Voltage
Autonics USA 4.4 Inch HMI Display - 12-24 V DC Voltage
SKU:PRO-702d77
Autonics USA 4.4 Inch HMI Display - High-resolution graphics, multi-language support, and CE/KC certified for industrial automation.
Regular price
$344.95
Regular price
Sale price
$344.95
Unit price
per
Initiate Order
Autonics USA 4.4 Inch HMI Display - 12-24 V DC Voltage
$344.95
Quantity: 1
Claim Your Seller Account
Autonics USA 4.4 Inch HMI Display - 12-24 V DC Voltage
$344.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance your control systems with the Autonics USA Human-Machine Interface (HMI) featuring a 112.8 x 37.6 mm display area. This HMI offers 16 MB graphic drawing memory, RS232C interface, 12 to 24 V DC voltage, and IP65F protection structure. With a high resolution display, multi-language support, and real-time clock, this HMI is ideal for industrial automation. Approved for CE and KC certifications, it operates in temperatures from 0 to 50°C and is a reliable solution for demanding environments.
Product Specifications
Accessories Accessories
Fixing Bracket: 4, Rubber Waterproof Ring, Battery (Included)
Display Specifications Display Area
112.8 x 37.6 mm
Display Specifications Display Color
Mono (Blue, White)
Display Specifications Display Resolution
240 x 80 px
Display Specifications Display Type
4.4 Inch Super-Twisted Nematic (STN) Blue Negative
Graphic Drawing Performance Graphic Language
Chinese | English | Japanese | Korean | Portuguese | Russian | Vietnamese
Graphic Drawing Performance Graphic Text
High resolution display up to 1590 letters (6Ã8 font) 6x8, 8x8 ASCII character, high definition numbers8x16 ASCII characters, 16Ã16 character by each country (1-8 times bigger for width, 0.5-5 times bigger for height)
Graphic Drawing Performance Number Of User Screen
500 Pages
Human Machine Interface Hmi Item
Graphic Panel
Human Machine Interface Hmi Monitor Size
4.4 in
Human Machine Interface Hmi Serial Interface
RS232C (2)
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
284 g
Specifications Approximate Weight
413 g
Specifications Dedicated Software
GP Editor (Drawing Program)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Display Length
145 mm
Specifications Display Width
75 mm
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Graphic Drawing Memory
16 MB | 512 kB
Specifications List Price
344.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65F (Front Panel)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
1 EA
Specifications Touch Method
Pressure Sensitive Type
Specifications Type
Human-Machine Interface (HMI)
Specifications Weight
1.1 lb
