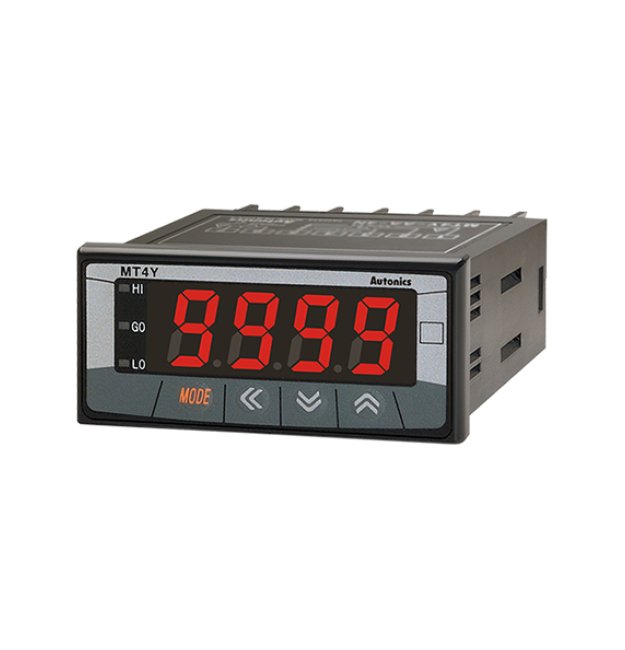

Autonics USA 4-Digit AC Amps LED Digital Panel Meter
Autonics USA 4-Digit AC Amps LED Digital Panel Meter
SKU:PRO-85dafa
Precise 4-Digit AC Amps LED Digital Panel Meter for accurate AC current measurements, featuring LED display, relay output, and international standards compliance.
Regular price
$219.95
Regular price
Sale price
$219.95
Unit price
per
Initiate Order
Autonics USA 4-Digit AC Amps LED Digital Panel Meter
$219.95
Quantity: 1
Claim Your Seller Account
Autonics USA 4-Digit AC Amps LED Digital Panel Meter
$219.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 4-Digit AC Amps LED Digital Panel Meter is a versatile and precise measurement tool designed for accurate alternating current (AC) measurements. With a display accuracy of F.S. ±0.3% rdg ±3-digit, this multi-function meter offers a comprehensive range of input specifications from 0 to 5 Ampere, catering to various measurement needs. It features a 4-Digit 7-Segment Light Emitting Diode (LED) display, a relay output system with comparative value indicators, and a frequency measurement range of 0.100 to 9999Hz. This panel meter is approved by Canadian and US Standards by Underwriters' Laboratories (CULUS) and European Conformity (CE), ensuring compliance with industry regulations and standards.
Product Specifications
Note Note
To measure the current over DC5A, please select DV type because the shunt should be used.In case of selecting frequency display, no output will be provided even if it is output support models. (main output, sub output and RS485 communication output)The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Ad Conversion Method
âÎ (Sigma Delta) ADC
Specifications Alternating Current Ac Measurement
Average value (AVG) | Root mean square value (RMS)
Specifications Alternating Current Ac Voltage Range
110 to 220 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CULUS) | European Conformity (CE)
Specifications Approximate Weight
213 g
Specifications Character Height
14.2 mm
Specifications Dimensions
72 x 36 x 77 mm
Specifications Display Accuracy
23â±5â - F.S. ±0.3% rdg±3-digit (frequency: F.S.±0.1% rdg±2-digit) , F.S +0.3% rdg ±3-digit max. only for 5A terminal-10â to 50â - F.S.±0.5% rdg±3-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Relative Humidity Rh Storage
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Ambient Temperature Storage
-20 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Frequency Measurement
Measurement Range: 0.100 to 9999Hz (Variable by Decimal Point Position)
Specifications Hold Function
Includes (External Hold Function)
Specifications Input Specification
0 to 1 Ampere | 0 to 100 Miliampere | 0 to 2.5 Ampere | 0 to 250 Miliampere | 0 to 5 Ampere | 0 to 50 Miliampere | 0 to 500 Miliampere
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv)
Specifications List Price
219.95 USD
Specifications Main Output Comparative Value
Relay (HI, GO, LO)
Specifications Maximum Allowable Input
110 Percent (%) F.S. for Each Measured Input Range
Specifications Maximum Display Range
-1999 to 9999
Specifications Measurement
Alternating Current (AC) | Frequency
Specifications Net Approximate Weight
134 g
Specifications Sampling Cycle
16.6 ms
Specifications Type
Multi-Function Meter
Specifications Weight
0.46 lb
