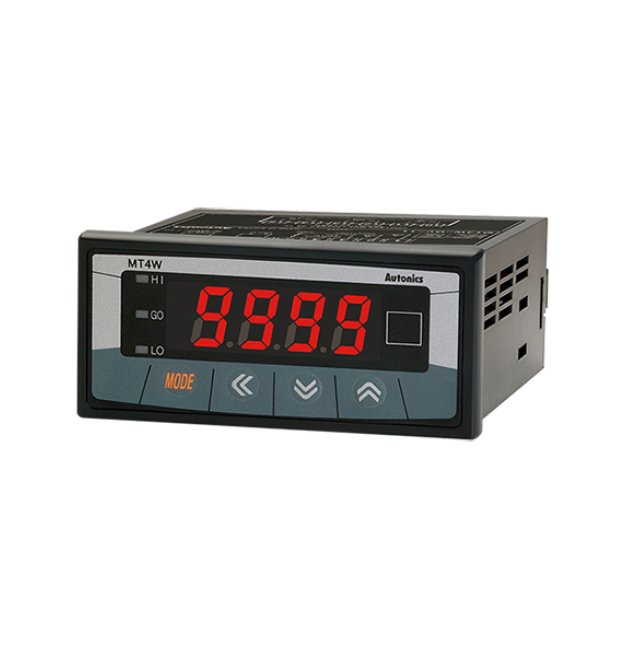

Autonics USA 4-Digit LED DC Voltage Digital Panel Meter
Autonics USA 4-Digit LED DC Voltage Digital Panel Meter
SKU:PRO-7237fd
Precise 4-Digit LED DC Voltage Panel Meter for industrial applications with PNP Open Collector outputs and RS485 communication.
Regular price
$205.95
Regular price
Sale price
$205.95
Unit price
per
Initiate Order
Autonics USA 4-Digit LED DC Voltage Digital Panel Meter
$205.95
Quantity: 1
Claim Your Seller Account
Autonics USA 4-Digit LED DC Voltage Digital Panel Meter
$205.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 4-Digit LED DC Voltage Digital Panel Meter is a versatile and reliable solution for precise voltage measurements in industrial applications. This multi-function meter features a 7-segment LED display, PNP Open Collector outputs, RS485 communication capability, and a wide input range from 0 to 500V. With approvals from CULUS and CE, this panel meter ensures accuracy and compliance with stringent quality standards. Its compact dimensions of 72 x 36 x 77 mm make it suitable for various control and monitoring systems.
Product Specifications
Note Note
To measure the current over DC5A, please select DV type because the shunt should be used.In case of selecting frequency display, no output will be provided even if it is output support models. (main output, sub output and RS485 communication output)AC measuring function, and frequency measuring function are only for AC measuring input type.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Ad Conversion Method
âÎ (Sigma Delta) ADC
Specifications Alternating Current Ac Voltage Range
110 to 220 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CULUS) | European Conformity (CE)
Specifications Approximate Weight
326 g
Specifications Character Height
14.2 mm
Specifications Dimensions
72 x 36 x 77 mm
Specifications Display Accuracy
23â±5â - F.S. ±0.1% rdg ±2-digit, F.S. +0.3% rdg ±3-digit max. only for 5A terminal.-10â to 50â - F.S. ±0.5% rdg ±3-digit
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Relative Humidity Rh Storage
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Ambient Temperature Storage
-20 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Hold Function
Includes (External Hold Function)
Specifications Input Specification
0 to 1 Voltage | 0 to 10 Voltage | 0 to 100 Voltage | 0 to 250 Milivoltage | 0 to 5 Voltage | 0 to 50 Milivoltage | 0 to 50 Voltage | 0 to 500 Voltage
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: 1kv)
Specifications List Price
205.95 USD
Specifications Main Output Comparative Value
PNP Open Collector (HI, GO, LO)
Specifications Maximum Allowable Input
110 Percent (%) F.S. for Each Measured Input Range
Specifications Maximum Display Range
-1999 to 9999
Specifications Measurement
Direct Current (DC) Voltage
Specifications Net Approximate Weight
211 g
Specifications Sampling Cycle
50 ms
Specifications Sub Output Display Value
RS485 Communication
Specifications Type
Multi-Function Meter
Specifications Weight
0.64 lb
