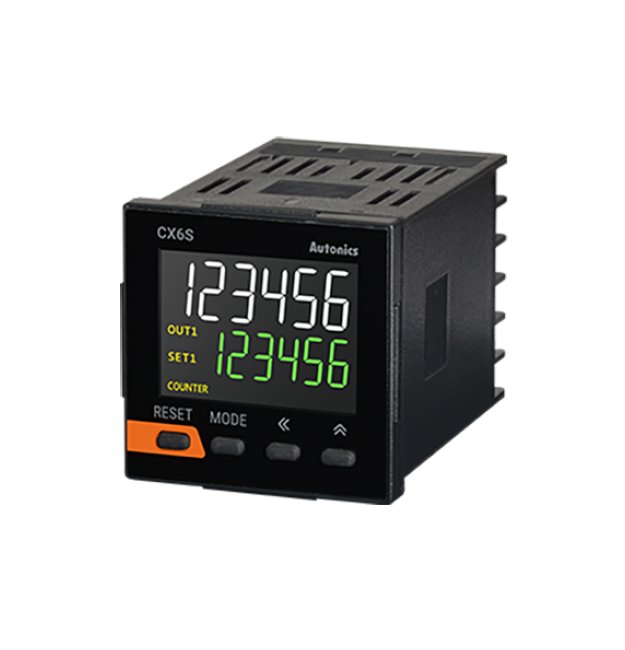

Autonics USA 48mm 6-Digit AC Voltage Counter
Autonics USA 48mm 6-Digit AC Voltage Counter
SKU:PRO-d21639
Precise 6-Digit AC Voltage Counter with 100-240V range & 4-Digit LCD display. Ideal for versatile counting applications.
Regular price
$161.95
Regular price
Sale price
$161.95
Unit price
per
Initiate Order
Autonics USA 48mm 6-Digit AC Voltage Counter
$161.95
Quantity: 1
Claim Your Seller Account
Autonics USA 48mm 6-Digit AC Voltage Counter
$161.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 48mm 6-Digit AC Voltage Counter is a versatile and reliable solution for counting applications. With a wide AC voltage range of 100 to 240V, this counter offers precise counting functionality with a 4-Digit 11-Segment LCD display. It features two presets, PNP or NPN input options, and a prescale value setting for flexible use. The IP50 protection structure, CE approval, and a wide environmental operating temperature range ensure durability and reliability in various conditions. The counter supports count up, count down, and count up/down operations, making it suitable for a wide range of industrial applications.
Product Specifications
Note Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Approximate Memory Protection
10 years
Specifications Approximate Net Weight
117 g
Specifications Approximate Weight
162 g
Specifications Control Output Relay
Single Pole Single Throw (SPST) (1A): 2
Specifications Control Output Type
2-Stage Preset
Specifications Counter Counting Range
-99999 to 999999
Specifications Counter Operation Method
Count Down | Count Up | Count Up/Down
Specifications Counter Scale
Decimal Point Up to Fifth Digit
Specifications Display Method
4-Digit 11-Segment Liquid Crystal Display (LCD) | Counting Display Part- 2-Digit 7-Segment Liquid Crystal Display (LCD) | Setting Value Display Part- 6-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
48 mm
Specifications List Price
161.95 USD
Specifications Maximum Counting Speed
1 cps | 1k cps | 30 cps | 300 cps | 5k cps
Specifications Maximum Current
100 mA
Specifications Maximum Direct Current Dc External Voltage
12 V
Specifications Maximum Tolerance
10 %
Specifications Minimum Signal Width
1 ms | 20 ms
Specifications Output Operation
On-Off Delay | Power On Delay | Signal On Delay
Specifications Protection Structure
Ingress Protection (IP) 50 (Front Panel)
Specifications Setting Range
0.001 sec to 999.999 sec | 0.01 sec to 99 min 59.99 sec | 0.01 sec to 9999.99 sec | 0.1 hour to 99999.9 hour | 0.1 min to 99999.9 min | 0.1 sec to 999 min 59.9 sec | 0.1 sec to 99999.9 sec | 1 min to 9999 hour 59 min | 1 min to 999999 min | 1 sec to 99 hour 59 min 59 sec | 1 sec to 9999 min 59 sec | 1 sec to 999999 sec
Specifications Signal Input Method
No-Voltage Input Negative Positive Negative(NPN) | Voltage Input Positive Negative Positive (PNP)
Specifications Terminal
Terminal Block
Specifications Timer Operation Method
Count Down | Count Up
Specifications Time Operation
Power On Start | Signal On Start
Specifications Weight
0.2 lb
Specifications Width
48 mm
