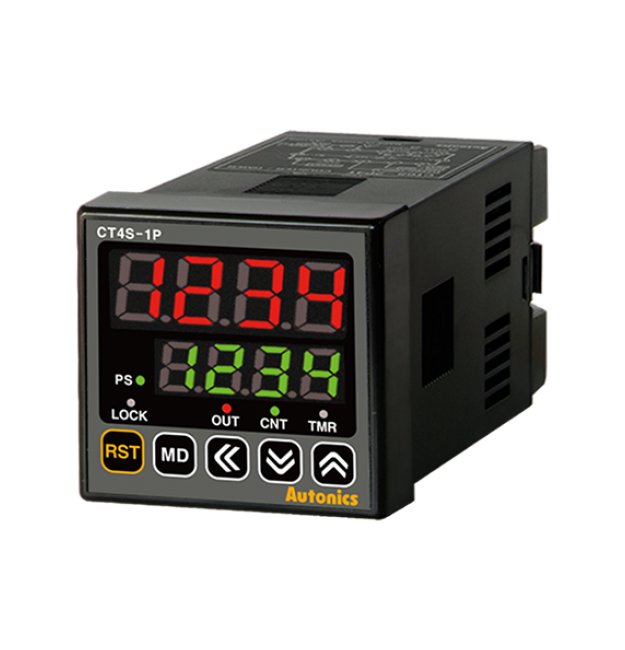

Autonics USA 48mm AC Voltage Counter
Autonics USA 48mm AC Voltage Counter
SKU:PRO-ed90e7
Enhance counting efficiency with the Autonics USA 48mm AC Voltage Counter, featuring versatile presets and durable design. Ideal for industrial applications.
Regular price
$167.95
Regular price
Sale price
$167.95
Unit price
per
Initiate Order
Autonics USA 48mm AC Voltage Counter
$167.95
Quantity: 1
Claim Your Seller Account
Autonics USA 48mm AC Voltage Counter
$167.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 48mm AC Voltage Counter is a versatile 4-digit LED display counter designed for precise counting and timing applications in industrial settings. It features a unique single preset, PNP or NPN input, and prescale value setting for customizable operation. With approvals like European Conformity (CE) and cULus listing, this counter ensures compliance with international standards, while its durable construction and IP65 protection make it suitable for diverse environmental conditions. Ideal for both consumer and institutional buyers seeking reliable counting solutions.
Product Specifications
Specifications Alternating Current Ac Voltage
110 to 220 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Memory Protection
10 years
Specifications Approximate Net Weight
159 g
Specifications Approximate Weight
212 g
Specifications Communication Output
RS 485
Specifications Contact Output
Single Pole Double Throw (SPDT) (1C) 1EA
Specifications Control Output Relay
Single Pole Double Throw (SPDT) (1C): 1
Specifications Control Output Type
1-Stage Preset
Specifications Counter Counting Range
-999 to 9999
Specifications Counter Operation Method
Count Down | Count Up | Count Up/Down
Specifications Counter Scale
Decimal Point Up to Third Digit
Specifications Display Digit
4
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
48 mm
Specifications List Price
167.95 USD
Specifications Maximum Counting Speed
1 cps | 10k cps | 1k cps | 30 cps | 5k cps
Specifications Maximum Current
100 mA
Specifications Maximum Direct Current Dc External Voltage
12 V
Specifications Maximum Tolerance
10 %
Specifications Minimum Selectable Reset Input Signal Width
1 ms | 20 ms
Specifications Minimum Selectable Timer Input Signal Width Ina I
1 ms | 20 ms
Specifications Minimum Signal Width
1 ms | 20 ms
Specifications Output Operation
Flicker | Integration Time | Interval | On-Off Delay | Power On Delay | Signal Off Delay | Signal On Delay
Specifications Preset
Single Preset
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Setting Range
0.001 sec to 9.999 sec | 0.01 sec to 99.99 sec | 0.1 min to 999.9 min | 0.1 sec to 999.9 sec | 1 hour to 9999 hour | 1 min to 99 hour 59 min | 1 min to 9999 min | 1 sec to 99 min 59 sec | 1 sec to 9999 sec
Specifications Signal Input Method
No-Voltage Input Negative Positive Negative(NPN) | Voltage Input Positive Negative Positive (PNP)
Specifications Solid State Relay
Negative Positive Negative (NPN)
Specifications Terminal
Terminal Block
Specifications Timer Operation Method
Count Down | Count Up
Specifications Time Operation
Power On Start | Signal On Start
Specifications Weight
1 lb
Specifications Width
48 mm
