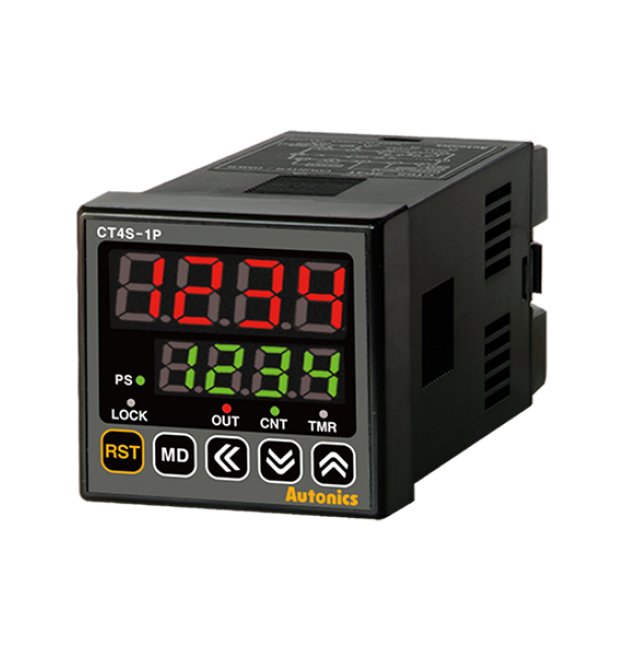

Autonics USA 48mm x 24V AC Counter/Timer
Autonics USA 48mm x 24V AC Counter/Timer
SKU:PRO-56a77d
Precise 48mm x 24V AC Counter/Timer for industrial time and counting operations with 4-digit LED display and multiple modes for accuracy and flexibility.
Regular price
$114.95
Regular price
Sale price
$114.95
Unit price
per
Initiate Order
Autonics USA 48mm x 24V AC Counter/Timer
$114.95
Quantity: 1
Claim Your Seller Account
Autonics USA 48mm x 24V AC Counter/Timer
$114.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 48mm Width and 24V Alternating Current Voltage Counter/Timer is a versatile controller designed for precise time and counting operations. With a 4-digit LED display, single preset capability, and various counting and timing modes, this counter offers flexibility and accuracy in industrial settings. It features a durable construction, approval from CE and cULus, and compliance with IP65 protection standards, ensuring reliability in challenging environments. With a wide range of setting options and control outputs, this counter is suitable for diverse applications requiring advanced functionality and compatibility.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Alternating Current Ac Voltage
24 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Memory Protection
10 years
Specifications Approximate Net Weight
159 g
Specifications Approximate Weight
212 g
Specifications Contact Output
Single Pole Double Throw (SPDT) (1C) 1EA
Specifications Control Output Negative Positive Negative Npn Ope
1
Specifications Control Output Relay
Single Pole Double Throw (SPDT) (1C): 1
Specifications Control Output Type
1-Stage Preset
Specifications Counter Counting Range
-999 to 9999
Specifications Counter Operation Method
Count Down | Count Up | Count Up/Down
Specifications Counter Scale
Decimal Point Up to Third Digit
Specifications Direct Current Dc Voltage
24 to 48 V
Specifications Display Digit
4
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
48 mm
Specifications List Price
114.95 USD
Specifications Maximum Counting Speed
1 cps | 10k cps | 1k cps | 30 cps | 5k cps
Specifications Maximum Current
100 mA
Specifications Maximum Direct Current Dc External Voltage
12 V
Specifications Maximum Tolerance
10 %
Specifications Minimum Selectable Reset Input Signal Width
1 ms | 20 ms
Specifications Minimum Selectable Timer Input Signal Width Ina I
1 ms | 20 ms
Specifications Minimum Signal Width
1 ms | 20 ms
Specifications Output Operation
Flicker | Integration Time | Interval | On-Off Delay | Power On Delay | Signal Off Delay | Signal On Delay
Specifications Preset
Single Preset
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Setting Range
0.001 sec to 9.999 sec | 0.01 sec to 99.99 sec | 0.1 min to 999.9 min | 0.1 sec to 999.9 sec | 1 hour to 9999 hour | 1 min to 99 hour 59 min | 1 min to 9999 min | 1 sec to 99 min 59 sec | 1 sec to 9999 sec
Specifications Signal Input Method
No-Voltage Input Negative Positive Negative(NPN) | Voltage Input Positive Negative Positive (PNP)
Specifications Solid State Relay
Negative Positive Negative (NPN)
Specifications Terminal
Terminal Block
Specifications Timer Operation Method
Count Down | Count Up
Specifications Time Operation
Power On Start | Signal On Start
Specifications Weight
1 lb
Specifications Width
48 mm
