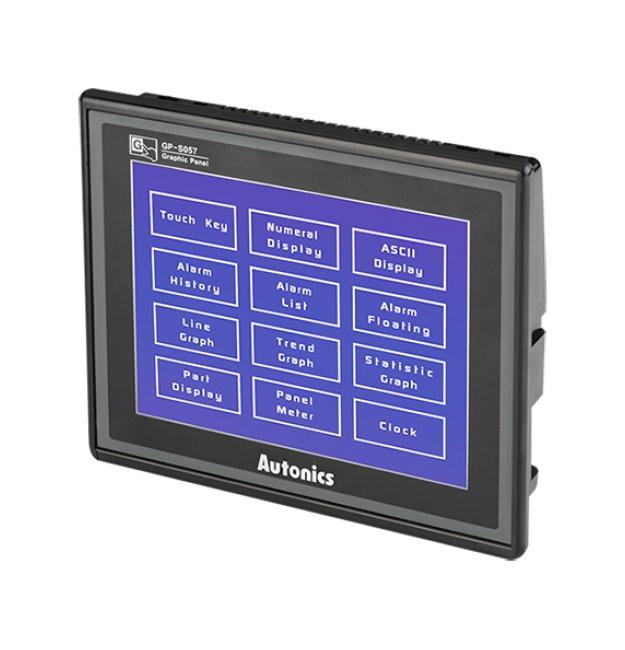

Autonics USA 5.7'' HMI Display Panel (12-24V DC, 119x91mm)
Autonics USA 5.7'' HMI Display Panel (12-24V DC, 119x91mm)
SKU:PRO-1ee5b0
Maximize control with Autonics USA 5.7'' HMI Display Panel - Touch interface, 16MB memory, CE/KC certified, RTC integrated.
Regular price
$442.95
Regular price
Sale price
$442.95
Unit price
per
Initiate Order
Autonics USA 5.7'' HMI Display Panel (12-24V DC, 119x91mm)
$442.95
Quantity: 1
Claim Your Seller Account
Autonics USA 5.7'' HMI Display Panel (12-24V DC, 119x91mm)
$442.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance human-machine interaction with the Autonics USA 5.7'' HMI Display Panel. Featuring a responsive touch interface, 16MB graphic drawing memory, RS232C interfaces, and IP65F protection, this HMI ensures reliable performance in diverse environments. With CE and KC certifications, real-time clock integration, and multilingual graphic support, it meets European and Korean standards. Ideal for industrial control applications with a temperature range of 0-50°C.
Product Specifications
Accessories Accessories
Fixing Bracket: 4, Rubber Waterproof Ring, Battery (Included)
Display Specifications Display Area
119 x 91 mm
Display Specifications Display Color
Mono (Blue, White)
Display Specifications Display Resolution
320 x 240 px
Display Specifications Display Type
5.7 inch STN Blue Negative
Graphic Drawing Performance Graphic Language
Chinese | English | Japanese | Korean | Portuguese | Russian | Vietnamese
Graphic Drawing Performance Graphic Text
High resolution display up to 1590 letters (6Ã8 font) 6x8, 8x8 ASCII character, high definition numbers8x16 ASCII characters, 16Ã16 character by each country (1-8 times bigger for width, 0.5-5 times bigger for height)
Graphic Drawing Performance Number Of User Screen
500 Pages
Human Machine Interface Hmi Item
Graphic Panel
Human Machine Interface Hmi Monitor Size
5.7 in
Human Machine Interface Hmi Serial Interface
RS232C (2)
Specifications Approval
European Conformity (CE) | Korean Certification (KC)
Specifications Approximate Net Weight
376 g
Specifications Approximate Weight
555 g
Specifications Dedicated Software
GP Editor (Drawing Program)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Display Length
156 mm
Specifications Display Width
132 mm
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
0 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Graphic Drawing Memory
16 MB | 512 kB
Specifications List Price
442.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65F (Front Panel)
Specifications Real Time Controller
Real Time Clock (RTC) Embedded
Specifications Rs232c Interface
2 EA
Specifications Touch Method
Pressure Sensitive Type
Specifications Type
Human-Machine Interface (HMI)
Specifications Weight
1.1 lb
