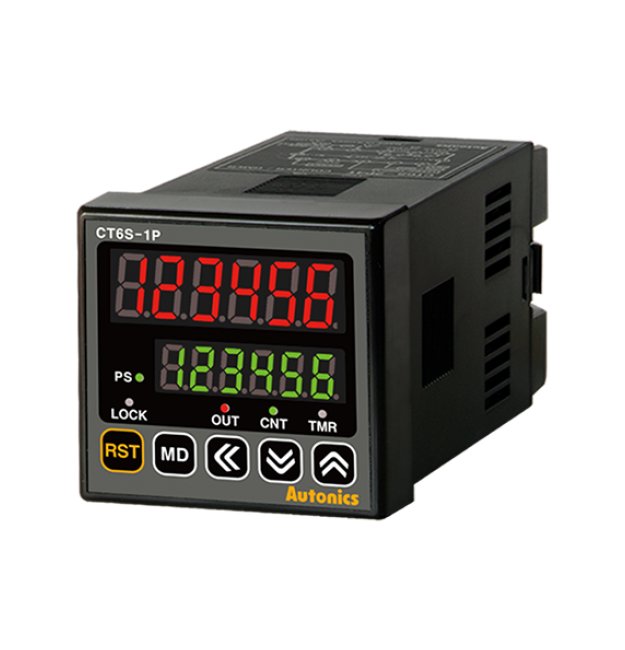

Autonics USA 6-Digit 48mm Width 24V AC Counter Timer
Autonics USA 6-Digit 48mm Width 24V AC Counter Timer
SKU:PRO-0bd502
Enhance control systems with a precise 6-digit LED counter/timer from Autonics USA.
Regular price
$121.95
Regular price
Sale price
$121.95
Unit price
per
Initiate Order
Autonics USA 6-Digit 48mm Width 24V AC Counter Timer
$121.95
Quantity: 1
Claim Your Seller Account
Autonics USA 6-Digit 48mm Width 24V AC Counter Timer
$121.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Upgrade your control systems with the Autonics USA 6-Digit Counter Timer. This compact 48x48mm counter features a 6-digit LED display, single preset, and versatile PNP or NPN input. With a wide range of counting speeds, timing options, and durable construction meeting IP65 standards, this counter is ideal for industrial applications. It complies with CE, cULus, and offers long-lasting memory protection for reliable performance.
Product Specifications
Specifications Alternating Current Ac Voltage
24 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Memory Protection
10 years
Specifications Approximate Net Weight
159 g
Specifications Approximate Weight
212 g
Specifications Contact Output
Single Pole Double Throw (SPDT) (1C) 1EA
Specifications Control Output Negative Positive Negative Npn Ope
1
Specifications Control Output Relay
Single Pole Double Throw (SPDT) (1C): 1
Specifications Control Output Type
1-Stage Preset
Specifications Counter Counting Range
-99999 to 999999
Specifications Counter Operation Method
Count Down | Count Up | Count Up/Down
Specifications Counter Scale
Decimal Point Up to Fifth Digit
Specifications Direct Current Dc Voltage
24 to 48 V
Specifications Display Digit
6
Specifications Display Method
6-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
48 mm
Specifications List Price
121.95 USD
Specifications Maximum Counting Speed
1 cps | 10k cps | 1k cps | 30 cps | 5k cps
Specifications Maximum Current
100 mA
Specifications Maximum Direct Current Dc External Voltage
12 V
Specifications Maximum Tolerance
10 %
Specifications Minimum Selectable Reset Input Signal Width
1 ms | 20 ms
Specifications Minimum Selectable Timer Input Signal Width Ina I
1 ms | 20 ms
Specifications Minimum Signal Width
1 ms | 20 ms
Specifications Output Operation
Flicker | Integration Time | Interval | On-Off Delay | Power On Delay | Signal Off Delay | Signal On Delay
Specifications Preset
Single Preset
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Setting Range
0.001 sec to 9.999 sec | 0.01 sec to 99.99 sec | 0.1 min to 999.9 min | 0.1 sec to 999.9 sec | 1 hour to 9999 hour | 1 min to 99 hour 59 min | 1 min to 9999 min | 1 sec to 99 min 59 sec | 1 sec to 9999 sec
Specifications Signal Input Method
No-Voltage Input Negative Positive Negative(NPN) | Voltage Input Positive Negative Positive (PNP)
Specifications Solid State Relay
Negative Positive Negative (NPN)
Specifications Terminal
Terminal Block
Specifications Timer Operation Method
Count Down | Count Up
Specifications Time Operation
Power On Start | Signal On Start
Specifications Weight
1 lb
Specifications Width
48 mm
