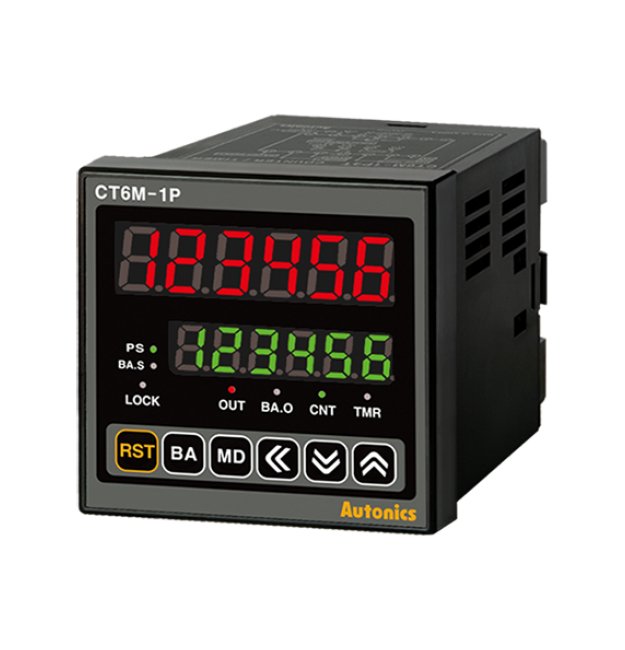

Autonics USA 6-Digit 72mm AC Voltage Counter
Autonics USA 6-Digit 72mm AC Voltage Counter
SKU:PRO-e63630
Enhance productivity with the Autonics 6-Digit AC Voltage Counter for precise time and count management.
Regular price
$150.95
Regular price
Sale price
$150.95
Unit price
per
Initiate Order
Autonics USA 6-Digit 72mm AC Voltage Counter
$150.95
Quantity: 1
Claim Your Seller Account
Autonics USA 6-Digit 72mm AC Voltage Counter
$150.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 6-Digit 72mm AC Voltage Counter is a versatile solution for precise time and count management. With a display digit of 6 and single preset functionality, this counter offers PNP or NPN input options and prescale value setting. It meets European Conformity (CE) and cULus standards, ensuring reliable performance in diverse environments with ambient temperatures ranging from -10 to 55ºC. Featuring IP65 protection and a durable build, this counter is ideal for industrial applications requiring accurate counting and timing operations.
Product Specifications
Note Note
It is recommended to use Autonics communication converter; SCM-WF48 (Wi-Fi to RS485·USB wireless communication converter, sold separately), SCM-US48I (USB to RS485 converter, sold separately), SCM-38I (RS232C to RS485 converter, sold separately), SCM-US(USB to Serial converter, sold separately). Please use twisted pair wire for RS485 communication.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Alternating Current Ac Voltage
110 to 220 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Memory Protection
10 years
Specifications Approximate Net Weight
252 g
Specifications Approximate Weight
322 g
Specifications Contact Output
Single Pole Double Throw (SPDT) (1C) 1EA
Specifications Control Output Negative Positive Negative Npn Ope
2
Specifications Control Output Relay
Single Pole Double Throw (SPDT) (1C): 1
Specifications Control Output Type
1-Stage Preset
Specifications Counter Counting Range
-99999 to 999999
Specifications Counter Operation Method
Count Down | Count Up | Count Up/Down
Specifications Counter Scale
Decimal Point Up to Fifth Digit
Specifications Display Digit
6
Specifications Display Method
6-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
72 mm
Specifications List Price
150.95 USD
Specifications Maximum Counting Speed
1 cps | 10k cps | 1k cps | 30 cps | 5k cps
Specifications Maximum Current
100 mA
Specifications Maximum Direct Current Dc External Voltage
12 V
Specifications Maximum Tolerance
10 %
Specifications Minimum Selectable Reset Input Signal Width
1 ms | 20 ms
Specifications Minimum Selectable Timer Input Signal Width Ina R
1 ms | 20 ms
Specifications Minimum Signal Width
1 ms | 20 ms
Specifications Output Operation
Flicker | Integration Time | Interval | On-Off Delay | Power On Delay | Signal Off Delay | Signal On Delay
Specifications Preset
Single Preset
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Setting Range
0.001 sec to 9.999 sec | 0.01 sec to 99.99 sec | 0.1 min to 999.9 min | 0.1 sec to 999.9 sec | 1 hour to 9999 hour | 1 min to 99 hour 59 min | 1 min to 9999 min | 1 sec to 99 min 59 sec | 1 sec to 9999 sec
Specifications Signal Input Method
No-Voltage Input Negative Positive Negative(NPN) | Voltage Input Positive Negative Positive (PNP)
Specifications Solid State Relay
Negative Positive Negative (NPN)
Specifications Terminal
Terminal Block
Specifications Timer Operation Method
Count Down | Count Up
Specifications Time Operation
Power On Start | Signal On Start
Specifications Weight
1.1 lb
Specifications Width
72 mm
