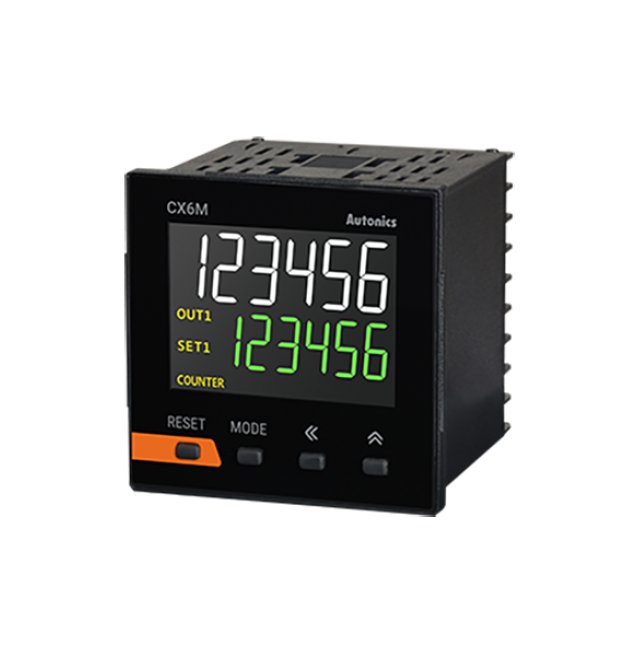

Autonics USA 72mm AC Voltage Counter
Autonics USA 72mm AC Voltage Counter
SKU:PRO-a71279
Versatile 6-digit LCD counter/timer with PNP/NPN input, countdown/up options, and 100-240V AC voltage range.
Regular price
$196.95
Regular price
Sale price
$196.95
Unit price
per
Initiate Order
Autonics USA 72mm AC Voltage Counter
$196.95
Quantity: 1
Claim Your Seller Account
Autonics USA 72mm AC Voltage Counter
$196.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 72mm AC Voltage Counter is a versatile 6-digit LCD counter/timer with 2 preset options suitable for various applications. Featuring PNP or NPN input compatibility, this counter offers flexible operation methods including countdown, count up, and more. With a wide operating voltage range of 100 to 240V AC, precise timing settings from milliseconds to hours, and convenient terminal block connections, this counter is designed to meet the diverse needs of industrial and institutional settings.
Product Specifications
Note Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Approximate Memory Protection
10 years
Specifications Approximate Net Weight
175 g
Specifications Approximate Weight
240 g
Specifications Control Output Negative Positive Negative Npn Ope
2
Specifications Control Output Relay
Single Pole Double Throw (SPDT) (1C): 2
Specifications Control Output Type
2-Stage Preset
Specifications Counter Counting Range
-99999 to 999999
Specifications Counter Operation Method
Count Down | Count Up | Count Up/Down
Specifications Counter Scale
Decimal Point Up to Fifth Digit
Specifications Display Method
4-Digit 11-Segment Liquid Crystal Display (LCD) | Counting Display Part- 2-Digit 7-Segment Liquid Crystal Display (LCD) | Setting Value Display Part- 6-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
72 mm
Specifications List Price
196.95 USD
Specifications Maximum Counting Speed
1 cps | 1k cps | 30 cps | 300 cps | 5k cps
Specifications Maximum Current
100 mA
Specifications Maximum Direct Current Dc External Voltage
12 V
Specifications Maximum Tolerance
10 %
Specifications Minimum Signal Width
1 ms | 20 ms
Specifications Output Operation
On-Off Delay | Power On Delay | Signal On Delay
Specifications Protection Structure
Ingress Protection (IP) 50 (Front Panel)
Specifications Setting Range
0.001 sec to 999.999 sec | 0.01 sec to 99 min 59.99 sec | 0.01 sec to 9999.99 sec | 0.1 hour to 99999.9 hour | 0.1 min to 99999.9 min | 0.1 sec to 999 min 59.9 sec | 0.1 sec to 99999.9 sec | 1 min to 9999 hour 59 min | 1 min to 999999 min | 1 sec to 99 hour 59 min 59 sec | 1 sec to 9999 min 59 sec | 1 sec to 999999 sec
Specifications Signal Input Method
No-Voltage Input Negative Positive Negative(NPN) | Voltage Input Positive Negative Positive (PNP)
Specifications Terminal
Terminal Block
Specifications Timer Operation Method
Count Down | Count Up
Specifications Time Operation
Power On Start | Signal On Start
Specifications Weight
0.2 lb
Specifications Width
72 mm
