Autonics USA 72mm Width 24V AC Voltage Counter
Autonics USA 72mm Width 24V AC Voltage Counter
SKU:PRO-1f030d
Precision 6-digit counter with PNP/NPN input, preset function, and versatile counting settings for industrial applications.
Regular price
$169.95
Regular price
Sale price
$169.95
Unit price
per
Initiate Order
Autonics USA 72mm Width 24V AC Voltage Counter
$169.95
Quantity: 1
Claim Your Seller Account
Autonics USA 72mm Width 24V AC Voltage Counter
$169.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

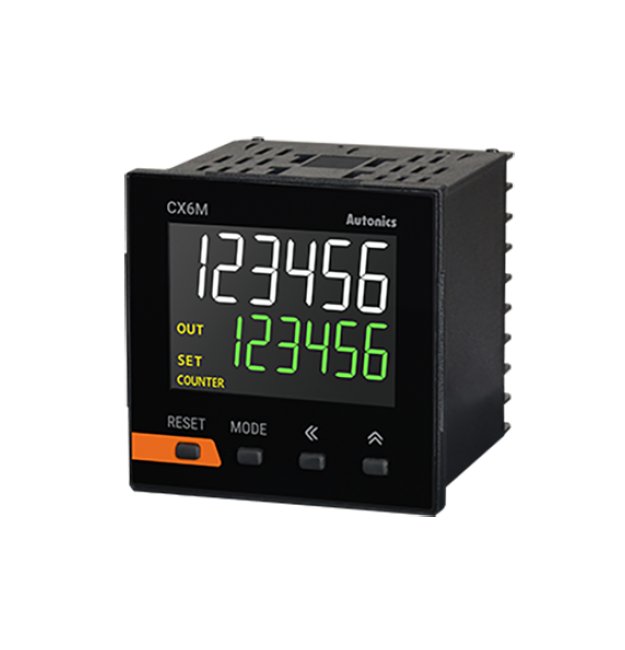

The Autonics USA 6-Digit Counter features a 72x72mm LCD display with PNP/NPN input compatibility. With a preset option and precise prescale value setting, this counter supports multiple counting and timing operations. Suitable for industrial environments with an IP50 protection structure, CE approval, and a wide range of counting settings, this counter ensures reliable performance in diverse applications.
Product Specifications
Note Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Alternating Current Ac Voltage
24 V
Specifications Approval
European Conformity (CE)
Specifications Approximate Memory Protection
10 years
Specifications Approximate Net Weight
170 g
Specifications Approximate Weight
235 g
Specifications Control Output Negative Positive Negative Npn Ope
1
Specifications Control Output Relay
Single Pole Double Throw (SPDT) (1C): 1
Specifications Control Output Type
1-Stage Preset
Specifications Counter Counting Range
-99999 to 999999
Specifications Counter Operation Method
Count Down | Count Up | Count Up/Down
Specifications Counter Scale
Decimal Point Up to Fifth Digit
Specifications Direct Current Dc Voltage
24 to 48 V
Specifications Display Method
4-Digit 11-Segment Liquid Crystal Display (LCD) | Counting Display Part- 2-Digit 7-Segment Liquid Crystal Display (LCD) | Setting Value Display Part- 6-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
72 mm
Specifications List Price
169.95 USD
Specifications Maximum Counting Speed
1 cps | 1k cps | 30 cps | 300 cps | 5k cps
Specifications Maximum Current
100 mA
Specifications Maximum Direct Current Dc External Voltage
12 V
Specifications Maximum Tolerance
10 %
Specifications Minimum Signal Width
1 ms | 20 ms
Specifications Output Operation
On-Off Delay | Power On Delay | Signal On Delay
Specifications Protection Structure
Ingress Protection (IP) 50 (Front Panel)
Specifications Setting Range
0.001 sec to 999.999 sec | 0.01 sec to 99 min 59.99 sec | 0.01 sec to 9999.99 sec | 0.1 hour to 99999.9 hour | 0.1 min to 99999.9 min | 0.1 sec to 999 min 59.9 sec | 0.1 sec to 99999.9 sec | 1 min to 9999 hour 59 min | 1 min to 999999 min | 1 sec to 99 hour 59 min 59 sec | 1 sec to 9999 min 59 sec | 1 sec to 999999 sec
Specifications Signal Input Method
No-Voltage Input Negative Positive Negative(NPN) | Voltage Input Positive Negative Positive (PNP)
Specifications Terminal
Terminal Block
Specifications Timer Operation Method
Count Down | Count Up
Specifications Time Operation
Power On Start | Signal On Start
Specifications Weight
0.2 lb
Specifications Width
72 mm
