Autonics USA 8-Digit Backlight LCD Counter - 1/32 DIN
Autonics USA 8-Digit Backlight LCD Counter - 1/32 DIN
SKU:PRO-f7088f
Accurate Autonics USA 8-Digit Backlight LCD Counter with durable design, versatile inputs, and easy reset options. Buy now!
Regular price
$64.95
Regular price
Sale price
$64.95
Unit price
per
Initiate Order
Autonics USA 8-Digit Backlight LCD Counter - 1/32 DIN
$64.95
Quantity: 1
Claim Your Seller Account
Autonics USA 8-Digit Backlight LCD Counter - 1/32 DIN
$64.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

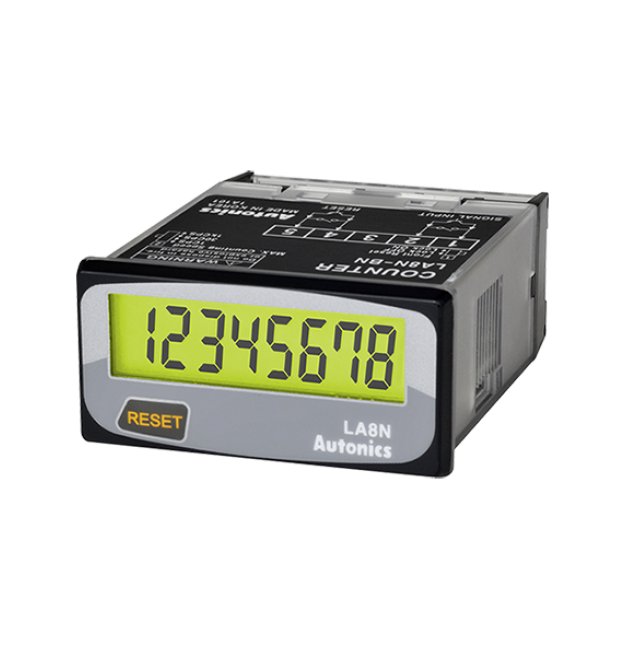

Experience precise counting with the Autonics USA 8-Digit Backlight LCD Counter. This 1/32 DIN counter features a 7-segment liquid crystal display, selectable front reset key, and a 24VDC backlight. With a built-in battery lasting over 7 years, IP66 protection, and CE/cULus approvals, this counter ensures reliable performance in diverse environments. Control indicators, no-voltage input methods, and optional mounting accessories enhance usability, making it ideal for industrial applications.
Product Specifications
Accessories Accessories
Mounting Bracket | Rubber Waterproof Ring
Note Note
External setting switch: SW1 is the front panel RESET key enable/disable setting switch.External setting switch: SW2 is the max. counting speed setting switch.External setting switch: SW3 is the decimal point setting switch.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
50 g
Specifications Approximate Weight
96 g
Specifications Backlight
Backlight Function
Specifications Control Output
Indicator
Specifications Counter Operation Method
Count Up
Specifications Direct Current Dc Voltage
24 V
Specifications Display Method
8-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Power
Built-In Battery (Over 7 Years)
Specifications Input Reset Method
No-Voltage Input Negative Positive Negative (NPN)
Specifications Input Signal Method
No-Voltage Input Negative Positive Negative (NPN)
Specifications List Price
64.95 USD
Specifications Maximum Counting Speed
1 cps | 1k cps | 30 cps
Specifications Minimum Signal Width
20 ms
Specifications Protection Structure
Ingress Protection (IP) 66 (Front Panel)
Specifications Terminal
Terminal Block
Specifications Weight
0.56 lb
