Autonics USA 8-Digit LCD Totalized Counter
Autonics USA 8-Digit LCD Totalized Counter
SKU:PRO-f7f2d9
Precision 8-Digit LCD Totalized Counter for accurate counting at 20cps speed. CE and cULus Listed for quality assurance.
Regular price
$63.95
Regular price
Sale price
$63.95
Unit price
per
Initiate Order
Autonics USA 8-Digit LCD Totalized Counter
$63.95
Quantity: 1
Claim Your Seller Account
Autonics USA 8-Digit LCD Totalized Counter
$63.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

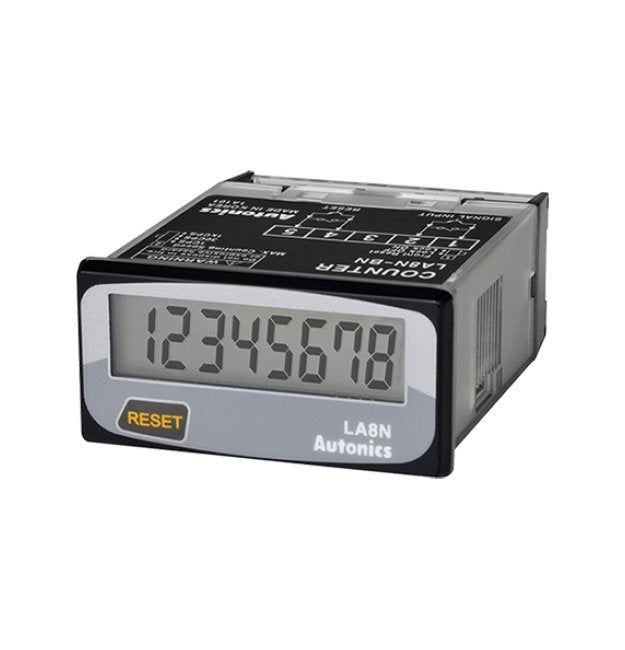

The Autonics USA 8-Digit LCD Totalized Counter is a high-performance counting solution designed for precision and reliability. Featuring a 7-segment liquid crystal display, this counter allows for accurate counting with a maximum speed of 20 counts per second. With a selectable front reset key and free voltage input method, this counter offers flexibility in operation. It meets European Conformity (CE) and cULus Listed standards, ensuring quality and compliance in various industrial settings. Weighing approximately 96g, this counter is lightweight yet durable, making it an ideal choice for a wide range of applications.
Product Specifications
Accessories Accessories
Mounting Bracket | Rubber Waterproof Ring
Note Note
External setting switch: SW1 is the front panel RESET key enable/disable setting switch.External setting switch: SW3 is the decimal point setting switch.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
50 g
Specifications Approximate Weight
96 g
Specifications Control Output
Indicator
Specifications Counter Operation Method
Count Up
Specifications Display Method
8-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Input Reset Method
No-Voltage Input Negative Positive Negative (NPN)
Specifications Input Signal Method
Free Voltage Input
Specifications List Price
63.95 USD
Specifications Maximum Counting Speed
20 cps
Specifications Minimum Signal Width
20 ms
Specifications Protection Structure
Ingress Protection (IP) 66 (Front Panel)
Specifications Terminal
Terminal Block
Specifications Weight
0.22 lb
