Autonics USA 8-Port Distribution Box - 12-24V DC Voltage
Autonics USA 8-Port Distribution Box - 12-24V DC Voltage
SKU:PRO-9876a1
Efficiently distribute 12-24V DC power with Autonics USA 8-port Box for industrial needs. CE approved with IP protection.
Regular price
$122.95
Regular price
Sale price
$122.95
Unit price
per
Initiate Order
Autonics USA 8-Port Distribution Box - 12-24V DC Voltage
$122.95
Quantity: 1
Claim Your Seller Account
Autonics USA 8-Port Distribution Box - 12-24V DC Voltage
$122.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

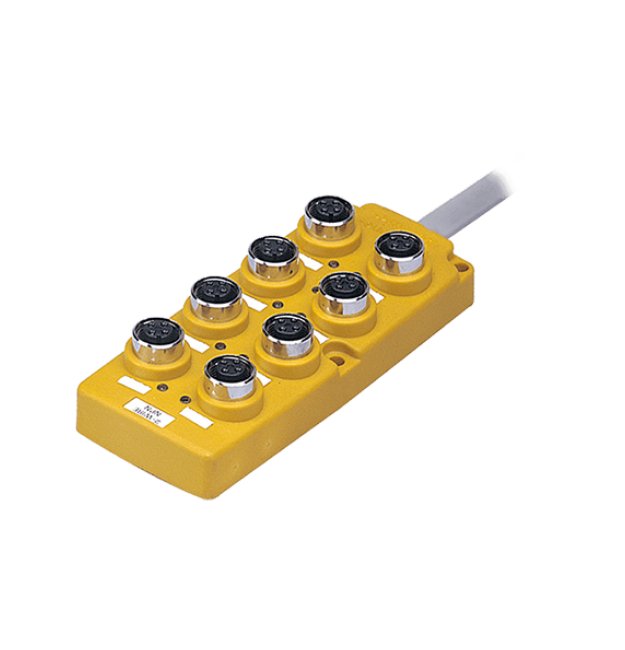

The Autonics USA 8-Port Distribution Box features a durable Distribution Box design with 8 ports capable of handling 12-24V DC Voltage. With a rated current of 4A per port and a total rated current of 10A, this Distribution Box offers reliable and safe distribution of power. The box also includes European Conformity (CE) approval, ingress protection, and meets stringent environmental standards for temperature and humidity. Ideal for industrial and institutional applications, this Distribution Box ensures efficient power distribution in a compact design.
Product Specifications
Specifications Approval
European Conformity (CE)
Specifications Box Type
Distribution
Specifications Cable Length
5 m
Specifications Case Color
Yellow
Specifications Case Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Connection Method For External Signal
Cable Type
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-25 to 75 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-30 to 80 ºC
Specifications General Cable Color
Gray
Specifications General Cable Material
Polyvinyl Chloride (PVC)
Specifications List Price
122.95 USD
Specifications Maximum Leakage Current
0.5 mA
Specifications Minimum Connection Life Cycle Operations
200
Specifications Number Of M12 Connector Pins
4
Specifications Number Of Ports
8
Specifications Output Specification
1-Signal (Direct Current (DC) 2-Wire Type)
Specifications Protection Structure
Ingress Protection (IP) 52 (Protection Cover) | Ingress Protection (IP) 67 (Waterproof Cover)
Specifications Rated Current Per Port
4 A
Specifications Rated Current Per Signal
2 A
Specifications Total Rated Current
10 A
Specifications Unit Weight
780 g
Specifications Weight
0.2 lb
