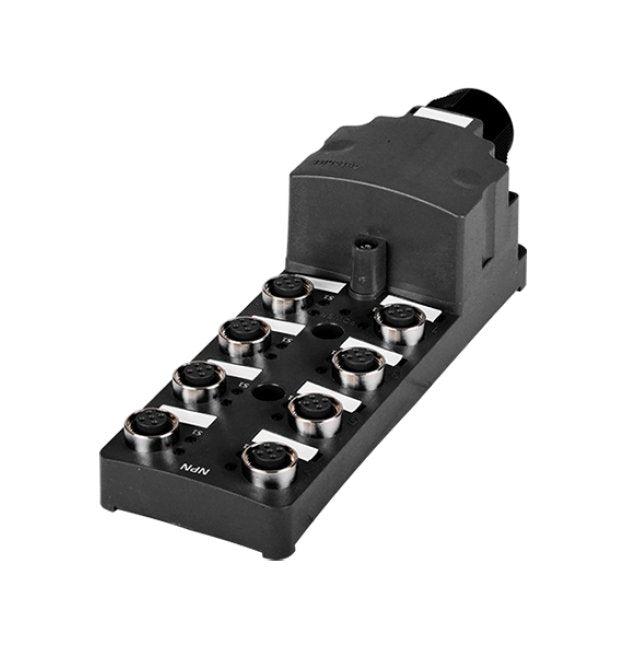

Autonics USA 8-Port NPN Input Logic Distribution Box (12-24V DC)
Autonics USA 8-Port NPN Input Logic Distribution Box (12-24V DC)
SKU:PRO-dbb56f
Enhance your industrial connectivity with Autonics USA 8-Port NPN Input Logic Distribution Box. Reliable performance in a durable design.
Regular price
$122.95
Regular price
Sale price
$122.95
Unit price
per
Initiate Order
Autonics USA 8-Port NPN Input Logic Distribution Box (12-24V DC)
$122.95
Quantity: 1
Claim Your Seller Account
Autonics USA 8-Port NPN Input Logic Distribution Box (12-24V DC)
$122.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA 8-Port NPN Input Logic Distribution Box is a reliable solution for industrial connectivity needs. Featuring Negative-Positive-Negative input logic and 12-24V DC voltage support, this distribution box offers seamless integration with equipment. With a durable construction, ingress protection, and CE approval, it ensures high performance in varied environments. Each port supports 2A current, totaling 7A, guaranteeing power distribution efficiency. The included hood cover enhances safety, making it an ideal choice for demanding settings.
Product Specifications
Specifications Approval
European Conformity (CE)
Specifications Box Type
Distribution
Specifications Case Color
Black
Specifications Case Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Connection Method For External Signal
Pluggable Screw Terminal Type
Specifications Cover Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Cover Nut Material
Polyamide 6 (G15%)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-25 to 75 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-30 to 80 ºC
Specifications Including
Hood Cover
Specifications Input Logic
Negative-Positive-Negative (NPN)
Specifications List Price
122.95 USD
Specifications Minimum Connection Life Cycle Operations
200
Specifications Name Plate Material
Polycarbonate (PC)
Specifications Number Of M12 Connector Pins
5
Specifications Number Of Ports
8
Specifications Output Specification
1-Signal (Direct Current (DC) 3-Wire Type)
Specifications Protection Structure
Ingress Protection (IP) 52 (Protection Cover) | Ingress Protection (IP) 67 (Waterproof Cover)
Specifications Rated Current Per Port
2 A
Specifications Rated Current Per Signal
2 A
Specifications Total Rated Current
7 A
Specifications Unit Weight
210 g
Specifications Weight
0.2 lb
