Autonics USA AC Voltage Temperature Controller 100-240V - Digital PID Control
Autonics USA AC Voltage Temperature Controller 100-240V - Digital PID Control
SKU:PRO-c23b39
Precision digital PID Temperature Controller with dual algorithm for 100-240V AC voltage.
Regular price
$170.95
Regular price
Sale price
$170.95
Unit price
per
Initiate Order
Autonics USA AC Voltage Temperature Controller 100-240V - Digital PID Control
$170.95
Quantity: 1
Claim Your Seller Account
Autonics USA AC Voltage Temperature Controller 100-240V - Digital PID Control
$170.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

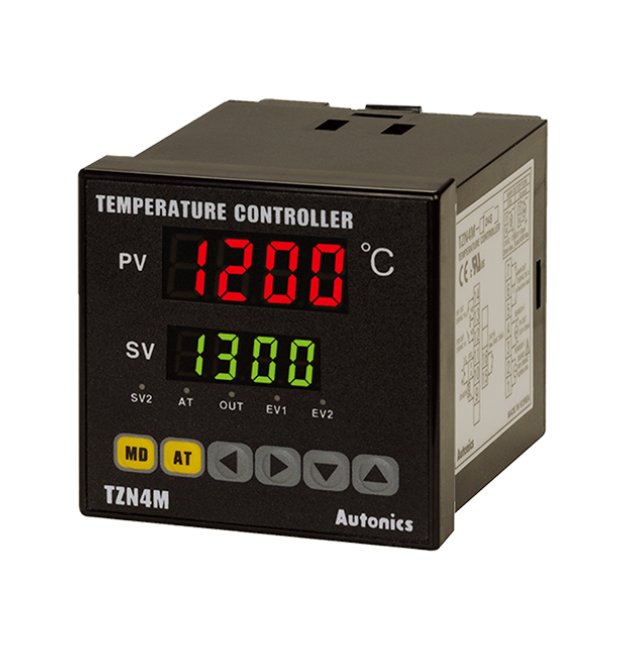

The Autonics USA Voltage Temperature Controller offers precise control with a dual PID algorithm for accurate temperature management. With a 72x72mm digital display, relay output, and 2 alarm outputs, this controller supports a wide range of inputs including thermocouples, RTDs, and analog signals. Meeting Canadian and US UL standards, CE approval, and featuring a 4-digit LED display, this controller ensures reliable operation in diverse environments.
Product Specifications
Specifications Alarm Output
Alarm1+Alarm2
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
72 x 72 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Height
72 mm
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
170.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1/2
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
246 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
355 g
Specifications Weight
0.73 lb
Specifications Width
72 mm
