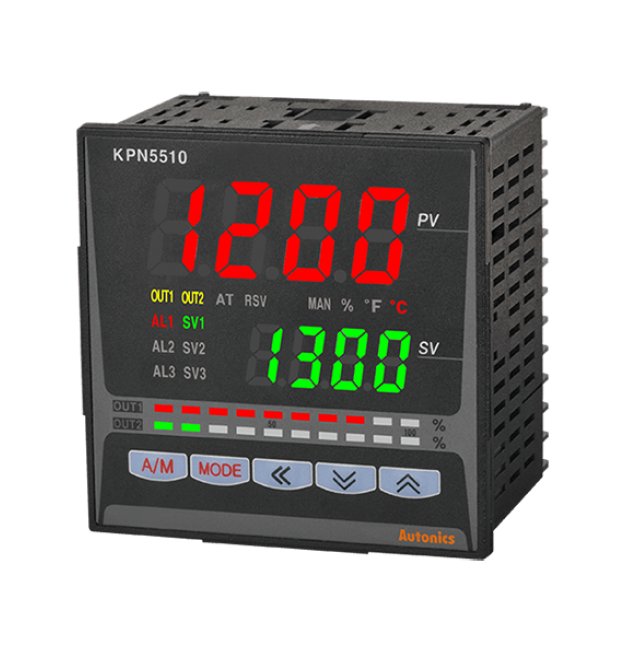

The Autonics USA AC Voltage Temperature Controller is a versatile solution for precise temperature control in industrial settings. With an input range of 100 to 240 V AC and multiple input types including RTD, TC, analog voltage, and analog current, this controller offers flexibility to suit various application needs. It features On/Off Control, PID Control, and multiple control outputs for heating and cooling. The IP65 protection structure, CE approval, and wide ambient temperature range make it suitable for diverse environments, ensuring reliable performance.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PID Control
Specifications Control Output
OUT1: Selectable Current Output, SSR drive Output, OUT2: Selectable Current Output, SSR Drive Output
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
96 mm
Specifications Inputoutput Option
Transmission Output + Remote SV
Specifications Input Type Analog Current
0 to 20 mA | 4 to 20 mA
Specifications Input Type Analog Voltage
0 to 10 V | 0 to 100 mV | 0 to 5 V | 1 to 5 V
Specifications Input Type Resistance Temperature Detector Rtd
Cu100Ω | Cu50Ω | DPt100Ω | DPt50Ω | JPt100Ω | Nikel120Ω (6 types)
Specifications Input Type Tc
B | C | E | G | J | K | L | N | PLII (13 types) | R | S | T | U
Specifications List Price
380.95 USD
Specifications Protection Structure
Ingress Protection (IP) 65 (Front Panel)
Specifications Sampling Cycle
50 ms
Specifications Shipping Weight
220 g
Specifications Size
DIN W96ÃH96mm
Specifications The Number Of Control Output
2 Output Type (Heating and Cooling Type)
Specifications Unit Weight
316 g
Specifications Weight
0.2 lb
Specifications Width
96 mm
