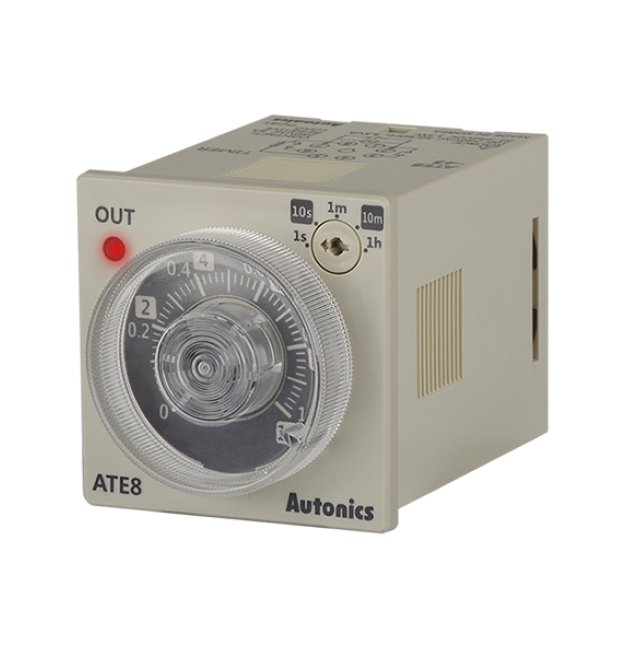

Autonics USA Analog Timer - 100-240V AC, -10-55°C, 8-Pin Plug
Autonics USA Analog Timer - 100-240V AC, -10-55°C, 8-Pin Plug
SKU:PRO-9dba44
Reliable Autonics USA Analog Timer with 100-240V AC, -10-55°C, CE/cULus Listed
Regular price
$21.95
Regular price
Sale price
$21.95
Unit price
per
Initiate Order
Autonics USA Analog Timer - 100-240V AC, -10-55°C, 8-Pin Plug
$21.95
Quantity: 1
Claim Your Seller Account
Autonics USA Analog Timer - 100-240V AC, -10-55°C, 8-Pin Plug
$21.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA Analog Timer offers precise time setting capabilities for various applications. With an operating voltage range of 100-240V AC and an ambient temperature tolerance of -10 to 55°C, this timer ensures reliable performance in diverse environmental conditions. Featuring Power On Delay output operation and Instantaneous SPST and Time-Limit SPDT control outputs, this timer is suitable for controlling power-on start operations. It complies with European CE and cULus standards, making it a trusted choice for institutional and government procurement.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
75 g
Specifications Approximate Weight
122.2 g
Specifications Control Output
Instantaneous Single Pole Single Throw (SPST) (1A): 1 | Time-Limit Single Pole Double Throw (SPDT) (1C): 1
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications List Price
21.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Power On Delay
Specifications Protection Structure
Ingress Protection (IP) 40 (Front Panel)
Specifications Setting Range
0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 1 to 10 Minute | 1 to 10 Second
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Start
Specifications Weight
0.2 lb
