Autonics USA Analog Timer - 100-240V AC, -10 to 50°C Ambient Temp
Autonics USA Analog Timer - 100-240V AC, -10 to 50°C Ambient Temp
SKU:PRO-32612b
Versatile 6-mode Analog Timer - 100-240V AC, -10 to 50°C Ambient Temp | CE, cULus Approved
Regular price
$43.95
Regular price
Sale price
$43.95
Unit price
per
Initiate Order
Autonics USA Analog Timer - 100-240V AC, -10 to 50°C Ambient Temp
$43.95
Quantity: 1
Claim Your Seller Account
Autonics USA Analog Timer - 100-240V AC, -10 to 50°C Ambient Temp
$43.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

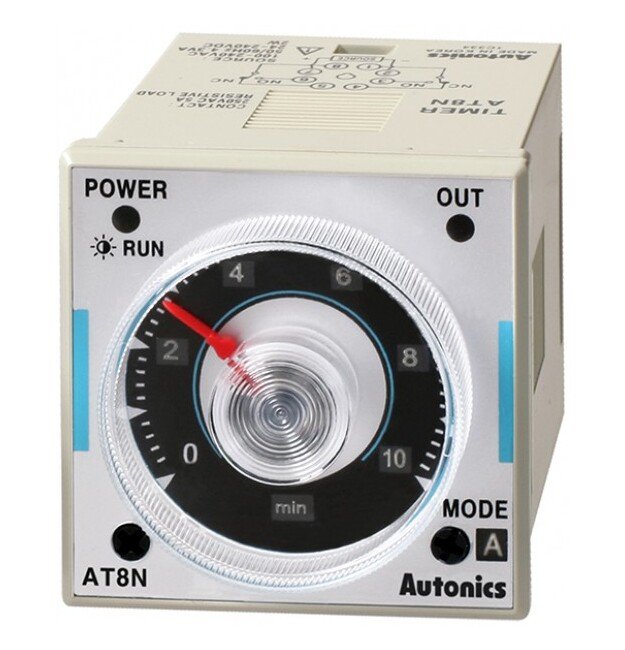

The Autonics USA Analog Timer is a versatile 6-mode, multi-range timer designed for precise time setting operations. With dual SPDT or DPDT output options, this timer operates at 100-240V AC and 24-240V DC. It offers a wide setting range from seconds to hours and is approved by CE and cULus for safety compliance. Suitable for ambient temperatures ranging from -10 to 50°C, this timer is ideal for various industrial applications requiring accurate time control.
Product Specifications
Accessories Accessories
Bracket
Note Note
Sockets (8-pin sockets: PG-08, PS-08(N)/11-pin sockets: PG-11, PS-11(N)) are sold separately.Refer to time specifications for control time setting range by model.The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
86.71 g
Specifications Approximate Weight
134.12 g
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2 or Instantaneous Single Pole Double Throw (SPDT) (1C): 1 + Time-Limit SPDT (1C): 1 Depending on Output Operation Mode
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications List Price
43.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Power On Delay
Specifications Setting Range
0.05 to 0.5 Hour | 0.05 to 0.5 Minute | 0.05 to 0.5 Second | 0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 0.5 to 5 Hour | 0.5 to 5 Minute | 0.5 to 5 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second | 10 to 100 Hour | 5 to 50 Hour
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Start
Specifications Weight
0.35 lb
