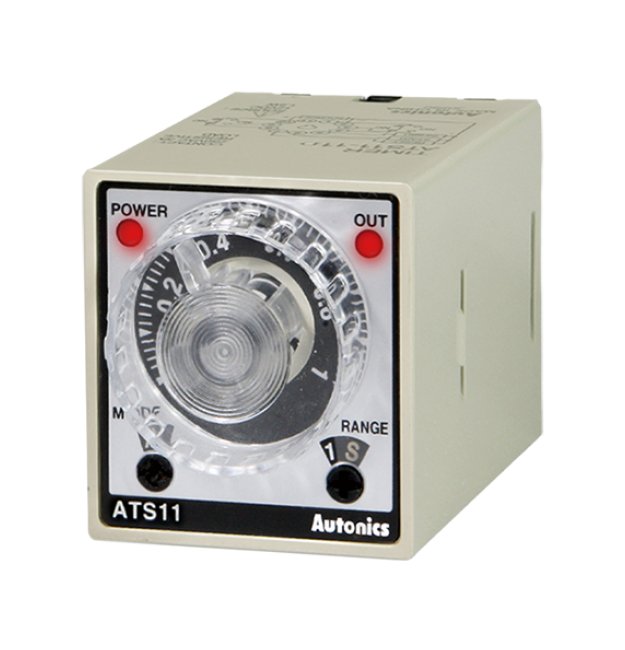

Autonics USA Analog Timer - Multi-Range 100-240VAC/24-240VDC Small Timer
Autonics USA Analog Timer - Multi-Range 100-240VAC/24-240VDC Small Timer
SKU:PRO-09c359
Boost precision with Autonics USA Analog Timer - Multi-Range 100-240VAC/24-240VDC. 6 modes, DPDT, 11-pin plug, CE/cULus approved.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA Analog Timer - Multi-Range 100-240VAC/24-240VDC Small Timer
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA Analog Timer - Multi-Range 100-240VAC/24-240VDC Small Timer
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
Enhance efficiency and precision with the Autonics USA Analog Timer. This small timer features a multi-range setting from 0.1 sec to 10 hours, DPDT, and 11-pin plug. Operates on 100-240VAC/24-240VDC, with approval from CE and cULus. Ideal for various applications requiring time setting and time-limit control.
Product Specifications
Accessories Accessories
Bracket
Function Function
Signal on Start
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT)(2C)
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2
Specifications Control Time Setting Range
0.1 Second to 10 Hour
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Signal Off Delay | Signal On Delay | Signal On-Off Delay
Specifications Setting Range
0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second
Specifications Signal Input Method
No-Voltage Input (Negative Positive Negative (NPN))
Specifications Terminal
11-Pin Plug
Specifications Time Operation
Signal On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
