Autonics USA Analog Timer - Small Multi-Range DPDT/SPDT - 100-240VAC/24-240V
Autonics USA Analog Timer - Small Multi-Range DPDT/SPDT - 100-240VAC/24-240V
SKU:PRO-92f62a
Precision Small Analog Timer for Various Industrial Applications, Multi-Range Setting, CE and cULus Approved
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA Analog Timer - Small Multi-Range DPDT/SPDT - 100-240VAC/24-240V
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA Analog Timer - Small Multi-Range DPDT/SPDT - 100-240VAC/24-240V
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

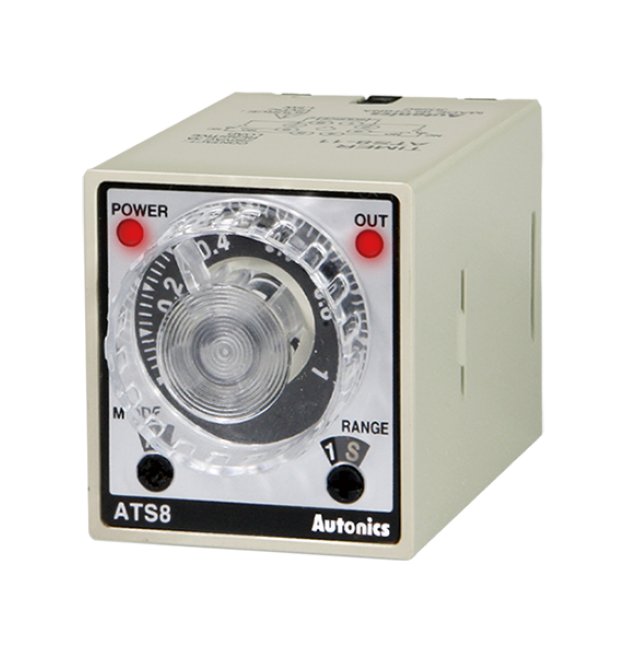

The Autonics USA Small Analog Timer offers precise time control with a multi-range setting from 0.1 Sec to 10 Hours. This timer operates on alternating current voltage of 100-240VAC, fitting various industrial applications. With DPDT or 2 SPDT options, this timer provides flexibility in output operation. Approved by CE and cULus, it ensures compliance with European and North American safety standards. Designed for environmental conditions of -10 to 55°C, it guarantees reliable performance in diverse settings.
Product Specifications
Accessories Accessories
Bracket
Function Function
Power on Start
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT) (2C) or Time Limit Single Pole Double Throw (SPDT) (1C) + Instantaneous Single Pole Double Throw (SPDT) (1C):Selectable
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2 or Instantaneous Single Pole Double Throw (SPDT) (1C): 1 + Time-Limit SPDT (1C): 1 Depending on Output Operation Mode
Specifications Control Time Setting Range
0.1 Second to 10 Hour
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Power On Delay
Specifications Setting Range
0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
