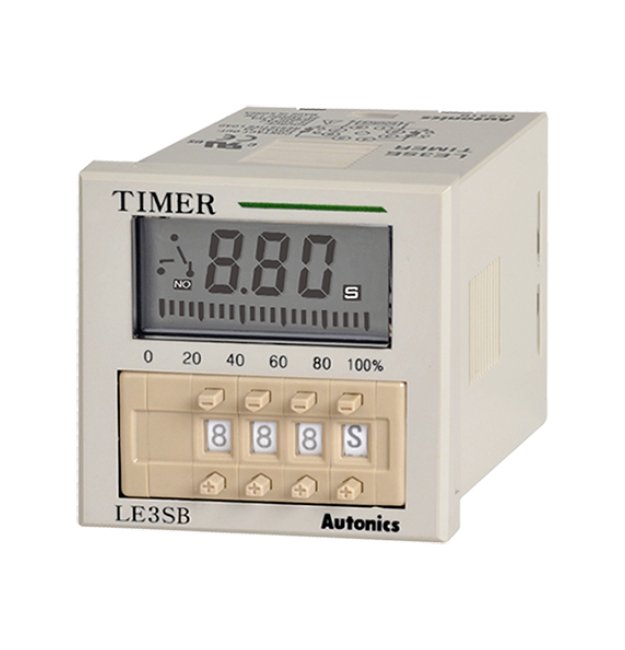

Autonics USA Digital AC Voltage Timer - 24-240V, -10 to 55°C
Autonics USA Digital AC Voltage Timer - 24-240V, -10 to 55°C
SKU:PRO-da29b6
Stay precise with Autonics USA Digital AC Voltage Timer - Ideal for industrial control, CE/cULus approved
Regular price
$92.95
Regular price
Sale price
$92.95
Unit price
per
Initiate Order
Autonics USA Digital AC Voltage Timer - 24-240V, -10 to 55°C
$92.95
Quantity: 1
Claim Your Seller Account
Autonics USA Digital AC Voltage Timer - 24-240V, -10 to 55°C
$92.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA Digital AC Voltage Timer offers precise countdown and up functions with a setting range from seconds to hours, ideal for industrial control applications. Featuring a 3-Digit LCD display, SPDT relay outputs, and CE/cULus approvals, this timer ensures reliable operation in temperatures ranging from -10 to 55°C. With a compact design and easy installation using the included bracket, this timer enhances efficiency and accuracy in timing operations.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Accessories Accessories
Bracket
Function Function
Multi-time, Power on Delay Operation
Specifications Alternating Current Ac Voltage
24 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Weight
105 g
Specifications Contact Type
Instantaneous Single Pole Double Throw (SPDT) (1C) | Time Limit Single Pole Double Throw (SPDT) (1C)
Specifications Control Output Relay
Instantaneous Single Pole Double Throw (SPDT) (1C): 1 | Time-Limit Single Pole Double Throw (SPDT) (1C): 1
Specifications Digit
3
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Display Method
3-Digit 7-Segment Liquid Crystal Display (LCD)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
48 mm
Specifications List Price
92.95 USD
Specifications Operation Method
Count Down | Count Up
Specifications Output Operation
Power On Delay
Specifications Setting Range
0 Hour 01 Minute to 9 Hour 59 Minute | 0 Minute 01 Second to 9 Minute 59 Second | 0.01 Second to 9.99 Second | 0.1 Hour to 99.9 Hour | 0.1 Minute to 99.9 Minute | 0.1 Second to 99.9 Second | 1 Hour to 999 Hour | 1 Minute to 999 Minute | 1 Second to 999 Second | 10 Hour to 9990 Hour
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Delay
Specifications Type
Liquid Crystal Display (LCD)
Specifications Weight
0.37 lb
Specifications Width
48 mm
