Autonics USA Dual PID Temperature Controller, 100-240V AC
Autonics USA Dual PID Temperature Controller, 100-240V AC
SKU:PRO-2254ea
Autonics USA Dual PID Temperature Controller, 100-240V AC. Ideal for precise temperature control in industrial settings.
Regular price
$161.95
Regular price
Sale price
$161.95
Unit price
per
Initiate Order
Autonics USA Dual PID Temperature Controller, 100-240V AC
$161.95
Quantity: 1
Claim Your Seller Account
Autonics USA Dual PID Temperature Controller, 100-240V AC
$161.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

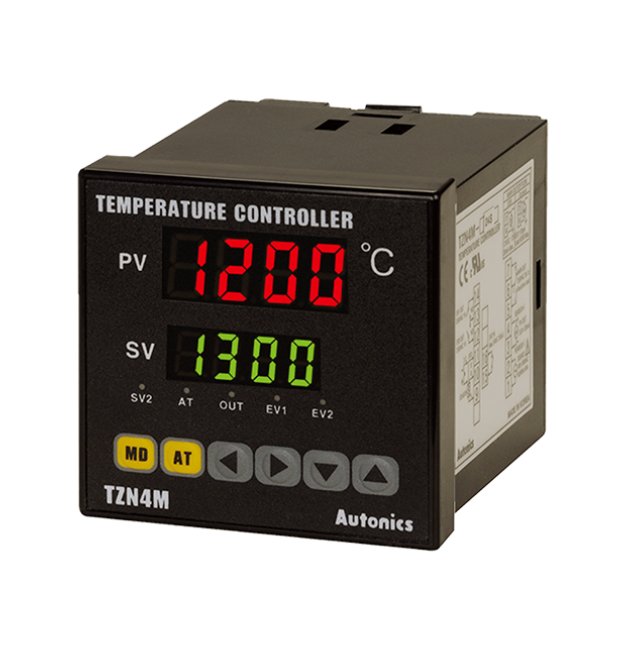

The Autonics USA Dual PID Temperature Controller is a high-precision device designed for precise temperature control in industrial settings. With dimensions of 72x72mm and compatibility with a wide range of input specifications including thermocouples, resistance temperature detectors, and analog inputs, this controller offers versatile functionality. It features On/Off Control, P, PD, PI, PIDF, and PIDS control methods, alongside a 4-Digit LED display for clear visibility. Meeting Canadian and US Standards by Underwriters' Laboratories (CURUS) and European Conformity (CE), this controller ensures reliability and safety in operation. With alarm output, relay contact output, and a robust build quality, this temperature controller is an ideal choice for precision temperature management in various industrial applications.
Product Specifications
Specifications Alarm Output
Alarm1
Specifications Alarm Output Hysteresis
1 to 100ºC (0.1 to 100.0ºC) Variable
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Analog Input Specification
0 to 10VDC | 1 to 5VDC | DC 4 to 20mA
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off Control | P | PD | PI | PIDF | PIDS Control
Specifications Control Output
Relay Contact Output
Specifications Control Period
1 to 120 s
Specifications Derivative Time
0 to 3600 s
Specifications Dimensions
72 x 72 mm
Specifications Display Accuracy
F.S ± 0.3% or 3ºC, Select the Higher One
Specifications Display Method
4-Digit 7-Segment Light Emitting Diode (LED)
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Height
72 mm
Specifications Integral Time Range
0 to 3600 s
Specifications Lba Setting
1 to 999
Specifications List Price
161.95 USD
Specifications Note
The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Option Output
Event 1
Specifications Proportional Band
0.0 to 100.0
Specifications Ramp Setting
Ramp Up, Ramp Down: 1 to 99 Minutes Each
Specifications Resistance Temperature Detector Rtd Input Specifi
DPt100Ω | JPt100Ω
Specifications Sampling Cycle
500 ms
Specifications Shipping Weight
246 g
Specifications Thermocouple Input Specification
E(CR) | J(IC) | K(CA) | N(NN) | R(PR) | S(PR) | T(CC) | W(TT)
Specifications Type
Dual PID
Specifications Unit Weight
355 g
Specifications Weight
0.73 lb
Specifications Width
72 mm
