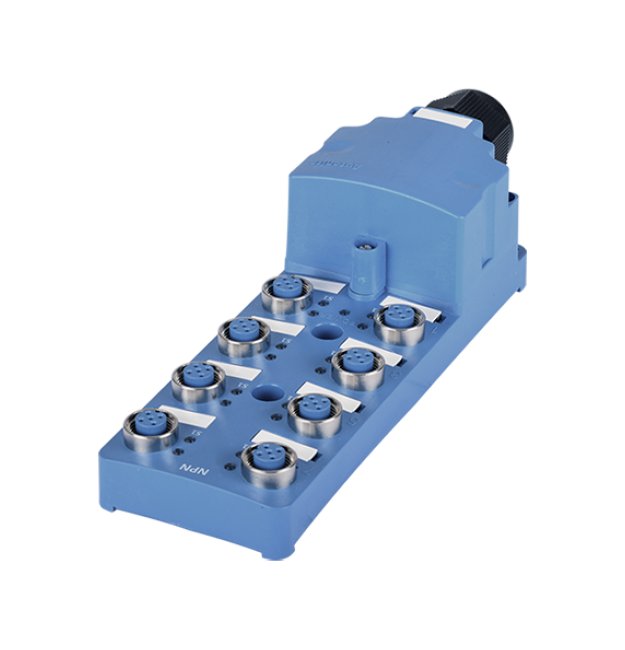

Autonics USA NPN Input Logic 8-Port Distribution Box
Autonics USA NPN Input Logic 8-Port Distribution Box
SKU:PRO-2ddbb0
Autonics USA NPN Input Logic 8-P Distrib. Box, 12-24V DC, CE Approved, IP52/IP67, 8 Ports
Regular price
$122.95
Regular price
Sale price
$122.95
Unit price
per
Initiate Order
Autonics USA NPN Input Logic 8-Port Distribution Box
$122.95
Quantity: 1
Claim Your Seller Account
Autonics USA NPN Input Logic 8-Port Distribution Box
$122.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA NPN Input Logic Distribution Box features cutting-edge Negative-Positive-Negative (NPN) input logic suitable for 12 to 24V DC voltages. With 8 ports, rated current per port at 2A, and a total rated current of 7A, this box ensures reliable signal distribution. Its durable construction, CE approval, and IP52/IP67 protection make it ideal for industrial settings. With a wide operating temperature range and pluggable screw terminals, it offers ease of use and longevity.
Product Specifications
Specifications Approval
European Conformity (CE)
Specifications Box Type
Distribution
Specifications Case Color
Blue
Specifications Case Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Connection Method For External Signal
Pluggable Screw Terminal Type
Specifications Cover Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Cover Nut Material
Polyamide 6 (G15%)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-25 to 75 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-30 to 80 ºC
Specifications Including
Hood Cover
Specifications Input Logic
Negative-Positive-Negative (NPN)
Specifications List Price
122.95 USD
Specifications Minimum Connection Life Cycle Operations
200
Specifications Name Plate Material
Polycarbonate (PC)
Specifications Number Of M12 Connector Pins
5
Specifications Number Of Ports
8
Specifications Output Specification
1-Signal (Direct Current (DC) 3-Wire Type)
Specifications Protection Structure
Ingress Protection (IP) 52 (Protection Cover) | Ingress Protection (IP) 67 (Waterproof Cover)
Specifications Rated Current Per Port
2 A
Specifications Rated Current Per Signal
2 A
Specifications Total Rated Current
7 A
Specifications Unit Weight
210 g
Specifications Weight
0.2 lb
