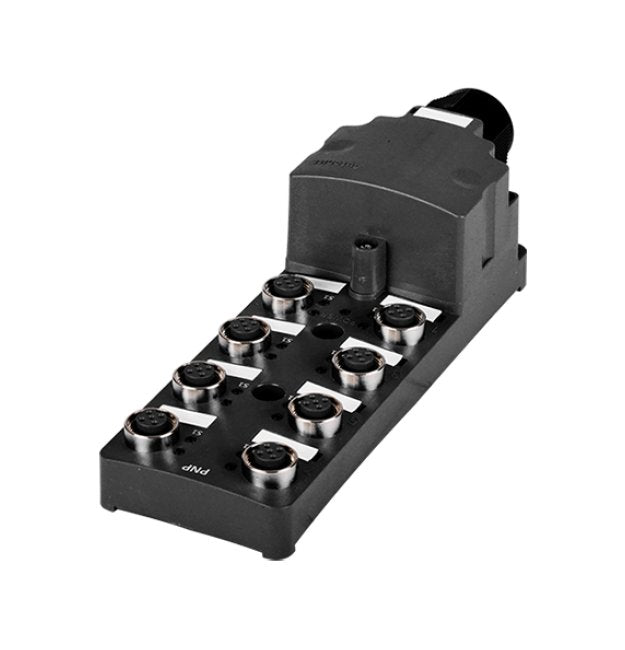

Autonics USA PNP Input Logic 8-Port Distribution Box 12-24V DC Voltage
Autonics USA PNP Input Logic 8-Port Distribution Box 12-24V DC Voltage
SKU:PRO-57cd4b
Enhance signal distribution with Autonics USA PNP Input Logic 8-Port Box. CE approved, IP52/IP67 protection. Ideal for 12-24V DC.
Regular price
$122.95
Regular price
Sale price
$122.95
Unit price
per
Initiate Order
Autonics USA PNP Input Logic 8-Port Distribution Box 12-24V DC Voltage
$122.95
Quantity: 1
Claim Your Seller Account
Autonics USA PNP Input Logic 8-Port Distribution Box 12-24V DC Voltage
$122.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA Positive Negative Positive (PNP) Input Logic Distribution Box provides seamless connectivity with 8 ports delivering signals with precision. Operating at 12 to 24V DC voltage, each port can handle up to 2A, totaling 7A. With a sturdy build and IP52/IP67 protection, this box is CE approved and ensures reliable operation in various environments.
Product Specifications
Specifications Approval
European Conformity (CE)
Specifications Box Type
Distribution
Specifications Case Color
Black
Specifications Case Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Connection Method For External Signal
Pluggable Screw Terminal Type
Specifications Cover Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Cover Nut Material
Polyamide 6 (G15%)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-25 to 75 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-30 to 80 ºC
Specifications Including
Hood Cover
Specifications Input Logic
Positive-Negative-Positive (PNP)
Specifications List Price
122.95 USD
Specifications Minimum Connection Life Cycle Operations
200
Specifications Name Plate Material
Polycarbonate (PC)
Specifications Number Of M12 Connector Pins
5
Specifications Number Of Ports
8
Specifications Output Specification
1-Signal (Direct Current (DC) 3-Wire Type)
Specifications Protection Structure
Ingress Protection (IP) 52 (Protection Cover) | Ingress Protection (IP) 67 (Waterproof Cover)
Specifications Rated Current Per Port
2 A
Specifications Rated Current Per Signal
2 A
Specifications Total Rated Current
7 A
Specifications Unit Weight
210 g
Specifications Weight
0.2 lb
