Autonics USA PNP Input Logic Distribution Box
Autonics USA PNP Input Logic Distribution Box
SKU:PRO-915ea8
Enhance connectivity with Autonics USA's PNP Input Logic Distribution Box. 4 ports, durable construction, and CE approved.
Regular price
$79.95
Regular price
Sale price
$79.95
Unit price
per
Initiate Order
Autonics USA PNP Input Logic Distribution Box
$79.95
Quantity: 1
Claim Your Seller Account
Autonics USA PNP Input Logic Distribution Box
$79.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

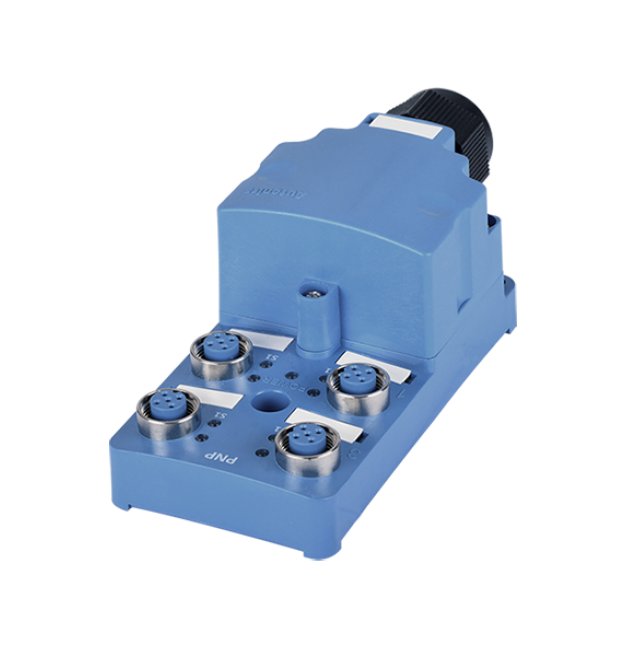

The Autonics USA PNP Input Logic Distribution Box is a versatile solution designed for seamless connectivity with 4 ports and 12 to 24V DC voltage output. With a sturdy construction featuring a polybutylene terephthalate case, this distribution box ensures durability and a long operational life. It comes equipped with an IP52 protection cover, CE approval, and spring terminal type connection for external signals, making it ideal for industrial applications that demand reliability and performance.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Approval
European Conformity (CE)
Specifications Box Type
Distribution
Specifications Case Color
Blue
Specifications Case Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Connection Method For External Signal
Spring Terminal Type
Specifications Cover Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Cover Nut Material
Polyamide 6 (G15%)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-25 to 75 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-30 to 80 ºC
Specifications Including
Hood Cover
Specifications Input Logic
Positive-Negative-Positive (PNP)
Specifications List Price
79.95 USD
Specifications Minimum Connection Life Cycle Operations
200
Specifications Name Plate Material
Polycarbonate (PC)
Specifications Number Of M12 Connector Pins
5
Specifications Number Of Ports
4
Specifications Output Specification
1-Signal (Direct Current (DC) 3-Wire Type)
Specifications Protection Structure
Ingress Protection (IP) 52 (Protection Cover) | Ingress Protection (IP) 67 (Waterproof Cover)
Specifications Rated Current Per Port
2 A
Specifications Rated Current Per Signal
2 A
Specifications Total Rated Current
7 A
Specifications Unit Weight
140 g
Specifications Weight
0.2 lb
