Autonics USA PNP Input Logic Distribution Box, 8 Ports, 12-24V DC
Autonics USA PNP Input Logic Distribution Box, 8 Ports, 12-24V DC
SKU:PRO-683e2d
Autonics USA PNP Input Logic Distribution Box with 8 Ports, 12-24V DC. Reliable performance and durable design for industrial applications.
Regular price
$122.95
Regular price
Sale price
$122.95
Unit price
per
Initiate Order
Autonics USA PNP Input Logic Distribution Box, 8 Ports, 12-24V DC
$122.95
Quantity: 1
Claim Your Seller Account
Autonics USA PNP Input Logic Distribution Box, 8 Ports, 12-24V DC
$122.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

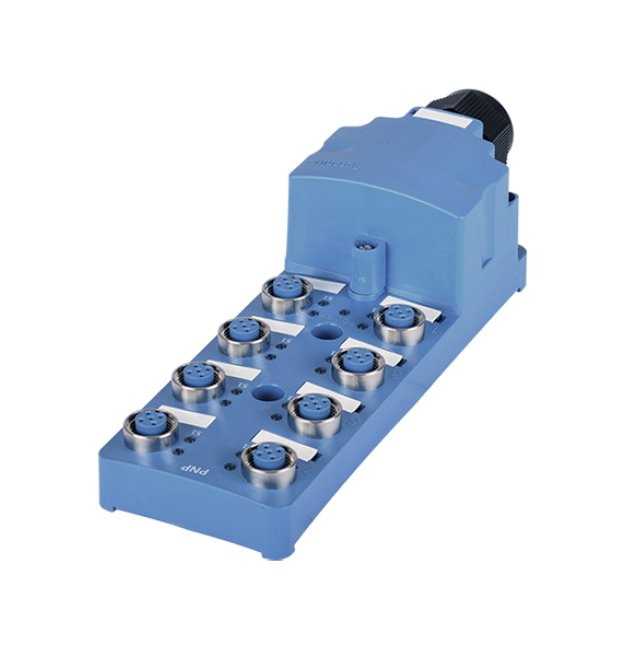

The Autonics USA Positive Negative Positive (PNP) Input Logic Distribution Box features 8 ports with a direct current (DC) voltage range of 12 to 24V. Designed for reliability, it offers a rated current of 2A per signal and per port, with a total rated current of 7A. This distribution box is built with high-quality materials, including a polybutylene terephthalate (PBT) case and a polycarbonate name plate, ensuring durability in various environments. With IP52 and IP67 protection ratings, CE certification, and a wide temperature range, this distribution box is ideal for industrial applications.
Product Specifications
Specifications Approval
European Conformity (CE)
Specifications Box Type
Distribution
Specifications Case Color
Blue
Specifications Case Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Connection Method For External Signal
Pluggable Screw Terminal Type
Specifications Cover Material
Polybutylene Terephthalate (PBT) (G15%)
Specifications Cover Nut Material
Polyamide 6 (G15%)
Specifications Direct Current Dc Voltage
12 to 24 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-25 to 75 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-30 to 80 ºC
Specifications Including
Hood Cover
Specifications Input Logic
Positive-Negative-Positive (PNP)
Specifications List Price
122.95 USD
Specifications Minimum Connection Life Cycle Operations
200
Specifications Name Plate Material
Polycarbonate (PC)
Specifications Number Of M12 Connector Pins
5
Specifications Number Of Ports
8
Specifications Output Specification
1-Signal (Direct Current (DC) 3-Wire Type)
Specifications Protection Structure
Ingress Protection (IP) 52 (Protection Cover) | Ingress Protection (IP) 67 (Waterproof Cover)
Specifications Rated Current Per Port
2 A
Specifications Rated Current Per Signal
2 A
Specifications Total Rated Current
7 A
Specifications Unit Weight
210 g
Specifications Weight
0.2 lb
