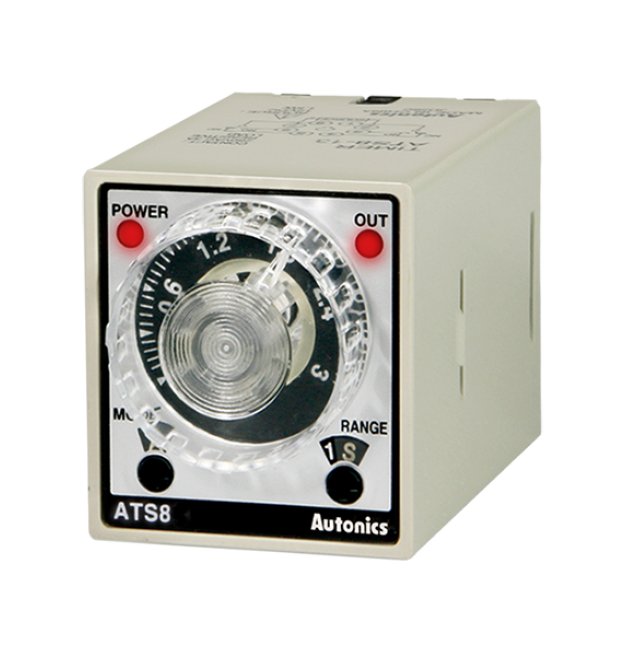

Autonics USA Small Analog Timer
Autonics USA Small Analog Timer
SKU:PRO-1a8b66
Precise Autonics USA Analog Timer for reliable time-setting operations in diverse environments. CE and cULus certified.
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA Small Analog Timer
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA Small Analog Timer
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA Small Analog Timer is a versatile time-setting device designed for precise control operations. With a wide voltage range of 100 to 240VAC and temperature tolerance from -10 to 55 degrees Celsius, this timer offers reliable performance in various environments. It features multiple modes, including flicker, interval, and power on delay, catering to different operational needs. The CE and cULus certifications ensure compliance with European and North American safety standards, making it ideal for government and institutional procurement.
Product Specifications
Accessories Accessories
Bracket
Function Function
Power on Start
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT) (2C) or Time Limit Single Pole Double Throw (SPDT) (1C) + Instantaneous Single Pole Double Throw (SPDT) (1C):Selectable
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2 or Instantaneous Single Pole Double Throw (SPDT) (1C): 1 + Time-Limit SPDT (1C): 1 Depending on Output Operation Mode
Specifications Control Time Setting Range
0.3 Second to 30 Hour
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Power On Delay
Specifications Setting Range
0.3 to 3 Hour | 0.3 to 3 Minute | 0.3 to 3 Second | 3 to 30 Hour | 3 to 30 Minute | 3 to 30 Second
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
