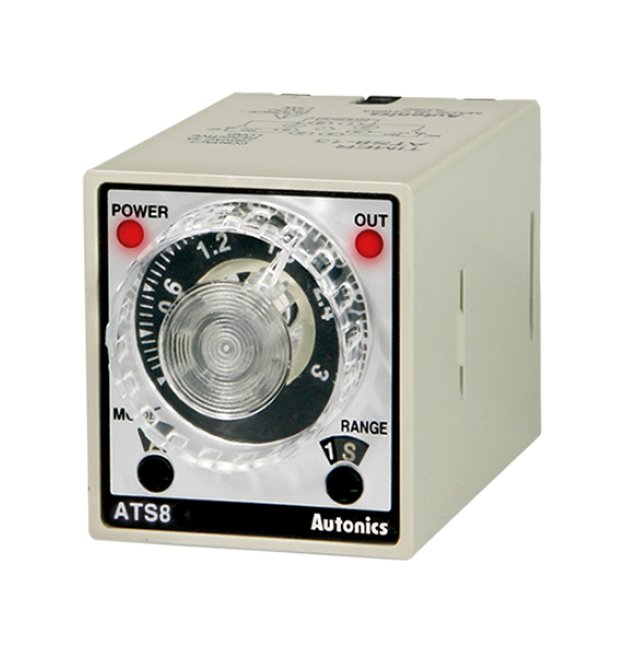

The Autonics USA Small Analog Timer offers precise time-setting capabilities for a wide range of applications. With a multi-range setting from 0.3 seconds to 30 hours, this timer provides flexibility and accuracy in controlling operations. It features DPDT or 2 SPDT options, 8-pin plug terminal, and control output suitable for various functions. Approved by CE and cULus, this analog timer operates efficiently in environments with temperatures ranging from -10 to 55 degrees Celsius. Its compact design, weighing only 70g, and accessories like the bracket make installation easy and convenient.
Product Specifications
Accessories Accessories
Bracket
Function Function
Power on Start
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT) (2C) or Time Limit Single Pole Double Throw (SPDT) (1C) + Instantaneous Single Pole Double Throw (SPDT) (1C):Selectable
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2 or Instantaneous Single Pole Double Throw (SPDT) (1C): 1 + Time-Limit SPDT (1C): 1 Depending on Output Operation Mode
Specifications Control Time Setting Range
0.3 Second to 30 Hour
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Power On Delay
Specifications Setting Range
0.3 to 3 Hour | 0.3 to 3 Minute | 0.3 to 3 Second | 3 to 30 Hour | 3 to 30 Minute | 3 to 30 Second
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
