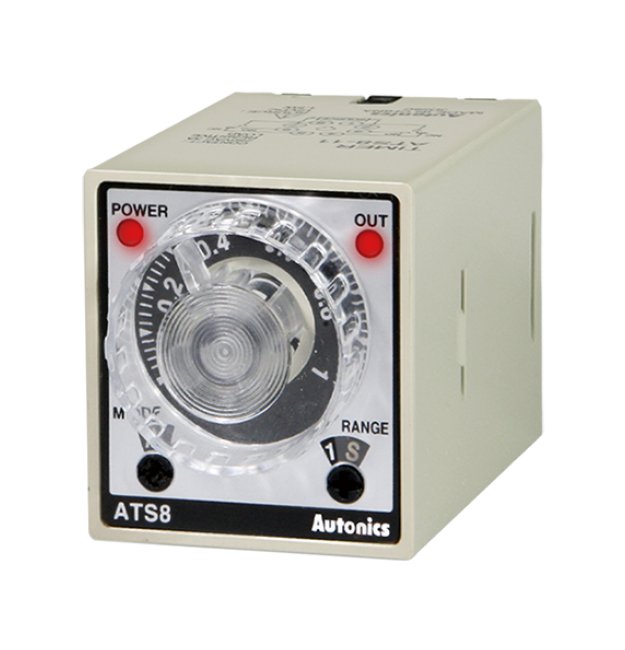

Autonics USA Small Analog Timer - 24VDC Voltage, -10 to 55°C Ambient Temp
Autonics USA Small Analog Timer - 24VDC Voltage, -10 to 55°C Ambient Temp
SKU:PRO-41568e
Precision Autonics USA Analog Timer for time-critical operations in -10 to 55°C, 24-240VDC
Regular price
$29.95
Regular price
Sale price
$29.95
Unit price
per
Initiate Order
Autonics USA Small Analog Timer - 24VDC Voltage, -10 to 55°C Ambient Temp
$29.95
Quantity: 1
Claim Your Seller Account
Autonics USA Small Analog Timer - 24VDC Voltage, -10 to 55°C Ambient Temp
$29.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA Small Analog Timer is a versatile 8-pin plug timer designed for precise time-setting operations in a temperature range of -10 to 55°C. With a direct current voltage range of 24 to 240V, this timer offers multiple settings from 0.1 second to 10 hours, catering to different timing needs. Approved by CE and cULus, it ensures reliable performance and adherence to international standards. With SPDT and DPDT output options, this analog timer is ideal for various applications requiring accurate time control.
Product Specifications
Accessories Accessories
Bracket
Function Function
Power on Start
Specifications Approval
European Conformity (CE) | Underwriters Laboratory for Canada and United States (cULus) Listed
Specifications Approximate Net Weight
70 g
Specifications Approximate Weight
95 g
Specifications Contact Type
Time Limit Double Pole Double Throw (DPDT) (2C) or Time Limit Single Pole Double Throw (SPDT) (1C) + Instantaneous Single Pole Double Throw (SPDT) (1C):Selectable
Specifications Control Output
Time-Limit Single Pole Double Throw (SPDT) (1C): 2 or Instantaneous Single Pole Double Throw (SPDT) (1C): 1 + Time-Limit SPDT (1C): 1 Depending on Output Operation Mode
Specifications Control Time Setting Range
0.1 Second to 10 Hour
Specifications Direct Current Dc Voltage
24 to 240 V
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 55 ºC
Specifications Environment Storage Temperature
-25 to 65 ºC
Specifications Height
42 mm
Specifications List Price
29.95 USD
Specifications Operation Method
Time Setting
Specifications Output Operation
Flicker | Interval | Power On Delay
Specifications Setting Range
0.1 to 1 Hour | 0.1 to 1 Minute | 0.1 to 1 Second | 1 to 10 Hour | 1 to 10 Minute | 1 to 10 Second
Specifications Terminal
8-Pin Plug
Specifications Time Operation
Power On Start
Specifications Type
Analog
Specifications Weight
0.56 lb
Specifications Width
38 mm
