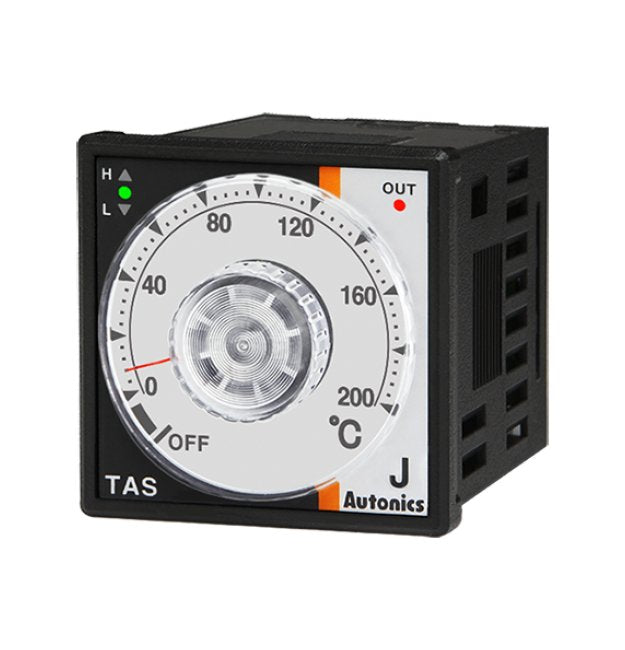

Autonics USA Voltage Temperature Controller
Autonics USA Voltage Temperature Controller
SKU:PRO-452468
Efficiently control temperatures with the Autonics USA Voltage Temperature Controller, featuring PID control and reliable relay output.
Regular price
$51.95
Regular price
Sale price
$51.95
Unit price
per
Initiate Order
Autonics USA Voltage Temperature Controller
$51.95
Quantity: 1
Claim Your Seller Account
Autonics USA Voltage Temperature Controller
$51.95
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Autonics USA Voltage Temperature Controller is a high-performance product designed for precise temperature control in industrial settings. With alternating current voltage support ranging from 100 to 240V, this controller ensures reliable operation across different power systems. It features PID control, relay output, and a J thermocouple for accurate temperature measurement up to 200°C. Approved by renowned certifying bodies like Underwriters' Laboratories (CURUS) and CE, this controller adheres to Canadian, US, and European standards, making it ideal for government and institutional procurement needs.
Product Specifications
Specifications Alternating Current Ac Voltage
100 to 240 V
Specifications Approval
Canadian and US Standards by Underwriters' Laboratories (CURUS) | European Conformity (CE)
Specifications Control Method
On/Off | PID Control Combined
Specifications Control Output
Relay (250 VAC to 3A)
Specifications Dimensions
48 x 48 mm (8 pin plug type)
Specifications Display Method
Non-display
Specifications Environment Ambient Relative Humidity Rh
35 to 85 %
Specifications Environment Ambient Temperature
-10 to 50 ºC
Specifications Environment Storage Relative Humidity Rh
35 to 85 %
Specifications Environment Storage Temperature
-20 to 60 ºC
Specifications Frequency
50 Hz | 60 Hz
Specifications Insulation Type
Double Insulation or Reinforced Insulation (Dielectric Strength Between the Measuring Input Part and the Power Part: AC Power 2kV, AC/DC Power 1kV)
Specifications List Price
51.95 USD
Specifications Note
8-pin socket (PG-08, PS-08(N)) is sold separately.Setting accuracy: Below 100 model is F.S. ±3%Below 100 model is F.S. ±4%, Over 100 model is F.S. ±3%The weight includes packaging. The weight in parenthesis is for unit only.Environment resistance is rated at no freezing or condensation.
Specifications Sampling Cycle
100 ms
Specifications Sensor Input Type
T.C: J(IC)
Specifications Setting Accuracy
F.S. ±2%(Room Temperature 23â±5â)
Specifications Setting Range
0 to 200 ºC
Specifications Setting Type
Dial Setting
Specifications Shipping Weight
69 g
Specifications Size
DIN W48ÃH48mm
Specifications Temperature Range
0 to 200 ºC
Specifications Temperature Unit
ºC
Specifications Thermocouple Input Specification
J(IC)
Specifications Type
Analog
Specifications Unit
C
Specifications Unit Weight
107 g
Specifications Weight
0.37 lb
