Autosealer® 2650 Semi-Auto Control Unit for Pipe Thread Nipples
Autosealer® 2650 Semi-Auto Control Unit for Pipe Thread Nipples
SKU:AUT-bc9aa3
Efficiently apply sealant to pipe thread nipples with the Autosealer® 2650 Semi-Auto Control Unit for precise dispensing and improved productivity.
Regular price
$2,899.99
Regular price
Sale price
$2,899.99
Unit price
per
Initiate Order
Autosealer® 2650 Semi-Auto Control Unit for Pipe Thread Nipples
$2,899.99
Quantity: 1
Claim Your Seller Account
Autosealer® 2650 Semi-Auto Control Unit for Pipe Thread Nipples
$2,899.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

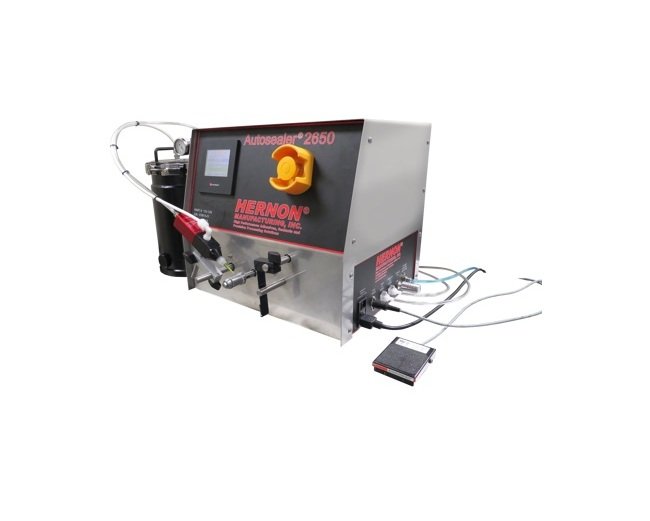

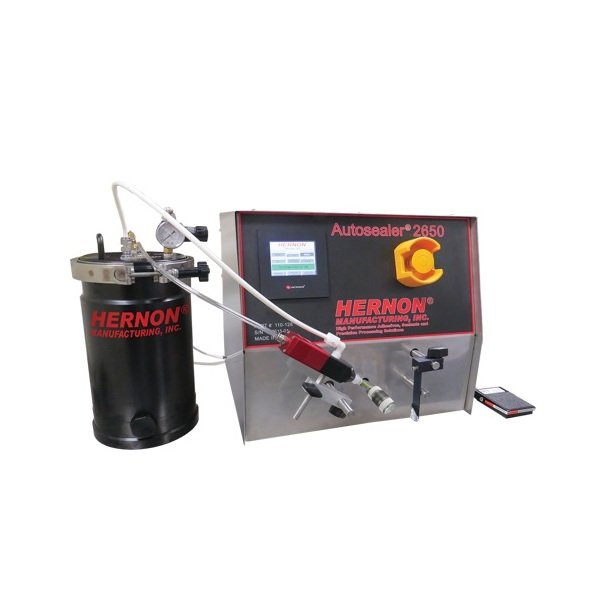

The Autosealer® 2650 Semi-Auto Control Unit is a precision tool designed for applying sealant to pipe thread nipples with efficiency and accuracy. It features compatibility with the Sureshot® 2200 or 4000 dispensing valves, enabling seamless operation. This unit can be easily triggered manually using a footswitch or the PLC/HMI color touchscreen button, allowing for flexible control. With adjustable settings for different fluid viscosities, dual-fan cooling, and a standard 1-year warranty, the Autosealer® 2650 is ideal for enhancing production output and ensuring product quality in industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Air Pressure Maximum Air Pressure
100 psi
Air Pressure Minimum Air Pressure
70 psi
Features Features
Produce more parts in less timeAdaptable for different fluid viscositiesImprove product quality with precision dispensing
Housing Dimensions Height
14.5 in
Housing Dimensions Length
16.5 in
Housing Dimensions Width
14 in
System Includes System Includes
2650 Control Unit1 Set Of Conventional Tooling (Spindle Fittings)Sureshot® ValveFoot SwitchTubing
Technical Specs Alternating Current Ac Voltage
110 V | 220 V
Technical Specs Brands
Hernon Manufacturing, Inc
Technical Specs Cooling
Dual-Fan Arrangement | Filtered
Technical Specs Dispensing Valve Options
Sureshot® 2200 (low to medium viscosity fluids): 4 optionsSureshot® 4000 (medium to high viscosity fluids): 4 options
Technical Specs Internal Power Supply Voltage
24 V
Technical Specs Seal Threaded Pipe Size
1/8 to 2 in
Technical Specs Supply Options
R125, 1 Gal. Pressure Reservoir: Pt# 110-100R200, 10 Gal. Pressure Reservoir: Pt# 110-102850ml Cartridge Retainer: Pt# 110-056
Technical Specs Thread Size
1/4 in
Technical Specs Thread Type
National Pipe Thread (NPT)
Technical Specs Warranty
Standard 1 year from purchase date
Technical Specs Weight
40 lb | 18.14 kg
