Aventics CD07 4-Way 2-Position Manual Operators
Aventics CD07 4-Way 2-Position Manual Operators
SKU:DRI-6a90e5
Compact and reliable Aventics CD07 manual operators for drilling rig air valves. Perfect for dual pressure applications. Quality design for superior performance.
Regular price
$29.99
Regular price
Sale price
$29.99
Unit price
per
Initiate Order
Aventics CD07 4-Way 2-Position Manual Operators
$29.99
Quantity: 1
Claim Your Seller Account
Aventics CD07 4-Way 2-Position Manual Operators
$29.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

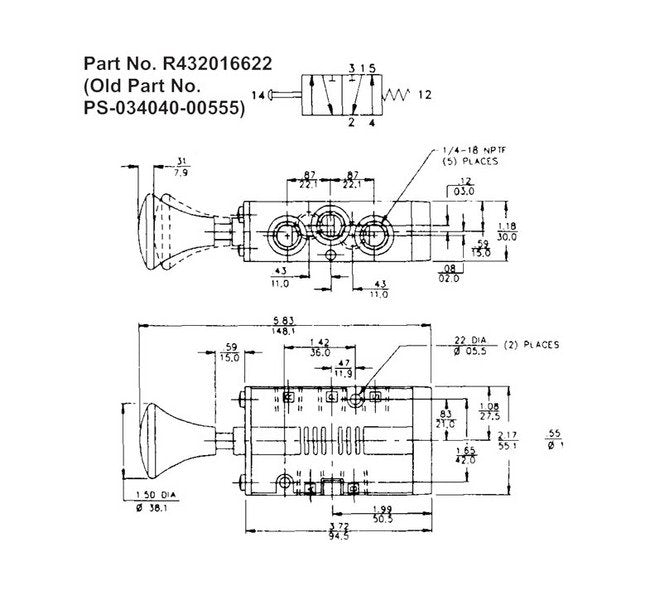

The Aventics CD07 4-Way 2-Position 1/4" NPT Manual Operators are engineered for excellence in drilling rig air valve applications. With a working pressure of up to 150 psi and a temperature range from -20º to +175ºF, these operators offer reliable performance in demanding conditions. Crafted from premium materials like zinc die casting for the body and stainless steel for the spools, they ensure durability and longevity. The compact and versatile design of the CD07 valves not only enhances equipment aesthetics but also optimizes engineering space efficiency. Ideal for dual pressure applications, these operators deliver consistent, trouble-free operation.
Product Specifications
Specifications Body Material
Zinc Die Casting
Specifications Design
Spring Return
Specifications Flow
Cv = 1.1
Specifications Media
Air (Lubricated or non-lubricated)
Specifications Old Part
PS 034040-0555 | PS 34040-0555 | PS-034040-00555 | PS034040-0555 | PS34040-0555
Specifications Port Size
1/4" NPT
Specifications Spools Material
Stainless Steel
Specifications Temperature Range
-20 to +175 ºF
Specifications Type
Knob
Specifications Working Pressure
150 psi
