Aventics CD07 4-Way Manual Operators
Aventics CD07 4-Way Manual Operators
SKU:DRI-19a3a5
Versatile Aventics CD07 4-Way Manual Operators for precise control in drilling rig air valve applications. Reliable, compact design with zinc die-cast body and stainless steel spools.
Regular price
$34.99
Regular price
Sale price
$34.99
Unit price
per
Initiate Order
Aventics CD07 4-Way Manual Operators
$34.99
Quantity: 1
Claim Your Seller Account
Aventics CD07 4-Way Manual Operators
$34.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aventics CD07 4-Way Manual Operators offer precise control with a 1/4" NPT port size, working pressure up to 150 psi, and a Cv of 1.1. Constructed with a durable zinc die-cast body and stainless steel spools, these valves are designed for reliability and ease of operation. The compact and versatile design enhances equipment appearance while saving engineering space, making it an ideal choice for drilling rig air valve applications in Marine, Mobile, and Oil Field settings.
Product Specifications
Specifications Body Material
Zinc Die Casting
Specifications Design
w/o Spring Return
Specifications Flow
Cv = 1.1
Specifications Media
Air (Lubricated or non-lubricated)

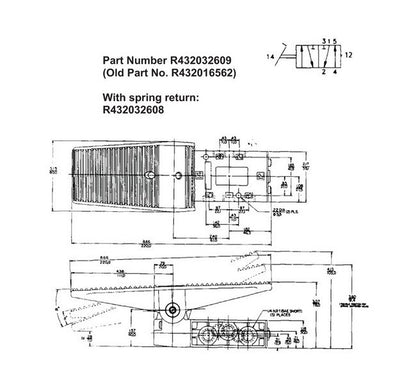

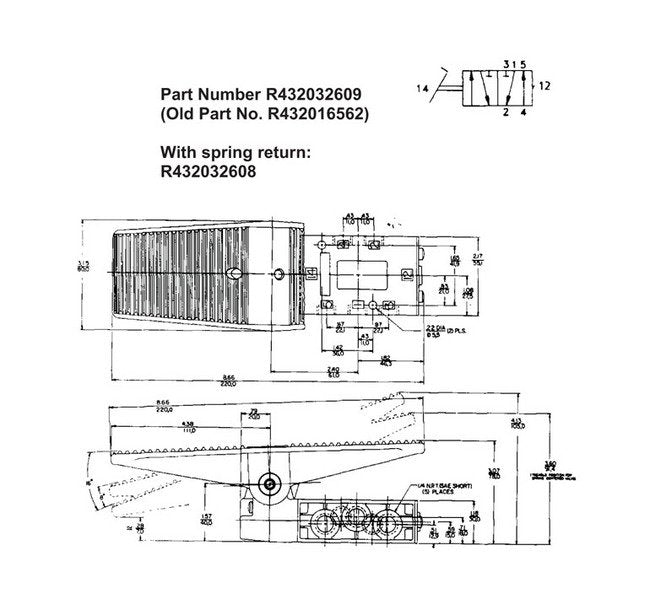

Specifications Old Part
R432016562
Specifications Port Size
1/4" NPT
Specifications Spools Material
Stainless Steel
Specifications Temperature Range
-20 to +175 ºF
Specifications Type
Treadle
Specifications Working Pressure
150 psi
