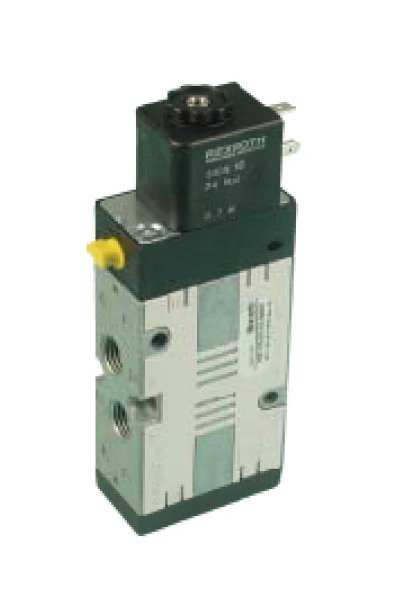

Aventics CD07 4-Way Solenoid Valves, 5/2

Aventics CD07 4-Way Solenoid Valves, 5/2

DRI-b26d7b

Reliable Aventics CD07 4-Way Solenoid Valves for precise control in demanding industrial applications.

$249.99
$249.99
Sale

Initiate Order

Aventics CD07 4-Way Solenoid Valves, 5/2

Aventics CD07 4-Way Solenoid Valves, 5/2

$249.99

Quantity: 1

Claim Your Seller Account

Aventics CD07 4-Way Solenoid Valves, 5/2

Aventics CD07 4-Way Solenoid Valves, 5/2

$249.99

Quantity: 1

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details
The Aventics CD07 4-Way Solenoid Valves are designed for precision control in demanding industrial applications. With port sizes of 1/4" NPT and a working pressure up to 150 PSI, these valves provide reliable operation. Featuring Buna-N seals and a temperature range from +5ºF to +175ºF, they are suitable for a wide range of media. The innovative design allows for stacking and easy installation, while optional solenoid connectors enhance functionality. Ideal for marine, mobile, and oil field environments, these valves ensure efficient performance and space-saving functionality.

Product Specifications

Additional Specifications Additional Specifications
Flow: Cv 1.1Temperature Range:Solenoid Valve +5ºF to +120ºFAir Pilot -20ºF to +175ºFExplosion Proof Solenoid: 0º to +150ºFMedia: Air (either lubricated or non-lubricated)Seals: Buna-NManual Override: LockingAll Standard valves are rated for NEMA 4. Brad Harrison® coils available - consult factory.
Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features

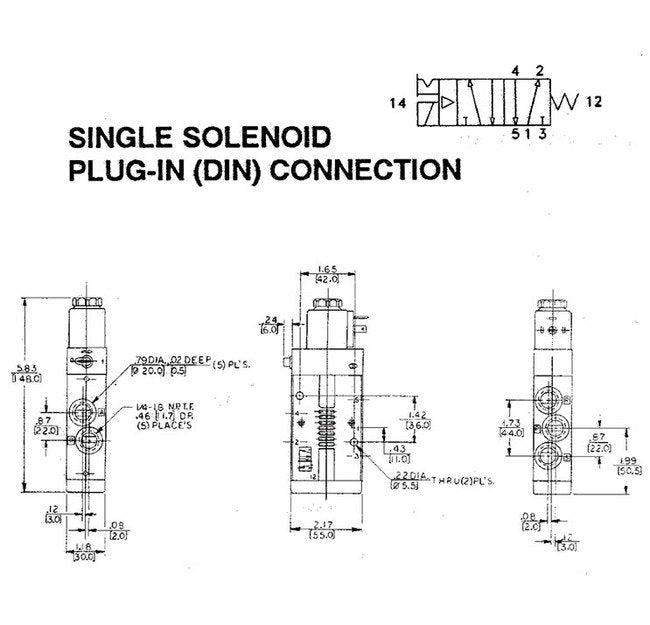

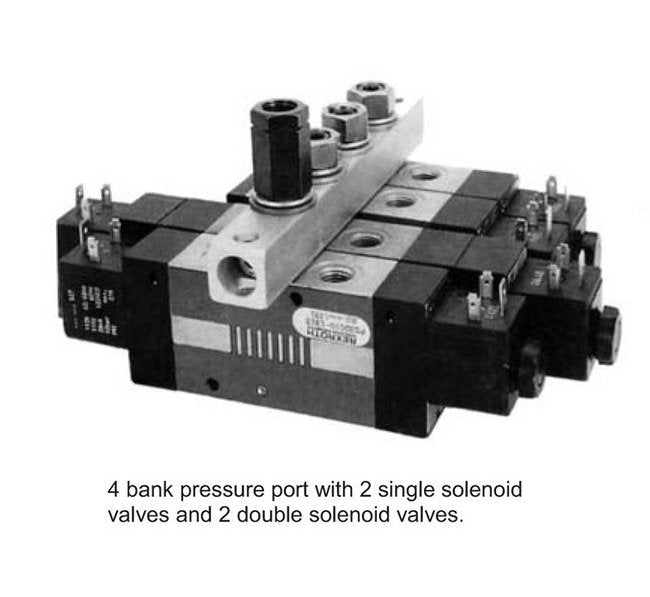

The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Flow
Cv
Specifications Input Power
110V-50Hz/120V-60Hz
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 031010-1355 | PS 31010-1355 | PS-031010-01355 | PS031010-1355 | PS31010-1355
Specifications Pilot
Internal
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Air Pilot
-20 to +175 ºF
Specifications Temperature Range Solenoid Valve
+5 to +120 ºF
Specifications Type
Single Solenoid 4-Way, 2 Position
Specifications Working Pressure
Vacuum service to 150 PSI
