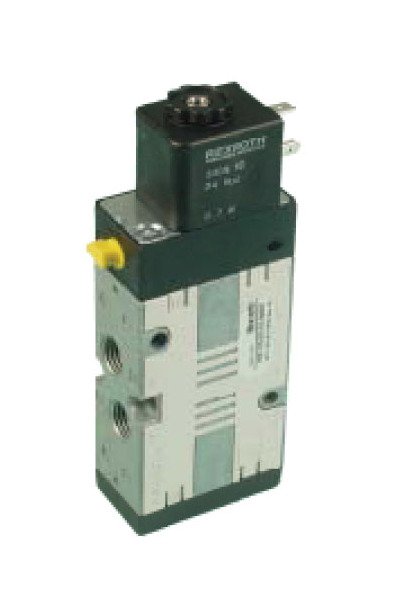

Aventics CD07 5/2 Solenoid Valves
Aventics CD07 5/2 Solenoid Valves
SKU:DRI-af9622
Reliable Aventics CD07 5/2 Solenoid Valves for efficient 4-way/2-position operation. Compact design saves space, enhances performance.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Aventics CD07 5/2 Solenoid Valves
$99.99
Quantity: 1
Claim Your Seller Account
Aventics CD07 5/2 Solenoid Valves
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aventics CD07 Single and Double Solenoid Valves offer reliable 4-way/2-position operation with 1/4" NPT port size. With working pressures up to 150 PSI and versatile pilot options, these valves ensure efficient performance in demanding applications. The compact design saves valuable engineering space, while features like manual overrides and easy coil removal enhance usability. Ideal for marine, mobile, and oil field environments, these valves provide durability and consistent operation.
Product Specifications
Additional Specifications Additional Specifications
Flow: Cv 1.1Temperature Range:Solenoid Valve +5ºF to +120ºFAir Pilot -20ºF to +175ºFExplosion Proof Solenoid: 0º to +150ºFMedia: Air (either lubricated or non-lubricated)Seals: Buna-NManual Override: LockingAll Standard valves are rated for NEMA 4. Brad Harrison® coils available - consult factory.
Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features

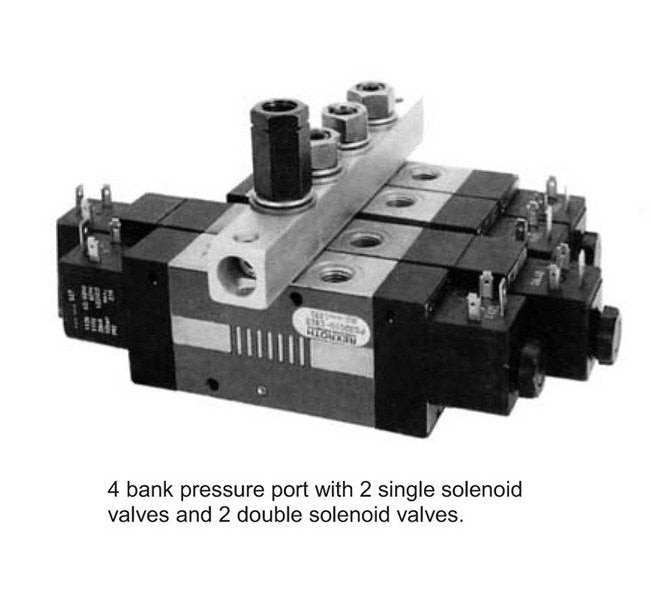

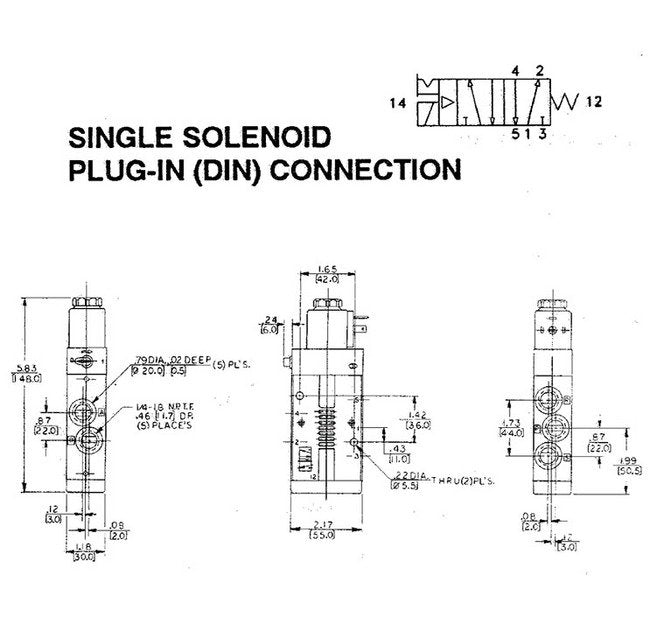

The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Flow
Cv
Specifications Input Power
220V-50Hz/240V-60Hz
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 034010-1655 | PS 34010-1655 | PS-034010-01655 | PS034010-1655 | PS34010-1655
Specifications Pilot
External
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Air Pilot
-20 to +175 ºF
Specifications Temperature Range Solenoid Valve
+5 to +120 ºF
Specifications Type
Single Solenoid 4-Way, 2 Position
Specifications Working Pressure
Vacuum service to 150 PSI
