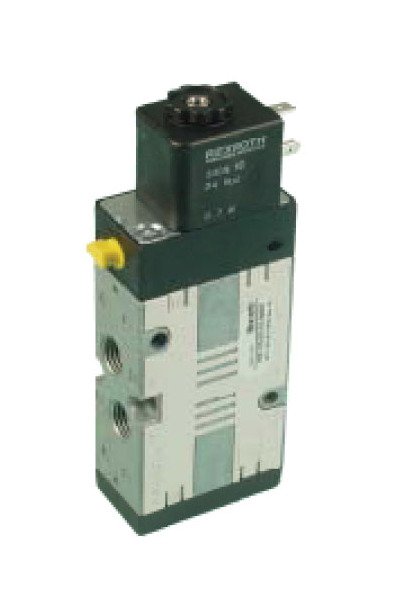

Aventics CD07 Explosion Proof 4-Way Solenoid Valves
Aventics CD07 Explosion Proof 4-Way Solenoid Valves
SKU:DRI-579671
Compact and reliable Aventics CD07 4-Way Solenoid Valves for hazardous locations. NPT port size, vacuum to 150 PSI, CSA and FM compliant.
Regular price
$129.99
Regular price
Sale price
$129.99
Unit price
per
Initiate Order
Aventics CD07 Explosion Proof 4-Way Solenoid Valves
$129.99
Quantity: 1
Claim Your Seller Account
Aventics CD07 Explosion Proof 4-Way Solenoid Valves
$129.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The Aventics CD07 Explosion Proof 4-Way Solenoid Valves offer a reliable solution for hazardous locations, featuring a 1/4" NPT port size, vacuum to 150 PSI working pressure, and Buna-N seals. With a temperature range from 0 to +150 ºF, these valves are designed for air applications in demanding environments. The compact and stackable design, along with options for various operators, make them a versatile choice. Additionally, the valves comply with CSA and FM standards for Class I, Zone 1 and Class I, Div. 1 hazardous locations, ensuring safety and performance in critical settings.
Product Specifications
Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features

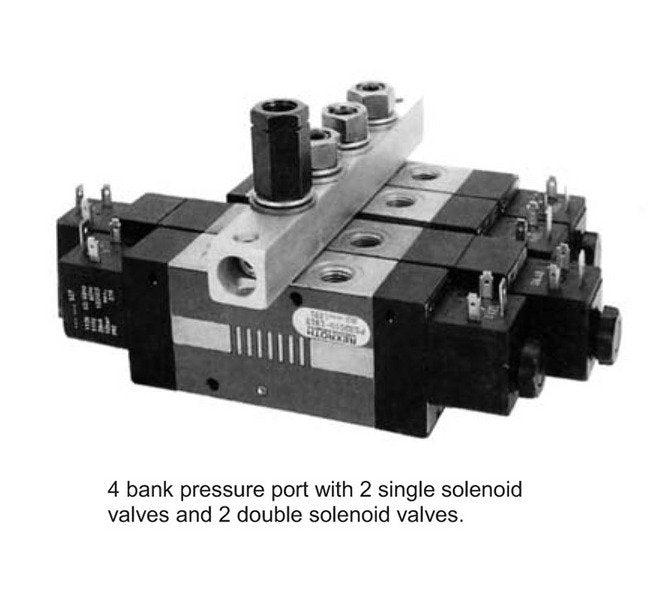

The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Coil Voltage
240 VAC 50/60 Hz
Specifications Flow
Cv
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Explosion Proof Solenoid
0 to +150 ºF
Specifications Type
Single Solenoid
Specifications Working Pressure
Vacuum service to 150 PSI
