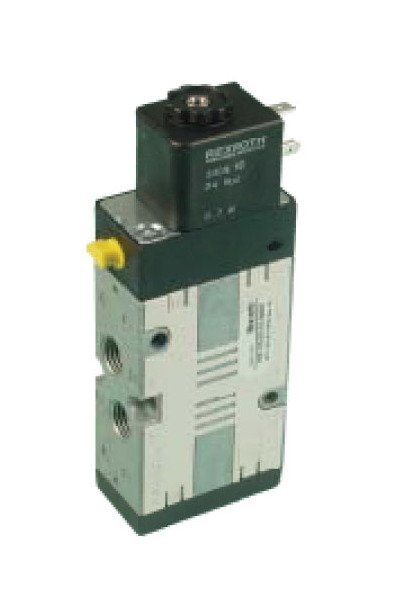

Aventics CD07 Explosion Proof Solenoid Valve - 1/4" NPT

Name: Aventics CD07 Explosion Proof Solenoid Valve - 1/4" NPT
Brand: Distributor To Industry, Inc.
SKU: DRI-8b7001
Price: 189.99 USD
Availability: OutOfStock

SKU:DRI-8b7001

Reliable and compact 1/4" NPT Explosion Proof Solenoid Valve for hazardous locations. Ideal for marine, mobile & oil field applications.

$189.99

Sale

Quantity

Delivery via Maden

Expect your order to arrive on time.

Secure Payments

All orders are processed through a secure, PCI-compliant checkout.

View full details

The Aventics CD07 Explosion Proof Solenoid Valve is a versatile solution designed for hazardous locations. Featuring a 4-way, 2-position configuration, this valve ensures reliable performance and ease of operation. With a working pressure up to 150 PSI, Buna-N seals, and a temperature range from 0 to +150 °F, it meets stringent industrial standards. The compact design saves engineering space while the option for stacking valves simplifies installation. Ideal for marine, mobile, and oil field applications, the CD07 Valve is equipped with manual locking overrides and solenoid connectors for enhanced functionality.

Product Specifications

Electrical Data Electrical Data

Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: Â±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.

Features Features

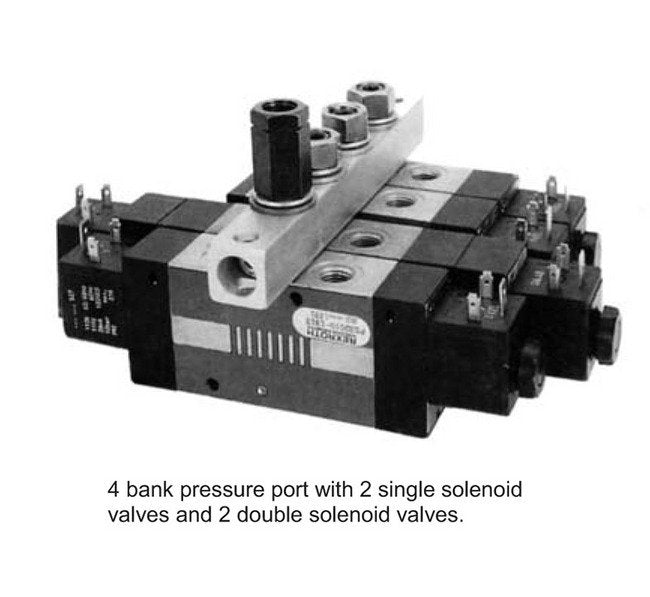

The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar

Specifications Coil Voltage

120 VAC 50/60 Hz

Specifications Flow

Specifications Manual Override

Locking

Specifications Media

Air (either lubricated or non-lubricated)

Specifications Port Size

1/4" NPT

Specifications Seals

Buna-N

Specifications Temperature Range Explosion Proof Solenoid

0 to +150 ÂºF

Specifications Type

Double Solenoid

Specifications Working Pressure

Vacuum service to 150 PSI
