Aventics CD07 Paddle Spring Return Operators
Aventics CD07 Paddle Spring Return Operators
SKU:DRI-6c8682
Enhance drilling rig performance with the durable and efficient Aventics CD07 Paddle Spring Return Operators.
Regular price
$49.99
Regular price
Sale price
$49.99
Unit price
per
Initiate Order
Aventics CD07 Paddle Spring Return Operators
$49.99
Quantity: 1
Claim Your Seller Account
Aventics CD07 Paddle Spring Return Operators
$49.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

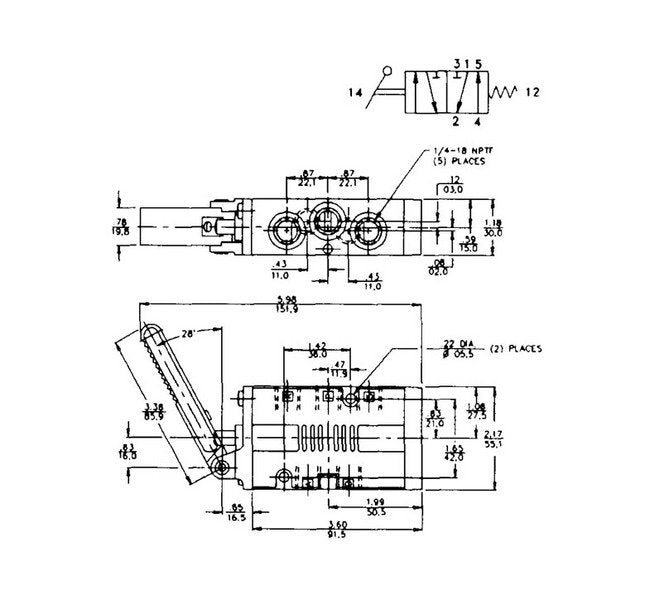

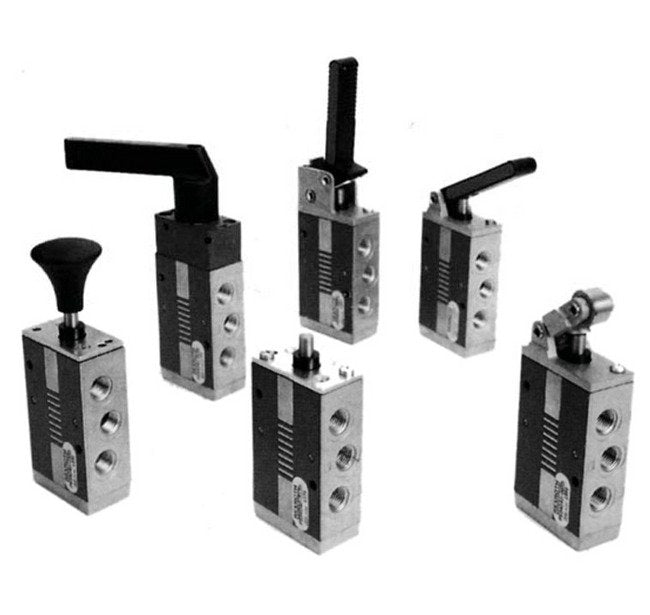

The Aventics CD07 Paddle Spring Return Operators are 4-way, 2-position valves designed for efficiency and reliability in drilling rig applications. With a port size of 1/4" NPT and a working pressure of up to 150 psi, these operators are suitable for vacuum service and dual pressure applications. Constructed with a zinc die-cast body and stainless steel spools, they ensure durability and consistent performance. Ideal for marine, mobile, and oil field use, these compact valves feature a low-profile spool design that optimizes equipment appearance and saves engineering space. Enhance your operational efficiency with the Aventics CD07 Operators.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Specifications Body Material
Zinc Die Casting
Specifications Design
Spring Return
Specifications Flow
Cv = 1.1
Specifications Media
Air (Lubricated or non-lubricated)
Specifications Old Part
PS 034040-0255 | PS 34040-0255 | PS-034040-00255 | PS034040-0255 | PS34040-0255
Specifications Port Size
1/4" NPT
Specifications Spools Material
Stainless Steel
Specifications Temperature Range
-20 to +175 ºF
Specifications Type
Paddle
Specifications Working Pressure
150 psi
