Aventics CD07 Solenoid Valve 5/2, Single & Double Options
Aventics CD07 Solenoid Valve 5/2, Single & Double Options
SKU:DRI-89e1f2
Compact, reliable Aventics CD07 Solenoid Valve for versatile 4-way, 2-position operation in 1/4" NPT ports. Stackable design, manual overrides, and indicator lights for easy operation.
Regular price
$179.99
Regular price
Sale price
$179.99
Unit price
per
Initiate Order
Aventics CD07 Solenoid Valve 5/2, Single & Double Options
$179.99
Quantity: 1
Claim Your Seller Account
Aventics CD07 Solenoid Valve 5/2, Single & Double Options
$179.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

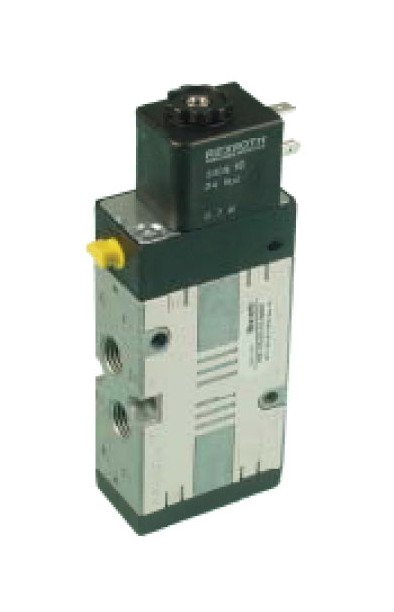

The Aventics CD07 Solenoid Valve offers reliable 4-way / 2-position operation with 1/4" NPT port sizes, suitable for vacuum service up to 150 PSI. Featuring Buna-N seals, it provides a temperature range of +5ºF to +120ºF for the solenoid valve and -20ºF to +175ºF for the air pilot. With a compact and versatile design, this valve ensures consistent performance and ease of operation. Stackable valve bodies, manual locking overrides, and optional solenoid connectors with indicator lights make it a versatile choice for various applications.
Product Specifications
Additional Specifications Additional Specifications
Flow: Cv 1.1Temperature Range:Solenoid Valve +5ºF to +120ºFAir Pilot -20ºF to +175ºFExplosion Proof Solenoid: 0º to +150ºFMedia: Air (either lubricated or non-lubricated)Seals: Buna-NManual Override: LockingAll Standard valves are rated for NEMA 4. Brad Harrison® coils available - consult factory.
Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features

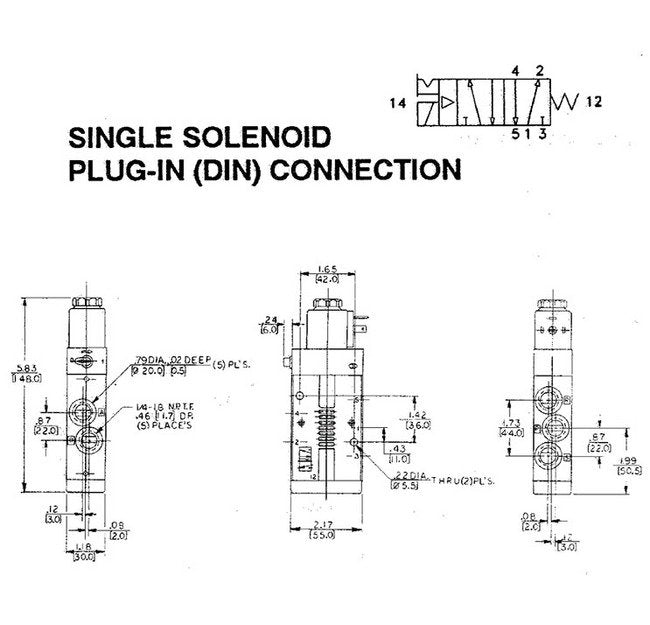

The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Flow
Cv
Specifications Input Power
220V-50Hz/240V-60Hz
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 031010-1655 | PS 31010-1655 | PS-031010-01655 | PS031010-1655 | PS31010-1655
Specifications Pilot
Internal
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Air Pilot
-20 to +175 ºF
Specifications Temperature Range Solenoid Valve
+5 to +120 ºF
Specifications Type
Single Solenoid 4-Way, 2 Position
Specifications Working Pressure
Vacuum service to 150 PSI
