Aventics CD07 Solenoid Valves, 5/2 - Marine & Oil Field Applications
Aventics CD07 Solenoid Valves, 5/2 - Marine & Oil Field Applications
SKU:DRI-aa9ff3
Aventics CD07 Solenoid Valve for marine, mobile, and oil field applications. 4-way/2-position design with 1/4" NPT port size. Vacuum to 150 PSI. Temp range: +5°F to +120°F (solenoid) & -20°F to +175°F (air pilot). Buna-N seals, manual override.
Regular price
$99.99
Regular price
Sale price
$99.99
Unit price
per
Initiate Order
Aventics CD07 Solenoid Valves, 5/2 - Marine & Oil Field Applications
$99.99
Quantity: 1
Claim Your Seller Account
Aventics CD07 Solenoid Valves, 5/2 - Marine & Oil Field Applications
$99.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

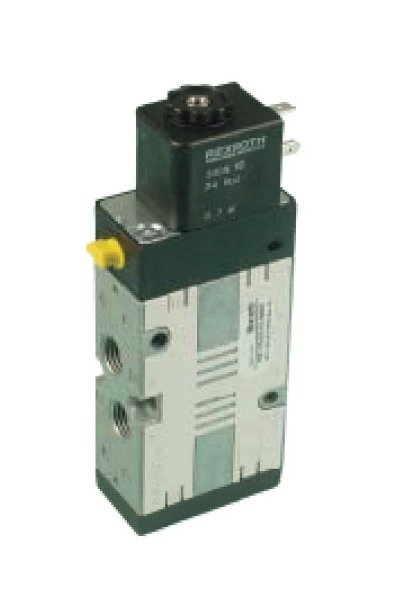

The Aventics CD07 Solenoid Valve, designed for drilling rig air systems in marine, mobile, and oil field applications, features a 4-way/2-position configuration with 1/4" NPT port size. With a working pressure of up to 150 PSI, this valve is suitable for vacuum services as well. Its temperature range, from +5°F to +120°F for the solenoid valve and -20°F to +175°F for the air pilot, ensures reliable operation in various environments. The valve, featuring Buna-N seals and a locking manual override, is compact yet versatile, offering consistent performance and ease of operation.
Product Specifications
Additional Specifications Additional Specifications
Flow: Cv 1.1Temperature Range:Solenoid Valve +5ºF to +120ºFAir Pilot -20ºF to +175ºFExplosion Proof Solenoid: 0º to +150ºFMedia: Air (either lubricated or non-lubricated)Seals: Buna-NManual Override: LockingAll Standard valves are rated for NEMA 4. Brad Harrison® coils available - consult factory.
Electrical Data Electrical Data
Standard Voltage (all coils are rated for continues duty) Power Consumption Inrush Holding 110 VAC 50 Hz/120 VAC 60 Hz 24 VAC 50/60 Hz 6.4 VA 3.7 VA 12, 24 VDC 2.7 W Voltage Tolerance: ±10%NOTE: Electrical connectors must be ordered separately.One per solenoid required, see Solenoid Connectors page.
Features Features

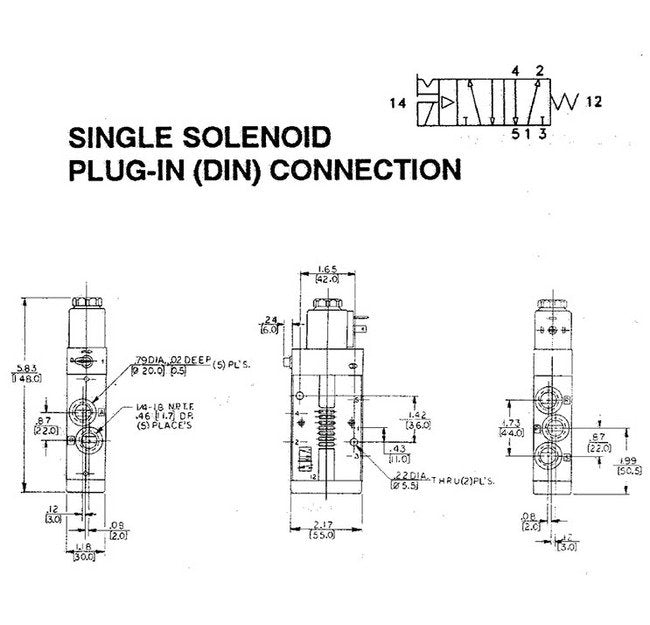

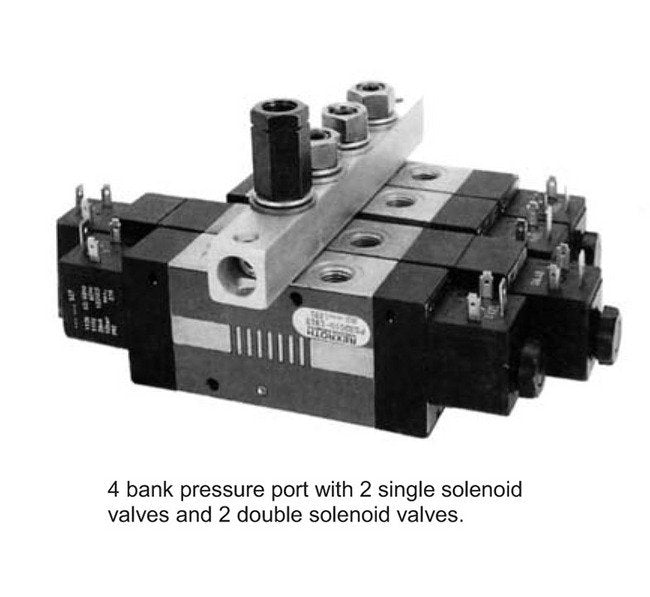

The 1/4" 4-way, 5-ported CD07 Valve is an extremely versatile, yet compact, design. This low-profile spool type design will not only enhance the appearance of your equipment, but will save valuable engineering space. A new simplified internal design allows for consistently reliable performance and ease of operation. The CD07 Valve is available with a wide range of solenoid, air pilot and mechanical operators. This new design allows each valve body to be readily STACKED through a convenient and simplified single pressure port bar. Unique optional solenoid connectors offer neon indicator lights for (AC) circuits and L.E.D. displays for (DC) circuits. Standard Plug-In DIN Connection "Low wattage" (2.1W) solenoid and connector, available with or without built-in indicator light. External Pilot: (not shown) Allows an independent air supply to be connected to the pilot port of the solenoid operator. Manual Locking Overrides: Allow supplementary manual control and permit operating the valve when the electric power is off. Solenoid Coil Removal: Un-screw coil retaining nut and slip off the coil. Seal Spacers: New lightweight acetal cartridge assembly.Manifold System: Common pressure port bar
Specifications Flow
Cv
Specifications Input Power
12 VDC
Specifications Manual Override
Locking
Specifications Media
Air (either lubricated or non-lubricated)
Specifications Old Part
PS 031010-7255 | PS 31010-7255 | PS-031010-07255 | PS031010-7255 | PS31010-7255
Specifications Pilot
Internal
Specifications Port Size
1/4" NPT
Specifications Seals
Buna-N
Specifications Temperature Range Air Pilot
-20 to +175 ºF
Specifications Temperature Range Solenoid Valve
+5 to +120 ºF
Specifications Type
Single Solenoid 4-Way, 2 Position
Specifications Working Pressure
Vacuum service to 150 PSI
