AVLANCAA Single Stage Booster Compressor
AVLANCAA Single Stage Booster Compressor
SKU:NEW-5e422d
Top-performing AVLANCAA Single Stage Booster Compressor for institutional use, meeting industry standards. Optimal Pressure Lubricated design.
Regular price
$6,999.99
Regular price
Sale price
$6,999.99
Unit price
per
Initiate Order
AVLANCAA Single Stage Booster Compressor
$6,999.99
Quantity: 1
Claim Your Seller Account
AVLANCAA Single Stage Booster Compressor
$6,999.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

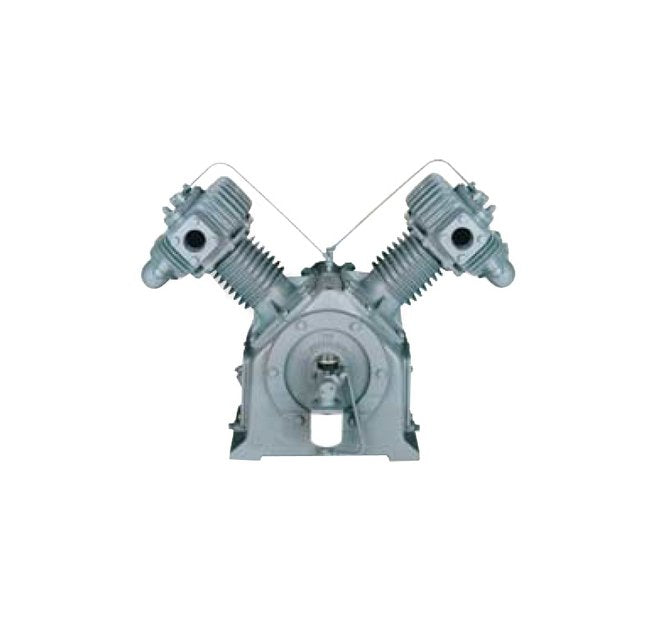

The AVLANCAA Single Stage Booster Compressor from the A Series delivers exceptional performance and reliability in various operations. This bare compressor features an optimal Pressure Lubricated design with Factory Fill ChampLub 500. With dimensions of 38" x 27" x 33" and a weight of 600 lb, it offers a bore diameter of 4.25" and stroke of 4.50". This compressor boasts a pressure range of 25 inHg to 350 psig, 40 hp motor power, and is constructed with durable cast iron. It complies with industry standards such as CAGI, Energy Star, and ISO 9001:2008, ensuring top-tier quality for institutional applications.
Product Specifications
Compressor Specifications Discharge Pressure
0 to 350 psig
Compressor Specifications Suction Pressure Range
1 to 140 psig
Dimensions Bore Diameter
4.25 in | 108 mm
Dimensions Discharge Port Design
NPT
Dimensions Height
33 in | 838 mm
Dimensions Inlet Port Design
NPT
Dimensions Length
38 in | 965 mm
Dimensions Stroke
4.50 in | 114 mm
Dimensions Suction And Discharge Pipe Size
2 in
Dimensions Weight
600 lb | 272 kg
Dimensions Width
27 in | 686 mm
Lubrication
Superior lubrication is accomplished through a gear driven oil pump powered by the crankshaft.Pressurized system ensures complete lubrication to the crankshaft, connecting rods, bearings and piston pins.Full flow, spin-on oil filter ensures impurities are removed before the lubricant contacts any internal components.Oil pressure gauge is conveniently mounted to display the oil pressure.
Note
Consult factory for sizing and technical information.
Specifications Construction Material
Cast Iron
Specifications Industry Standardscertifications
Compressed Air and Gas Institute (CAGI) | Energy Star Partner | ISO 9001:2008
Specifications Motor Power
40 hp | 30 kW
Specifications Pressure
25 inHg to 350 psig | 6.9 to 17.24 bar
Standard Features

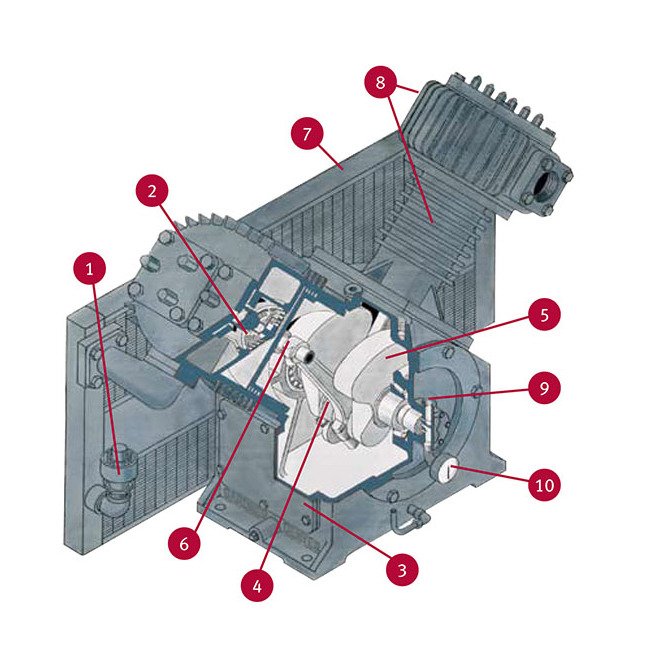

ASME pressure relief valve protects the intercooler and first stage from over pressure.Suction unloading valves (where applicable) provide load less starting and stopping as well as quick response to capacity demands.Removable hand-hole plate allows easy access to the internal running gear.Tri-Metal insert bearings are two-piece for quick and easy replacement.Counterbalanced crankshaft assures smooth operation.Replaceable piston pin bearings are very economical when replacement becomes necessary.Deep-finned cylinders and heads quickly dissipate the heat of compression.Crankshaft ends are supported by large tapered roller bearings for smooth operation and long life.Oil pressure gauge assures the operator of lubrication system integrity.The cylinders and crankcase are built of industrial strength cast iron materials.Continuous Operation

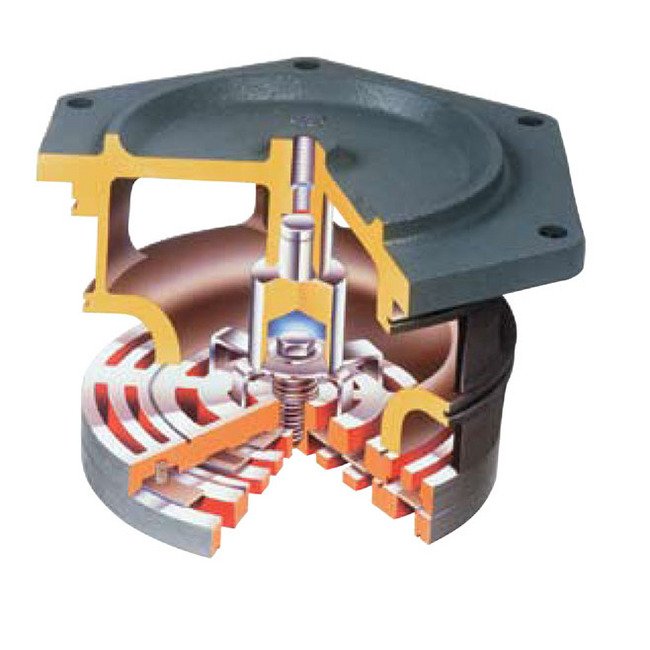

Valves
Concentric ring design incorporates both the inlet and outlet valves in one assembly.Designed to give 100% exposure to the air flow for maximum efficiency (i.e. more CFM per HP).Discs and springs are made of AISI 420 stainless steel to give dependable corrosion-free and fatigue-free service life.
