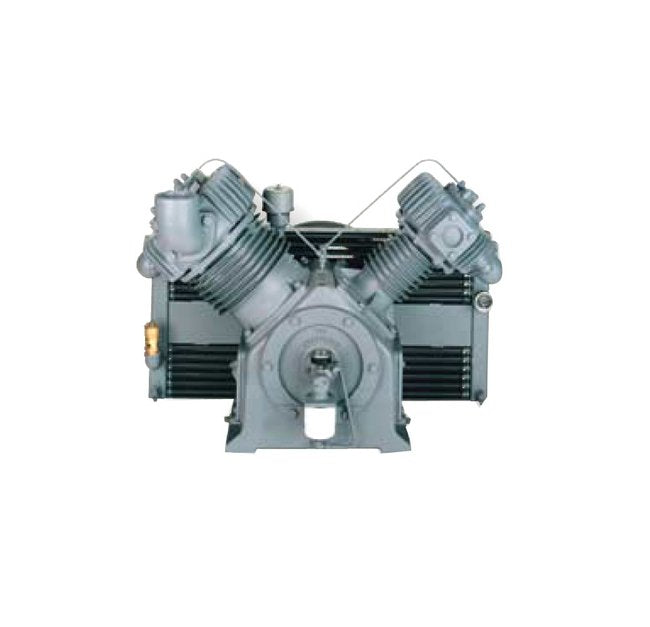

The AVLAVCAA Two Stage Reciprocating Compressor from the A Series is a high-performance solution designed for a wide range of industrial operations. Constructed with durable cast iron materials, this compressor offers pressure lubrication and comes factory-filled with ChampLub 500. With superior lubrication through a gear-driven oil pump system, concentric ring valves for maximum efficiency, and standard features like ASME pressure relief valve and suction unloading valves, this compressor ensures reliable and efficient operation. Meeting industry standards such as Compressed Air and Gas Institute (CAGI), ISO 9001:2008, and being an Energy Star Partner, it's an ideal choice for institutional and government procurement needs.
Product Specifications
Compressor Specifications Capacity At 100 Psig Pressure And 1106
116 ft³/min | 3.29 m³/min
Compressor Specifications Capacity At 100 Psig Pressure And 968
101 ft³/min | 2.86 m³/min
Compressor Specifications Capacity At 125 Psig Pressure And 1014
105 ft³/min | 2.97 m³/min
Compressor Specifications Capacity At 125 Psig Pressure And 922
96.5 ft³/min | 2.73 m³/min
Compressor Specifications Capacity At 175 Psig Pressure And 830
85 ft³/min | 2.41 m³/min
Compressor Specifications Capacity At 175 Psig Pressure And 968
99 ft³/min | 2.80 m³/min
Compressor Specifications Capacity At 250 Psig Pressure And 784
78 ft³/min | 2.21 m³/min
Compressor Specifications Capacity At 250 Psig Pressure And 876
87 ft³/min | 2.46 m³/min
Compressor Specifications Pressure At 1014 Rpm Speed And 30 Hp P
125 psig | 8.62 bar
Compressor Specifications Pressure At 1106 Rpm Speed And 30 Hp P
100 psig | 6.90 bar
Compressor Specifications Pressure At 784 Rpm Speed And 25 Hp Po
250 psig | 17.24 bar
Compressor Specifications Pressure At 830 Rpm Speed And 25 Hp Po
175 psig | 12.07 bar
Compressor Specifications Pressure At 876 Rpm Speed And 30 Hp Po
250 psig | 17.24 bar
Compressor Specifications Pressure At 922 Rpm Speed And 25 Hp Po
125 psig | 8.62 bar
Compressor Specifications Pressure At 968 Rpm Speed And 25 Hp Po
100 psig | 6.90 bar
Compressor Specifications Pressure At 968 Rpm Speed And 30 Hp Po
175 psig | 12.07 bar
Compressor Specifications Speed At 25 Hp 19 Kw Power
784 rpm | 830 rpm | 922 rpm | 968 rpm
Compressor Specifications Speed At 30 Hp 22 Kw Power
876 rpm | 968 rpm | 1014 rpm | 1106 rpm
Dimensions Bore Diameter
4.25 in | 8.00 in | 108 mm | 203 mm
Dimensions Discharge Port Design
NPT
Dimensions Height
33 in | 838 mm
Dimensions Inlet Port Design
NPT
Dimensions Length
40 in | 1016 mm
Dimensions Stroke
4.50 in | 114 mm
Dimensions Suction And Discharge Pipe Size
3 in
Dimensions Weight
680 lb | 308 kg
Dimensions Width
27 in | 686 mm
Lubrication

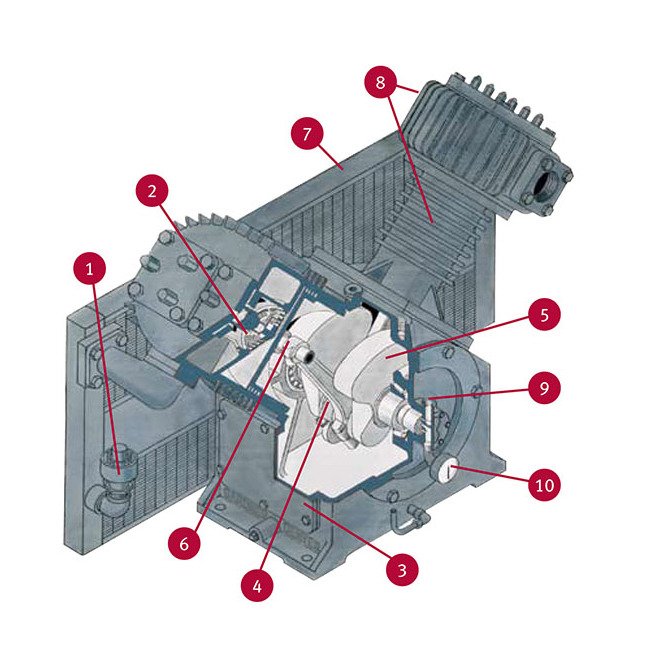

Superior lubrication is accomplished through a gear driven oil pump powered by the crankshaft.Pressurized system ensures complete lubrication to the crankshaft, connecting rods, bearings and piston pins.Full flow, spin-on oil filter ensures impurities are removed before the lubricant contacts any internal components.Oil pressure gauge is conveniently mounted to display the oil pressure.
Specifications Construction Material
Cast Iron
Specifications Industry Standardscertifications
Compressed Air and Gas Institute (CAGI) | Energy Star Partner | ISO 9001:2008
Specifications Motor Power
25 hp | 30 hp | 19 kW | 22 kW
Specifications Pressure
25 inHg to 350 psig | 6.9 to 17.24 bar
Standard Features
ASME pressure relief valve protects the intercooler and first stage from over pressure.Suction unloading valves (where applicable) provide load less starting and stopping as well as quick response to capacity demands.Removable hand-hole plate allows easy access to the internal running gear.Tri-Metal insert bearings are two-piece for quick and easy replacement.Counterbalanced crankshaft assures smooth operation.Replaceable piston pin bearings are very economical when replacement becomes necessary.Generously sized intercooler provides maximum cooling for the most efficient operation and low power consumption.Deep-finned cylinders and heads quickly dissipate the heat of compression.Crankshaft ends are supported by large tapered roller bearings for smooth operation and long life.Oil pressure gauge assures the operator of lubrication system integrity.The cylinders and crankcase are built of industrial strength cast iron materials.Continuous Operation
Valves

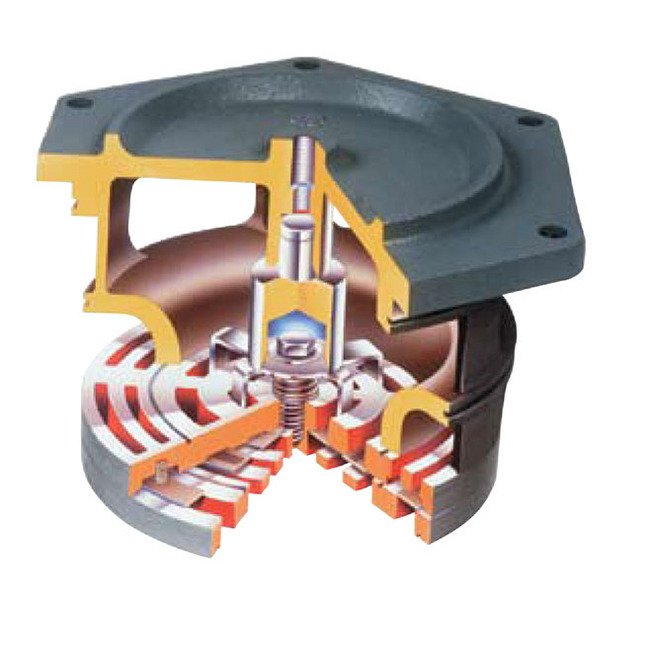

Concentric ring design incorporates both the inlet and outlet valves in one assembly.Designed to give 100% exposure to the air flow for maximum efficiency (i.e. more CFM per HP).Discs and springs are made of AISI 420 stainless steel to give dependable corrosion-free and fatigue-free service life.
