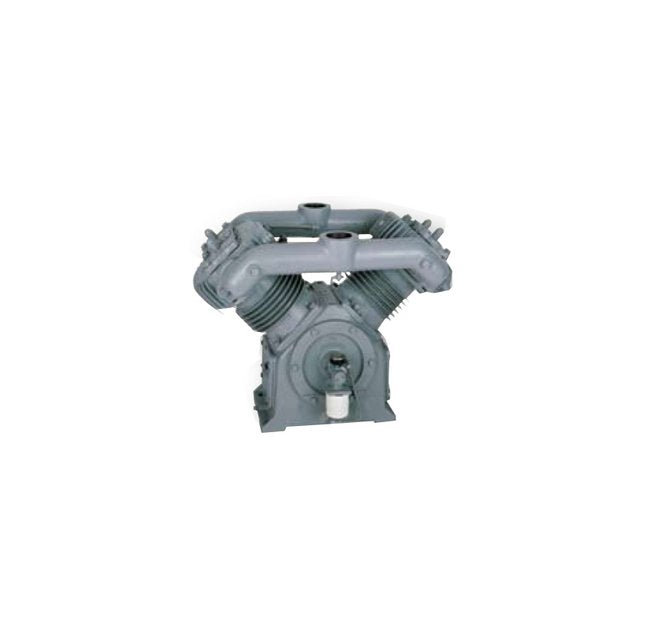

The AVLEKCAA Single Stage Vacuum Pump is a robust solution from the A Series Reciprocating Compressors lineup, designed for optimal performance and reliability in a wide range of operations. Featuring a bore diameter of 7.50 inches and a stroke of 4.50 inches, this vacuum pump offers a sturdy construction with a cast iron body, meeting industry standards such as Compressed Air and Gas Institute (CAGI), Energy Star Partner, and ISO 9001:2008. With a pressure range of 25 inHg to 350 psig and motor power options of 5.6 hp, 7.5 hp, and 10 kW, this vacuum pump delivers consistent and efficient performance. The lubrication system ensures superior oil distribution and component protection, while the concentric ring valve design enhances airflow efficiency for maximum productivity.
Product Specifications
Dimensions Bore Diameter
7.50 in | 191 mm
Dimensions Discharge Port Design
NPT
Dimensions Height
33 in | 838 mm
Dimensions Inlet Port Design
NPT
Dimensions Length
38 in | 965 mm
Dimensions Stroke
4.50 in | 114 mm
Dimensions Suction And Discharge Pipe Size
3 in
Dimensions Weight
600 lb | 272 kg
Dimensions Width
27 in | 686 mm
Lubrication
Superior lubrication is accomplished through a gear driven oil pump powered by the crankshaft.Pressurized system ensures complete lubrication to the crankshaft, connecting rods, bearings and piston pins.Full flow, spin-on oil filter ensures impurities are removed before the lubricant contacts any internal components.Oil pressure gauge is conveniently mounted to display the oil pressure.
Specifications Construction Material
Cast Iron
Specifications Industry Standardscertifications
Compressed Air and Gas Institute (CAGI) | Energy Star Partner | ISO 9001:2008
Specifications Motor Power
5.6 hp | 7.5 hp | 10 kW | 7.5 kW
Specifications Pressure
25 inHg to 350 psig | 6.9 to 17.24 bar
Standard Features

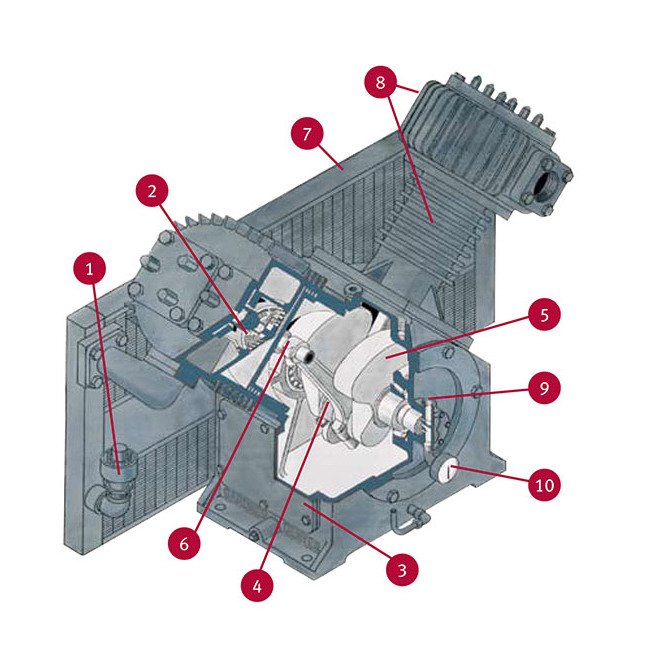

ASME pressure relief valve protects the intercooler and first stage from over pressure.Suction unloading valves (where applicable) provide load less starting and stopping as well as quick response to capacity demands.Removable hand-hole plate allows easy access to the internal running gear.Tri-Metal insert bearings are two-piece for quick and easy replacement.Counterbalanced crankshaft assures smooth operation.Replaceable piston pin bearings are very economical when replacement becomes necessary.Deep-finned cylinders and heads quickly dissipate the heat of compression.Crankshaft ends are supported by large tapered roller bearings for smooth operation and long life.Oil pressure gauge assures the operator of lubrication system integrity.The cylinders and crankcase are built of industrial strength cast iron materials.Continuous Operation
Vacuum Specifications Capacity At 870 Rpm Speed And 75 To 10 Hp
62 ft³/min | 122 ft³/min | 146 ft³/min | 160 ft³/min | 169 ft³/min | 1.75 m³/min | 3.46 m³/min | 4.13 m³/min | 4.53 m³/min | 4.79 m³/min
Vacuum Specifications Speed At 75 To 10 Hp 56 To 75 Kw Power
870 rpm
Vacuum Specifications Vacuum At 122 Ftmin Capacity And 870 Rpm S
20 inHg | 508 mmHg
Vacuum Specifications Vacuum At 146 Ftmin Capacity And 870 Rpm S
15 inHg | 381 mmHg
Vacuum Specifications Vacuum At 160 Ftmin Capacity And 870 Rpm S
10 inHg | 254 mmHg
Vacuum Specifications Vacuum At 169 Ftmin Capacity And 870 Rpm S
5 inHg | 127 mmHg
Vacuum Specifications Vacuum At 62 Ftmin Capacity And 870 Rpm Sp
25 inHg | 635 mmHg

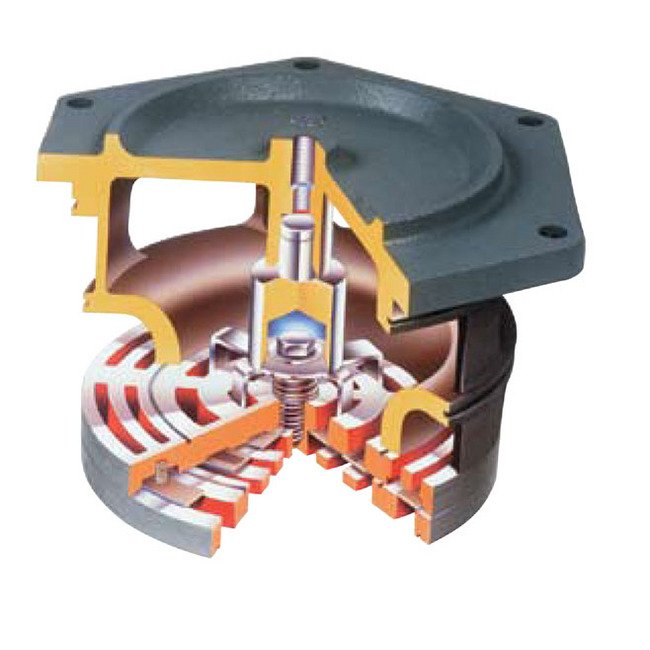

Valves
Concentric ring design incorporates both the inlet and outlet valves in one assembly.Designed to give 100% exposure to the air flow for maximum efficiency (i.e. more CFM per HP).Discs and springs are made of AISI 420 stainless steel to give dependable corrosion-free and fatigue-free service life.
