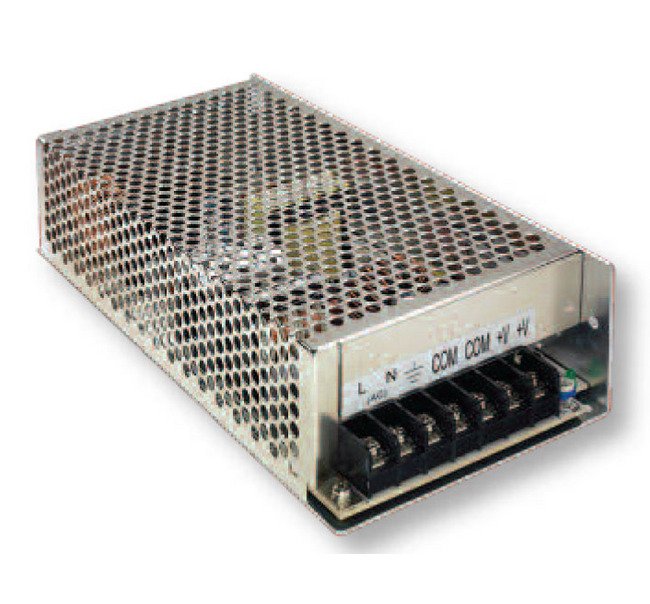

The AWSP 150 Series is a reliable 150 Watt Single Output Enclosed Switching Power Supply designed for versatile applications. With a PFC feature ensuring high efficiency, this power supply offers precise voltage regulation, low ripple and noise, and robust protections against over current and over voltage. Its compact design, convection cooling, and wide operating temperature range make it ideal for various environments. UL safety approval and EMC compliance ensure reliability and performance.
Product Specifications
Connector Types Input Terminal
Screw
Connector Types Output Terminal
Screw
Emc Safety Specifications Emc Emissions
EN55022, VCCI,CISPR22 Class B (Conducted & Radiated); IEC-61000-4-2, 61000-4-4, 61000-4-5, 61000-4-11
Emc Safety Specifications Input Ground Dielectric Strength
2.5 kVAC / 1 min
Emc Safety Specifications Input Output Dielectric Strength
3 kVAC / 1 min
Emc Safety Specifications Output Ground Insulation Resistance
>100 mOhm / 500 VDC
Emc Safety Specifications Safety Approval
UL 60950 (UL File No: E204980)
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
10 to 95 % RH, non-condensing

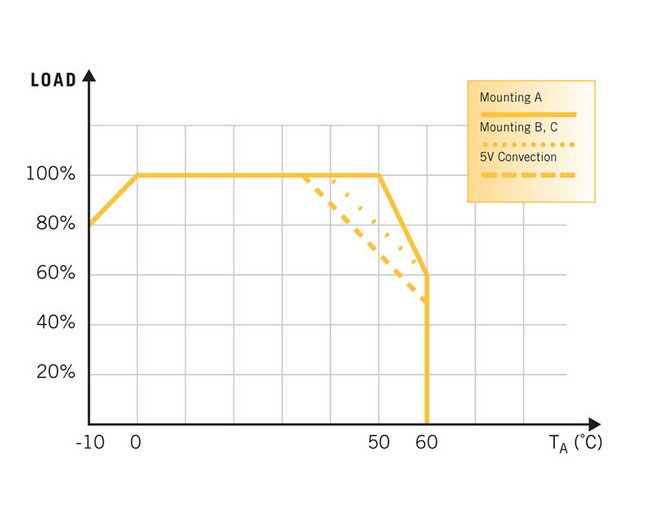

Environmental Specifications Operating Temperature
0 to +60 ºC Full Load
Environmental Specifications Reliability
>144,000 Hours MTBF
Environmental Specifications Storage Temperature
-25 to +75 ºC
Environmental Specifications Vibration
10 to 55 Hz, 2G 1 min/cycle, period of 60 min, each axis.

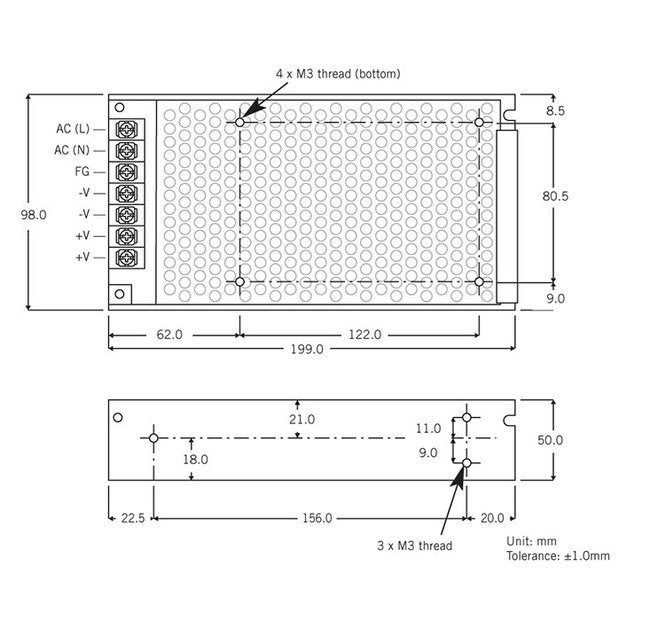

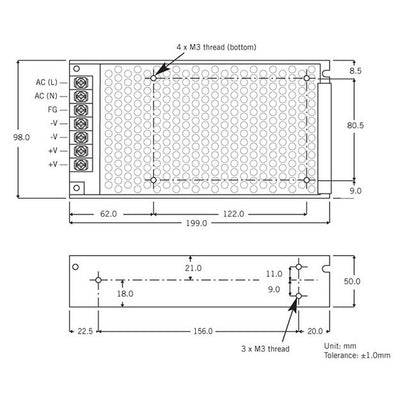

General Specifications Height H
1.65 in | 42 mm
General Specifications Length L
7.83 in | 199 mm
General Specifications Switching Frequency
134 kHz (PWM) | 687 kHz (PFC)
General Specifications Warranty
2 years
General Specifications Weight
560 g
General Specifications Width W
3.86 in | 98 mm
Input Characteristics Input Frequency Range
47 - 63 Hz
Input Characteristics Input Voltage Ac
88 to 264 V
Input Characteristics Maximum Input Current
2.7 A
Input Characteristics Maximum Inrush Current At 110 220 Vac Cold
20 A | 40 A
Output Characteristics Adjustable Output Range
±10 %
Output Characteristics Line Regulation
±0.5 %
Output Characteristics Load Regulation
±1.0 %
Output Characteristics Maximum Rise Up Time At 230 Vac
600 ms
Output Characteristics Minimum Hold Up Time 100 Load At 220 Vac
20 ms
Output Characteristics Minimum Load
No
Output Characteristics Over Current Protection Power Cycle Reset
>105 to 150 %
Output Characteristics Over Voltage Protection
>125%
Output Characteristics Ripple And Noise
5/12/24 V = 150/180/240 mV
Specifications Current
12.5 A
Specifications Efficiency
80 %
Specifications Voltage
12 V
