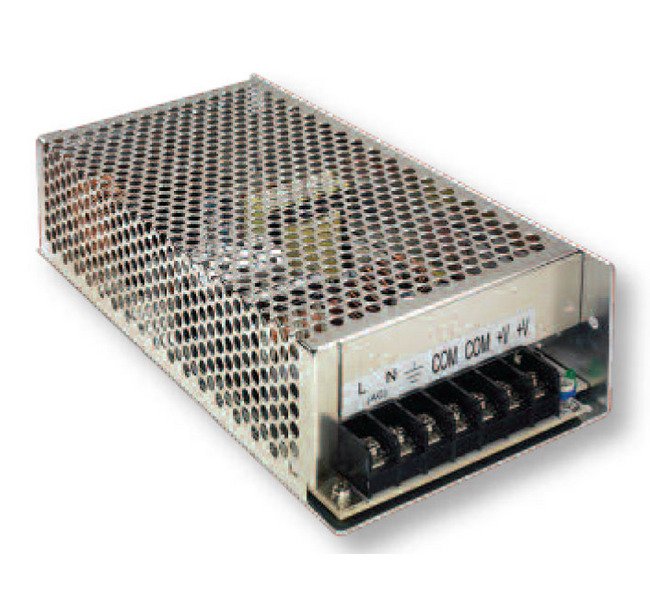

AWSP 150W Single Output Switching Power Supply
AWSP 150W Single Output Switching Power Supply
SKU:POW-7dada8
Power up your systems with the AWSP 150W Single Output Switching Power Supply, offering 150W of reliable performance with 83% efficiency.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
AWSP 150W Single Output Switching Power Supply
$59.99
Quantity: 1
Claim Your Seller Account
AWSP 150W Single Output Switching Power Supply
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AWSP 150 Series features a 150 Watt single output enclosed switching power supply designed for critical applications where efficiency and reliability are paramount. With a voltage of 24V and current of 6.3A, this power supply boasts an impressive 83% efficiency. It meets stringent EMC emissions standards like EN55022, VCCI, CISPR22 Class B, and safety approval with UL 60950 certification. The compact design and durable construction make it ideal for both general purpose and industrial applications.
Ready to Grow Without Cash Flow Constraints?
Product Specifications
Connector Types Input Terminal
Screw
Connector Types Output Terminal
Screw
Emc Safety Specifications Emc Emissions
EN55022, VCCI,CISPR22 Class B (Conducted & Radiated); IEC-61000-4-2, 61000-4-4, 61000-4-5, 61000-4-11
Emc Safety Specifications Input Ground Dielectric Strength
2.5 kVAC / 1 min
Emc Safety Specifications Input Output Dielectric Strength
3 kVAC / 1 min
Emc Safety Specifications Output Ground Insulation Resistance
>100 mOhm / 500 VDC
Emc Safety Specifications Safety Approval
UL 60950 (UL File No: E204980)
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
10 to 95 % RH, non-condensing
Environmental Specifications Operating Temperature

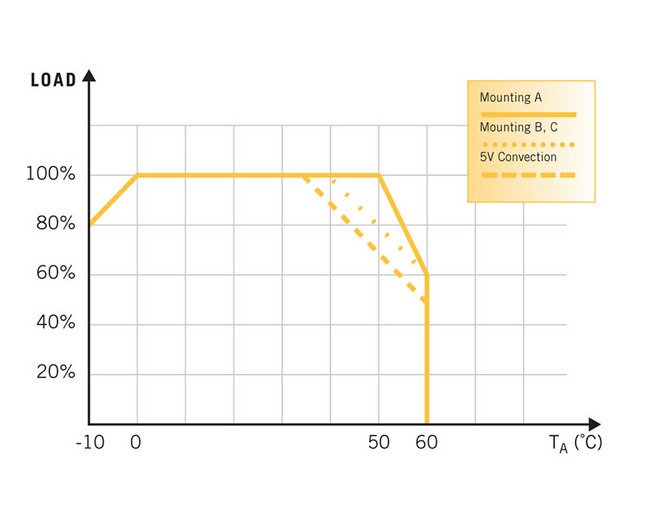

0 to +60 ºC Full Load
Environmental Specifications Reliability
>144,000 Hours MTBF
Environmental Specifications Storage Temperature
-25 to +75 ºC
Environmental Specifications Vibration
10 to 55 Hz, 2G 1 min/cycle, period of 60 min, each axis.

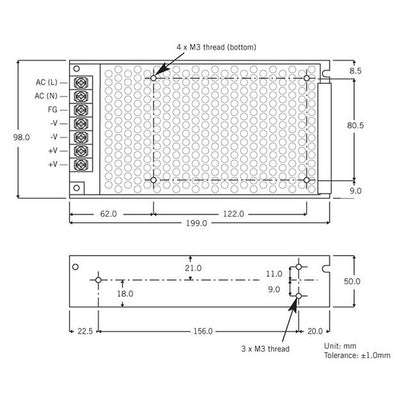

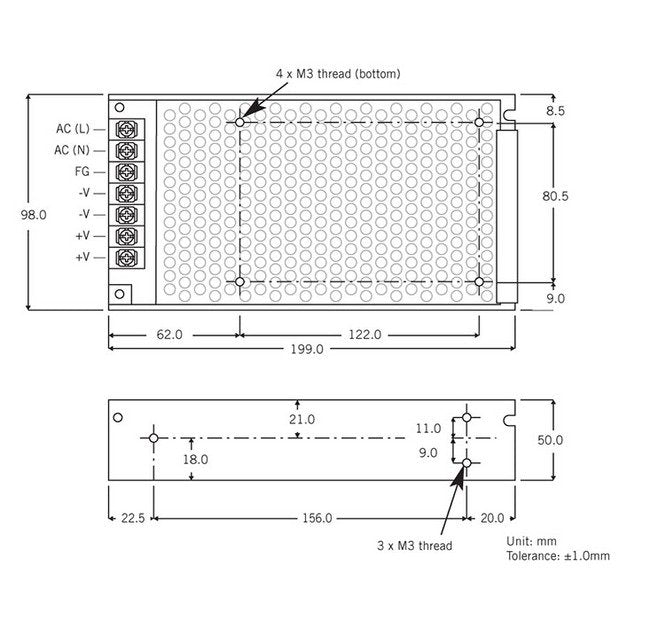

General Specifications Height H
1.65 in | 42 mm
General Specifications Length L
7.83 in | 199 mm
General Specifications Switching Frequency
134 kHz (PWM) | 687 kHz (PFC)
General Specifications Warranty
2 years
General Specifications Weight
560 g
General Specifications Width W
3.86 in | 98 mm
Input Characteristics Input Frequency Range
47 - 63 Hz
Input Characteristics Input Voltage Ac
88 to 264 V
Input Characteristics Maximum Input Current
2.7 A
Input Characteristics Maximum Inrush Current At 110 220 Vac Cold
20 A | 40 A
Output Characteristics Adjustable Output Range
±10 %
Output Characteristics Line Regulation
±0.5 %
Output Characteristics Load Regulation
±1.0 %
Output Characteristics Maximum Rise Up Time At 230 Vac
600 ms
Output Characteristics Minimum Hold Up Time 100 Load At 220 Vac
20 ms
Output Characteristics Minimum Load
No
Output Characteristics Over Current Protection Power Cycle Reset
>105 to 150 %
Output Characteristics Over Voltage Protection
>125%
Output Characteristics Ripple And Noise
5/12/24 V = 150/180/240 mV
Specifications Current
6.3 A
Specifications Efficiency
83 %
Specifications Voltage
24 V
