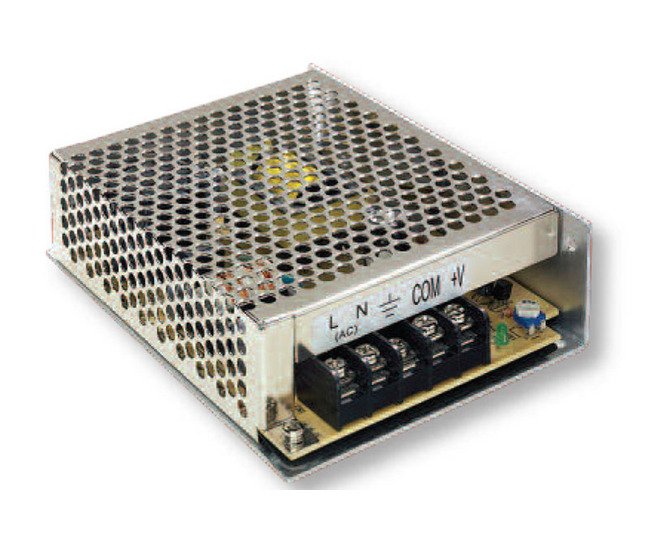

AWSP 40 Series 40W Single Output Enclosed Switching Power Supply
AWSP 40 Series 40W Single Output Enclosed Switching Power Supply
SKU:POW-049ecf
High-efficiency 40W enclosed power supply with adjustable output, over-current and over-voltage protection, UL safety compliance, and 2-year warranty.
Regular price
$45.99
Regular price
Sale price
$45.99
Unit price
per
Initiate Order
AWSP 40 Series 40W Single Output Enclosed Switching Power Supply
$45.99
Quantity: 1
Claim Your Seller Account
AWSP 40 Series 40W Single Output Enclosed Switching Power Supply
$45.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AWSP 40 Series 40W Single Output Enclosed Switching Power Supply is a reliable and efficient solution for powering various devices, designed for both general purpose applications and institutional needs. With an input voltage range of 85 to 264 V, this power supply offers stable output characteristics, including adjustable output range, over-current and over-voltage protection, and excellent load and line regulation. Its compact design, convection cooling, and high reliability make it suitable for diverse environments. This power supply complies with UL 60950 safety standards, EN55022 EMC emissions, and offers a 2-year warranty for added assurance.
Product Specifications
Connector Types Input Terminal
Screw
Connector Types Output Terminal
Screw
Emc Safety Specifications Emc Emissions
EN55022,VCCI,CISPR22 Class B (Conducted & Radiated); IEC-61000-4-2, 61000-4-4, 61000-4-5, 61000-4-11
Emc Safety Specifications Input Ground Dielectric Strength
2.5 kVAC / 1 min
Emc Safety Specifications Input Output Dielectric Strength
3 kVAC / 1 min
Emc Safety Specifications Output Ground Insulation Resistance
>100 mOhm / 500 VDC
Emc Safety Specifications Safety Approval
UL 60950 (UL File No: E204980)
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
10 to 95 % RH, non-condensing

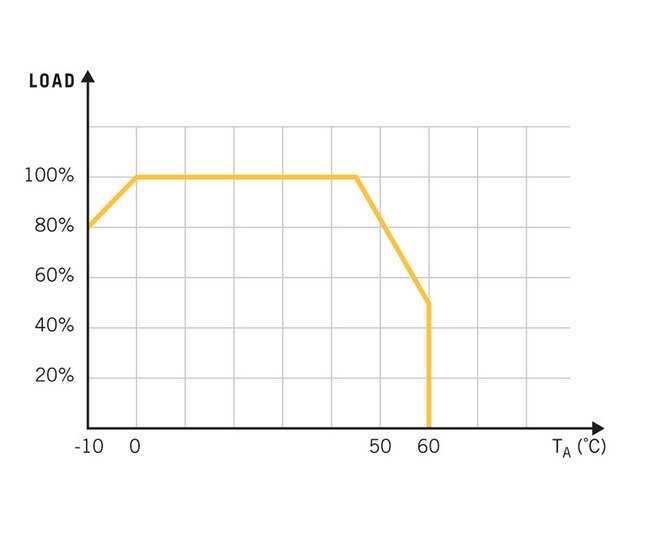

Environmental Specifications Operating Temperature
0 to +45 ºC Full Load, derate 3.33%/ºC up to 60 ºC
Environmental Specifications Reliability
>176,000 Hours MTBF
Environmental Specifications Storage Temperature
-25 to +75 ºC
Environmental Specifications Vibration
10 to 55 Hz, 2G 1 min/cycle, period of 60 min, each axis.

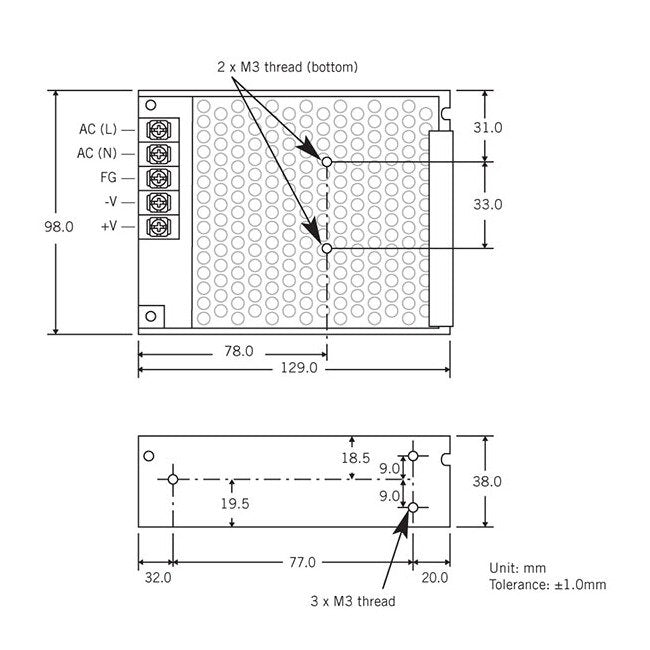

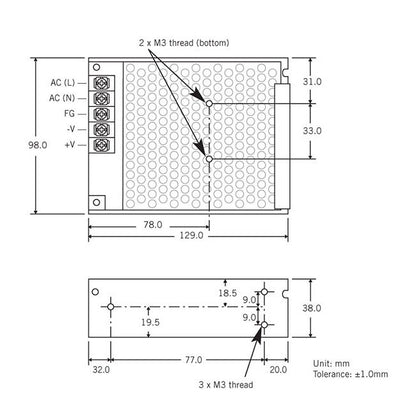

General Specifications Height H
1.50 in | 38 mm
General Specifications Length L
5.08 in | 129 mm
General Specifications Switching Frequency
50 kHz
General Specifications Warranty
2 years
General Specifications Weight
360 g
General Specifications Width W
3.86 in | 98 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
85 to 264 V
Input Characteristics Maximum Input Current
1.0 A
Input Characteristics Maximum Inrush Current At 110 220 Vac Cold
20 A | 40 A
Output Characteristics Adjustable Output Range
±10 %
Output Characteristics Line Regulation
±0.5 %
Output Characteristics Load Regulation
±1.0 %
Output Characteristics Maximum Rise Up Time At 220 Vac
300 ms
Output Characteristics Minimum Hold Up Time 100 Load At 220 Vac
30 ms
Output Characteristics Minimum Load
No
Output Characteristics Over Current Protection Power Cycle Reset
>120 %
Output Characteristics Over Voltage Protection Zener Diode
>110 %
Output Characteristics Ripplenoise Pk Pk 20mhz
5/12/24 V = 75/100/100 mV
Specifications Current
1.7 A
Specifications Efficiency
80 %
Specifications Voltage
24 V
