AWSP 60 Series Single Output Power Supply
AWSP 60 Series Single Output Power Supply
SKU:POW-76aa9f
Reliable 60W Single Output Power Supply with adjustable range, over-current and over-voltage protection, and EMC/safety approvals.
Regular price
$59.99
Regular price
Sale price
$59.99
Unit price
per
Initiate Order
AWSP 60 Series Single Output Power Supply
$59.99
Quantity: 1
Claim Your Seller Account
AWSP 60 Series Single Output Power Supply
$59.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.

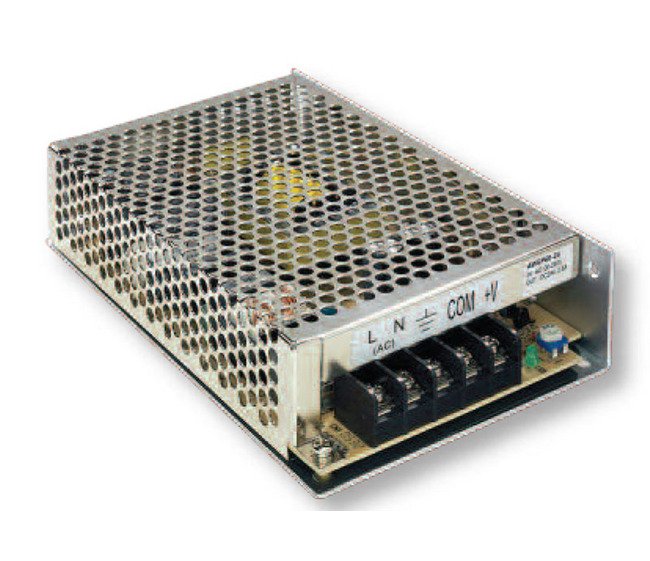

The AWSP 60 Series 60W Single Output Enclosed Switching Power Supply is a reliable and efficient solution for a wide range of applications. With a voltage of 5.0V and current of 12A, this power supply offers a high level of performance and stability. It features an adjustable output range of ±10% and over-current and over-voltage protection for enhanced safety. Designed with EMC and safety approvals including UL 60950, this power supply meets rigorous industry standards. Its compact design, convection cooling, and high reliability make it an ideal choice for both consumer and institutional buyers.
Product Specifications
Connector Types Input Terminal
Screw
Connector Types Output Terminal
Screw
Emc Safety Specifications Emc Emissions
EN55022,VCCI,CISPR22 Class B (Conducted & Radiated); IEC-61000-4-2, 61000-4-4, 61000-4-5, 61000-4-11
Emc Safety Specifications Input Ground Dielectric Strength
2.5 kVAC / 1 min
Emc Safety Specifications Input Output Dielectric Strength
3 kVAC / 1 min
Emc Safety Specifications Output Ground Insulation Resistance
>100 mOhm / 500 VDC
Emc Safety Specifications Safety Approval
UL 60950 (UL File No: E204980)
Environmental Specifications Cooling
Convection Cooled Operation
Environmental Specifications Humidity
10 to 95 % RH, non-condensing

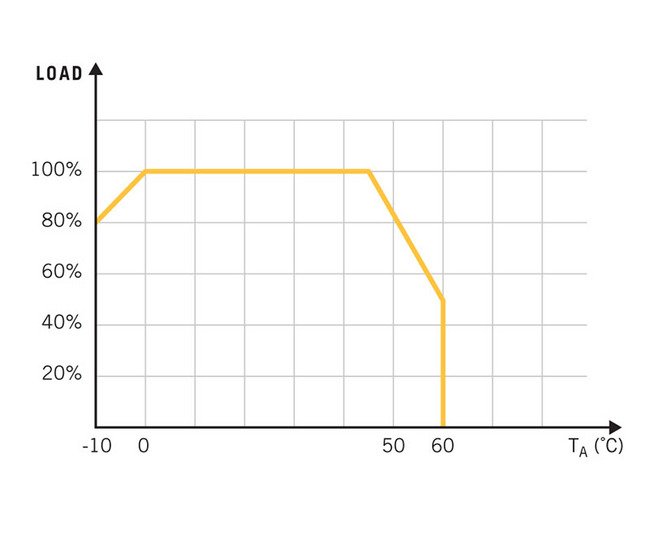

Environmental Specifications Operating Temperature
0 to +45 ºC Full Load, derate 3.33%/ºC up to 60 ºC
Environmental Specifications Reliability
>150,000 Hours MTBF
Environmental Specifications Storage Temperature
-25 to +75 ºC
Environmental Specifications Vibration
10 to 55 Hz, 2G 1 min/cycle, period of 60 min, each axis.

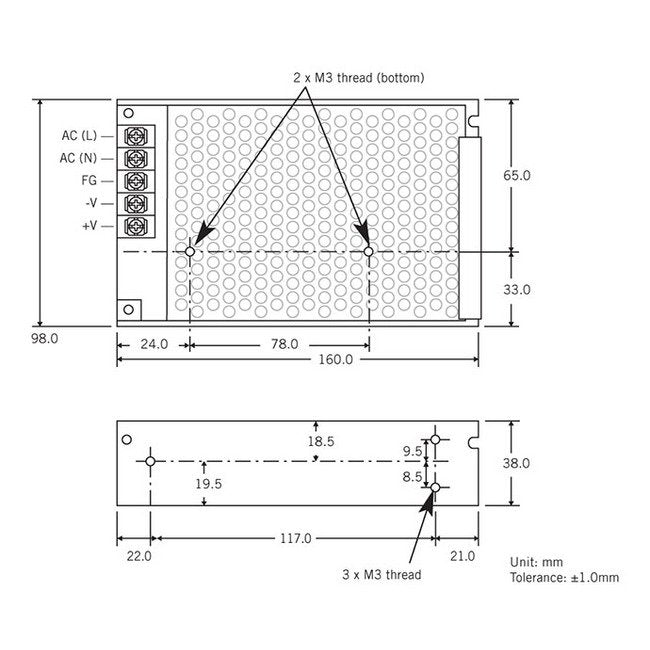

General Specifications Height H
1.50 in | 38 mm
General Specifications Length L
6.30 in | 160 mm
General Specifications Switching Frequency
45 kHz
General Specifications Warranty
2 years
General Specifications Weight
450 g
General Specifications Width W
3.86 in | 98 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
85 to 264 V
Input Characteristics Maximum Input Current
1.3 A
Input Characteristics Maximum Inrush Current At 110 220 Vac Cold
20 A | 40 A
Output Characteristics Adjustable Output Range
±10 %
Output Characteristics Line Regulation
±0.5 %
Output Characteristics Load Regulation
±1.0 %
Output Characteristics Maximum Rise Up Time At 220 Vac
300 ms
Output Characteristics Minimum Hold Up Time 100 Load At 220 Vac
30 ms
Output Characteristics Minimum Load
No
Output Characteristics Over Current Protection Power Cycle Reset
>120 %
Output Characteristics Over Voltage Protection Zener Diode
>110 %
Output Characteristics Ripplenoise Pk Pk 20mhz
5/12/24 V = 75/100/100 mV
Specifications Current
12 A
Specifications Efficiency
73 %
Specifications Voltage
5.0 V
