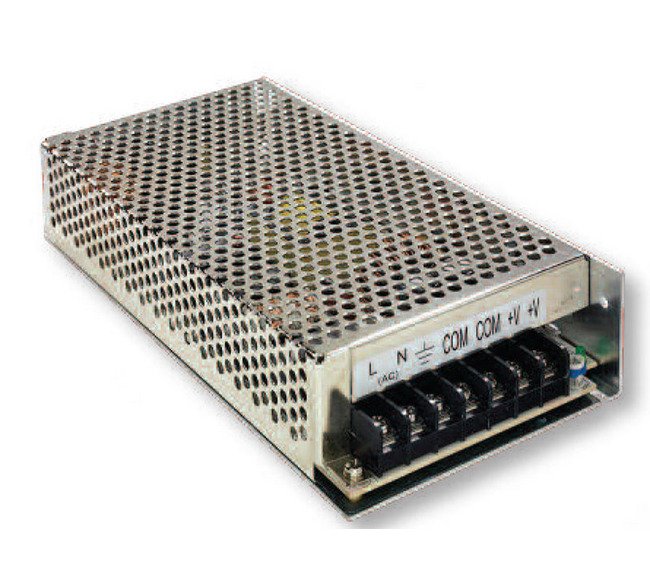

AWSP100 Series 100W Single Output Switching Power Supply
AWSP100 Series 100W Single Output Switching Power Supply
SKU:POW-43fa54
Reliable 100W single output power supply with 24V voltage, ideal for general & institutional applications.
Regular price
$89.99
Regular price
Sale price
$89.99
Unit price
per
Initiate Order
AWSP100 Series 100W Single Output Switching Power Supply
$89.99
Quantity: 1
Claim Your Seller Account
AWSP100 Series 100W Single Output Switching Power Supply
$89.99
Quantity: 1
Delivery via Maden
Expect your order to arrive on time.
Secure Payments
All orders are processed through a secure, PCI-compliant checkout.
The AWSP100 Series 100W Single Output Enclosed Switching Power Supply is a reliable and efficient solution designed for both general purpose and institutional applications. With a voltage of 24V and current of 4.2A, this power supply offers high efficiency at 84%. Featuring input characteristics such as wide input voltage range (88 to 264V) and high power factor (>0.92), it ensures stable and smooth power delivery. Additionally, it includes advanced output characteristics like over current and over voltage protection, ensuring the safety of connected devices. This power supply meets stringent industry standards for EMC emissions and safety approvals, making it suitable for various procurement requirements.
Product Specifications
Connector Types Input Terminal
Screw
Connector Types Output Terminal
Screw
Emc Safety Specifications Emc Emissions
Conforms to EN55022,VCCI,CISPR22 Class B (Conducted & Radiated); IEC-61000-4-2, 61000-4-4, 61000-4-5, 61000-4-11
Emc Safety Specifications Safety Approval
UL 60950 (UL File No: E204980)
Environmental Specifications Humidity
20 to 90 % RH, non-condensing

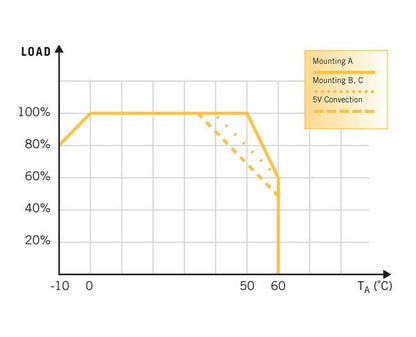

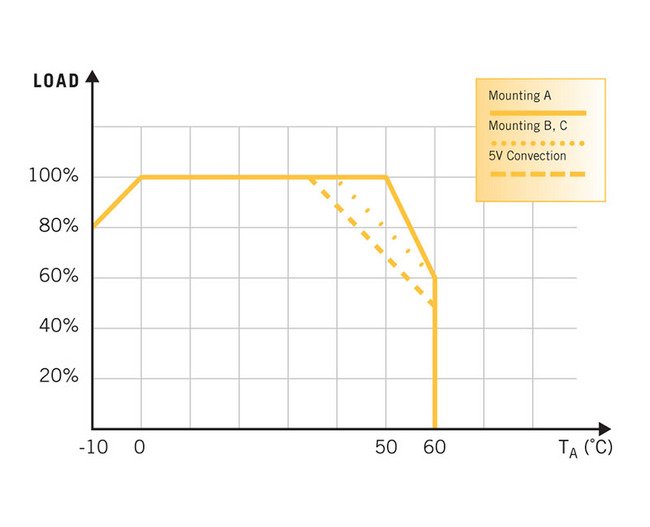

Environmental Specifications Operating Temperature
0 to 60 ºC Full Load
Environmental Specifications Reliability
>167,000 Hours MTBF
Environmental Specifications Storage Temperature
-25 to +75 ºC
Environmental Specifications Vibration
10 to 55 Hz, 2G 1 min/cycle, period of 60 min, each axis.
General Specifications Gross Weight
610 g

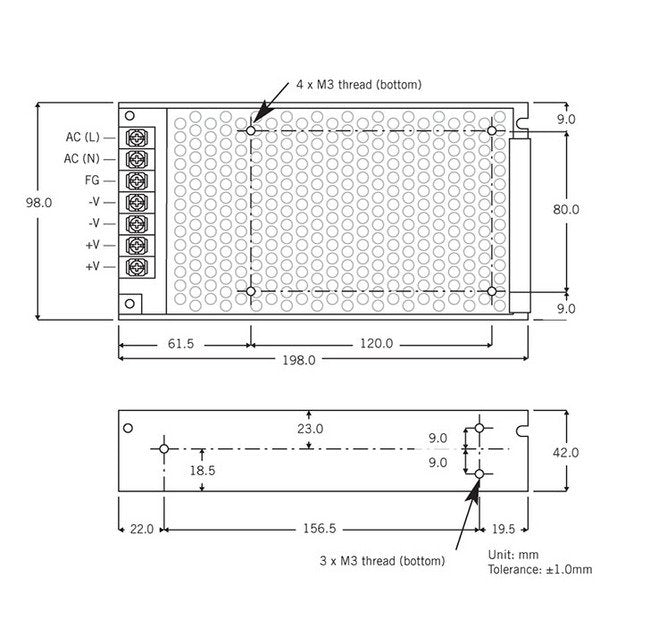

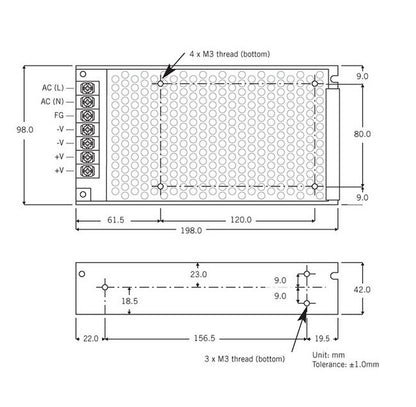

General Specifications Height H
1.65 in | 42 mm
General Specifications Length L
7.83 in | 199 mm
General Specifications Net Weight
560 g
General Specifications Switching Frequency
134 kHz (PWM) | 67 kHz (PFC)
General Specifications Warranty
2 years
General Specifications Width W
3.86 in | 98 mm
Input Characteristics Input Frequency Range
47 to 63 Hz
Input Characteristics Input Voltage Ac
88 to 264 V
Input Characteristics Maximum Input Current At Vin Rated
1.8 A
Input Characteristics Maximum Inrush Current At 110 220 Vac Cold
20 A | 40 A
Input Characteristics Power Factor
>0.92
Output Characteristics Adjustable Output Range
±10 %
Output Characteristics Line Regulation
±0.5 %
Output Characteristics Load Regulation
±1.0 %
Output Characteristics Maximum Rise Up Time 100 Load At 230 Vac
600 ms
Output Characteristics Minimum Hold Up Time 100 Load At 230 Vac
20 ms
Output Characteristics Minimum Load
No
Output Characteristics Over Current Protection Power Cycle Reset
105 to 150 %
Output Characteristics Over Voltage Protection
125 to 145 %
Output Characteristics Ripple And Noise
100 mV
Output Characteristics Start Up Time At 230 Vac
300 ms
Specifications Cross Reference
S-100F-24
Specifications Current
4.2 A
Specifications Efficiency
84 %
Specifications Voltage
24 V
